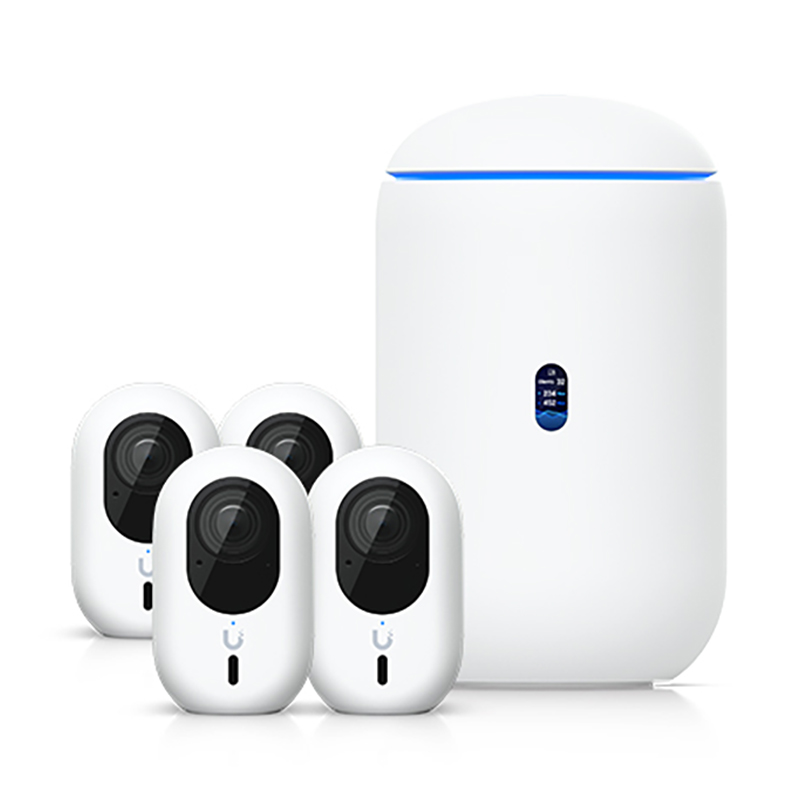

DREAM ROUTER 7 |
|
Dimensions | ⌀110 x 184.1 mm (⌀4.3 x 7.3") |
UniFi Application Suite | Network: ✓ Protect: ✓ Access: ✓ Talk: ✓ Connect: ✓ |
Managed UniFi Devices | 30+ |
Managed Cameras | (5) HD (2) 2K (1) 4K |
Simultaneous Users Connected | 300+ |
Max. WAN Port Count | 4 |
Default WAN Ports | (1) 10G SFP+ (1) 2.5 GbE RJ45 |
Port Layout | 2.5 GbE RJ45: 4 (1 PoE) (2.5G/1G/100M/10M) 10G SFP+: 1 (10G/1G) |
IDS/IPS Throughput | 2.3 Gbps |
Form Factor | Compact desktop |
Coverage Area | 160 m² (1,750 ft²) |
Stateful Firewall | ✓ |
Application-Aware Layer 7 Firewall | ✓ |
DPI & Traffic Identification | ✓ |
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | ✓ |
Content Filtering | ✓ |
Intrusion Prevention (IPS/IDS) | ✓ |
Ad Blocking | ✓ |
IDS/IPS Signatures | 20,000+ with CyberSecure |
VLAN/Subnet-based Traffic Segmentation | ✓ |
License-Free SD-WAN | ✓ |
Site-to-Site VPN | Site Magic: ✓ IPsec: ✓ OpenVPN: ✓ |
VPN Server | Identity Endpoint One-Click VPN: ✓ Teleport Zero-Configuration VPN: ✓ WireGuard: ✓ OpenVPN: ✓ L2TP: ✓ |
VPN Client | OpenVPN: ✓ WireGuard: ✓ |
Multi-WAN Load Balancing | ✓ |
Dynamic Routing | OSPF: ✓ |
Advanced QoS | ✓ |
Multicast DNS (mDNS) | ✓ |
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | ✓ |
Integrated RADIUS Server | ✓ |
RADIUS over TLS (RadSec) | ✓ |
Additional Internet Failover with UniFi LTE Backup | ✓ |
Internet Quality and Outage Reporting | ✓ |
MAC Address Table Size | 2,000 |
Policy-based WAN and VPN Routing | ✓ |
Customizable DHCP Server | ✓ |
IPv6 ISP Support | ✓ |
IGMP Proxy | ✓ |
Virtual Network Override | ✓ |
WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
Throughput | 6 GHz: 5.7 Gbps 5 GHz: 4.3 Gbps 2.4 GHz: 688 Mbps |
MIMO | 6 GHz: 2 x 2 (DL/UL MU-MIMO) 5 GHz: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
Antenna Gain | 6 GHz: 6 dBi 5 GHz: 7 dBi 2.4 GHz: 5 dBi |
Max. TX Power | 6 GHz: 24 dBm 5 GHz: 26 dBm 2.4 GHz: 23 dBm |
Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
Max. BSSIDs | 4 per Radio |
Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
NVR Storage | Pre-installed 64GB microSD for NVR |
Expansion Slot | MicroSD Card |
PoE Budget | 15.4W |
Max. PoE Wattage per Port by PSE | PoE: 15.4W |
Voltage Range PoE Mode | 44-57V |
Max. Power Consumption | 26W (Excluding PoE output) |
Power Method | Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz |
Power Supply | AC/DC, Internal, 50W |
Supported Voltage Range | 100–240V AC |
Heat Dissipation | 89 BTU/hr (Excluding PoE Output) |
Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
System Memory | 3 GB |
Weight | 1.1 kg (2.4 lb) |
Enclosure Material | Polycarbonate |
LCM Display | 0.96" status display |
Management | Ethernet Bluetooth |
LEDs | System: ✓ |
Button | (1) Factory reset |
ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
Ambient Operating Humidity | 5 to 95% noncondensing |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC, Anatel: 05650-25-08356 |
VLAN | 802.1Q |
Guest Traffic Isolation | ✓ |
Application Requirements | UniFi Network: Version 9.0.108 and later |
G6 INSTANT |
|
Dimensions | 81.7 x 50.1 x 57.2 mm (3.2 x 2 x 2.3") |
IR Night Vision | 6 m (20 ft) |
Face Recognition | ✓ |
License Plate Recognition | ✓ |
Smart Detections (People, Vehicles, Animals) | ✓ |
Resolution | 4K |
Field of View | H: 109.9°, V: 56.7°, D: 134.1° |
Audio | Two-way audio |
Weatherproofing | IPX5 |
Tamper Resistance | IK04 |
Mounting | Wall mount accessory (Included) |
Networking Interface | 802.11 a/b/g/n/ac WiFi Bluetooth |
Video | Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR Max. Frame Rate: 30 FPS Resolution: 8MP 3840 x 2160 (16:9) |
Optics | Sensor: 1/1.8” 8MP Lens:Fixed focal length Night Mode: Built-in IR LED illumination and IR cut filter |
Max. Power Consumption | 7W |
Supported Voltage Range | 5V DC, 2A |
Power Method | 5V, 2A USB power adapter (Included) PoE to USB-C adapter (Not included) |
Processor | Quad-core Arm® Cortex®-A53 based chip |
Weight | 180 g (6.3 oz) |
Enclosure Material | Polycarbonate |
Mount Material | Polycarbonate |
Expansion Slot | MicroSD card |
Button | (1) Factory reset |
Cable | Cable Connector Type: USB Type-C to USB Type-C Cable Diameter: 3 mm (0.12") Cable Length: 2 m (6.6 ft) Jacket Material: Thermoplastic elastomer |
Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
Ambient Operating Humidity | 0 to 90% noncondensing |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC, SRRC |
