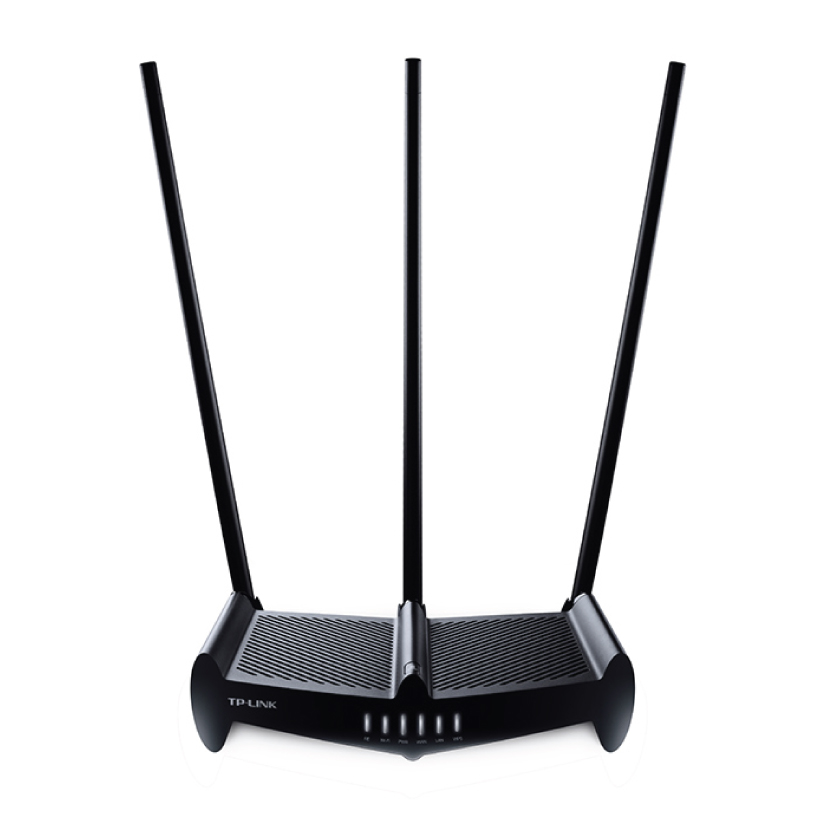

TP-Link TL-WR941HP 450Mbps High Power Wireless N Router
Superior Range – High power amplifiers and high-gain antennas provide enhanced wireless range up to 10,000 sq ft. Wall-Penetrating Wi-Fi – Enhanced Wi-Fi signal cuts through walls and obstacles, eliminating dead zones 3 Modes Functionality – Offers three wireless modes, including Router, Range Extender, and Access Point 450Mbps Wireless Speed – Ideal for video streaming, online gaming and VoIP
Specifications
HARDWARE FEATURES | INTERFACE | 4 10/100Mbps LAN Ports
1 10/100Mbps WAN Port | BUTTON | Wireless On/Off Button, RE Button, WPS Button
Reset Button, Power On/Off Button | EXTERNAL POWER SUPPLY | 12VDC / 1.5A | WIRELESS STANDARDS | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b | DIMENSIONS ( W X D X H ) | 9.0 x 7.5 x 1.9 in. (227.5 x 190 x 48.3mm) | ANTENNA | 3*9dBi Detachable Omni Directional Antenna
(RP-SMA) | COMPATIBILITY | NBN - Fibre to the Premises (FTTP)
NBN - Fibre to the Home (FTTH)
For further information on NBN connections please visit: http://www.nbnco.com.au/learn-about-the-nbn/network-technology.html | WIRELESS FEATURES | FREQUENCY | 2.4-2.4835GHz | SIGNAL RATE | 11n: Up to 450Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic) | RECEPTION SENSITIVITY | 450M: -71dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -91dBm@8% PER
6M: -89dBm@10% PER
1M: -97dBm@8% PER | TRANSMIT POWER | CE:<20dBm(2.4GHz)
FCC:<30dBm | WIRELESS FUNCTIONS | Enable/Disable Wireless Radio, Range Extend,
WMM, Wireless Statistics | WIRELESS | 64/128/152-bit WEP / WPA / WPA2,
WPA-PSK / WPA2-PSK | SOFTWARE FEATURES | QUALITY OF SERVICE | WMM, Bandwidth Control | WAN TYPE | Dynamic IP/Static IP/PPPoE/
PPTP/L2TP/BigPond | MANAGEMENT | Access Control
Local Management
Remote Management | DHCP | Server, Client, DHCP Client List,
Address Reservation | PORT FORWARDING | Virtual Server, Port Triggering, UPnP, DMZ | DYNAMIC DNS | DynDns, Comexe, NO-IP | VPN PASS-THROUGH | PPTP, L2TP, IPSec (ESP Head) | ACCESS CONTROL | Parental Control, Local Management Control,
Host List, Access Schedule, Rule Management | FIREWALL SECURITY | DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding | OTHERS | CERTIFICATION | CE, FCC, RoHS, NCC, BSMI | PACKAGE CONTENTS | 450Mbps Wireless N High Power Router
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
Technical Support Card | SYSTEM REQUIREMENTS | Microsoft® Windows 10/8.1/8/7, XP, MAC® OS,
NetWare®, UNIX® or Linux. | ENVIRONMENT | Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing | WARRANTY | Limited 3-Year Warranty
For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma |
|
