SPECIFICATIONS:
HARDWARE FEATURES | Interface | 3 10/100Mbps RJ45 LAN Ports
1 10/100Mbps RJ45 LAN/WAN Port
1 RJ11 Port | Button | WPS Button
RESET Button
Power ON/OFF Button | External Power Supply | 9VDC/0.6A | IEEE Standards | IEEE 802.3, 802.3u | VDSL2 Standards | ITU-T G.993.2
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP) | Dimensions ( W x D x H ) | 181.6 x 129.7 x 36.2mm | Antenna Type | Omni directional, Fixed | Antenna Gain | 2 x 5dBi |
WIRELESS FEATURES | Wireless Standards | IEEE 802.11b, 802.11g, 802.11n | Frequency | 2.400-2.4835GHz | Transmit Power | <20dBm(EIRP) | Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions, Wireless MAC Filtering |

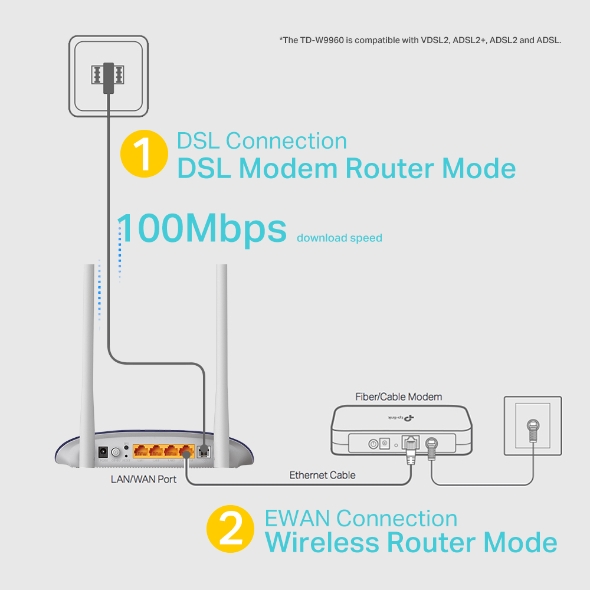

SOFTWARE FEATURES | Quality of Service | WMM, Bandwidth Control (IP QoS) | Security | NAT Firewall, SPI Firewall, DoS Protection, IP & MAC Binding, Service Filtering, Access Control, Parental Controls | Operating Modes | VDSL/ADSL Modem Router, Wireless Router, | Management | Web Based Configuration (HTTP), Remote management, CWMP(TR-069), Web Based Firmware Upgrade, Diagnostic Tools | VPN Pass-Through | IPSec VPN | Protocols | Supports IPv4 and IPv6 | ATM/PPP Protocols | PPPoE (RFC2516)
PPPoA (RFC 2364)
MER\IPoE (RFC 1483 Routed)
IPoA (RFC1577/2225)
Bridge (RFC1483 Bridge) | Advanced Features | Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3 | APP | Tether App | NAT | Virtual Server, Port Triggering, DMZ, ALG, UPnP |

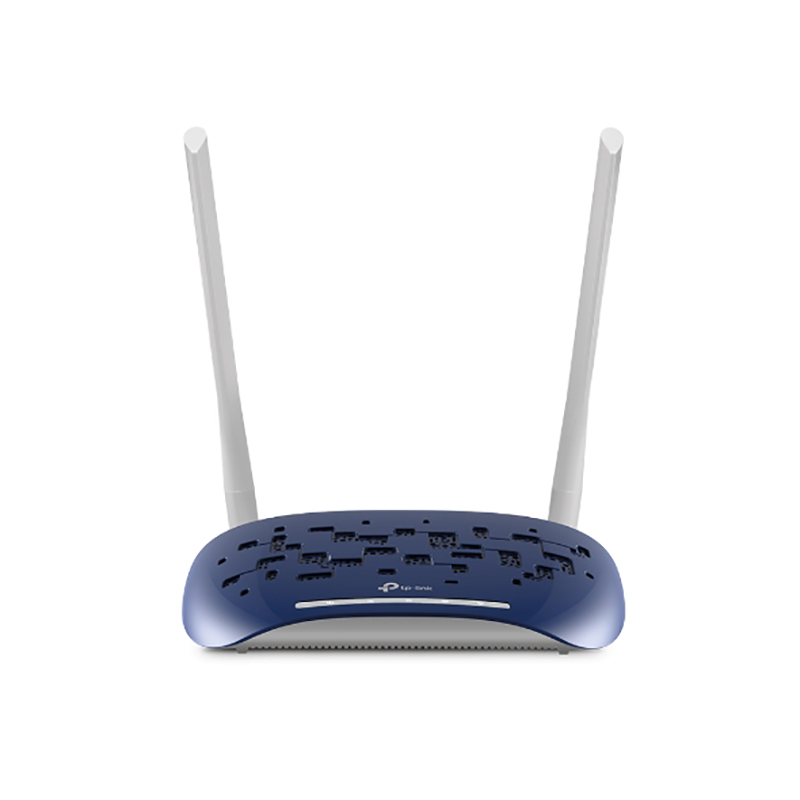

OTHERS | Certification | CE, RoHS | Package Contents | TD-W9960
External DSL Splitter
RJ-11 DSL Cable
RJ-45 Ethernet Cable
Quick Installation Guide
Power Adapter | System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vistaâ„¢ or Windows 7, 8, 8.1, 10,
Mac OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Subscription with an internet service provider (for internet access) | Environment | Operating Temperature: 0℃~40℃(32℉~104℉)
Storage Temperature: -40℃~70℃(-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|
