Synology Surveillance Station Live View Companion (VS360HD)

$639.5

or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time : Question Mark

Delivery: Question Mark

- +

Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

Wish Add to Wishlist

Buy Now, Pay Later:

Your Store

Your store is set to:

Check live stock level

Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

Product Name:

Synology Surveillance Station Live View Companion (VS360HD)
Model Number:

VS360HD
Brand:

Synology
Warranty Period:

3 Year

Description

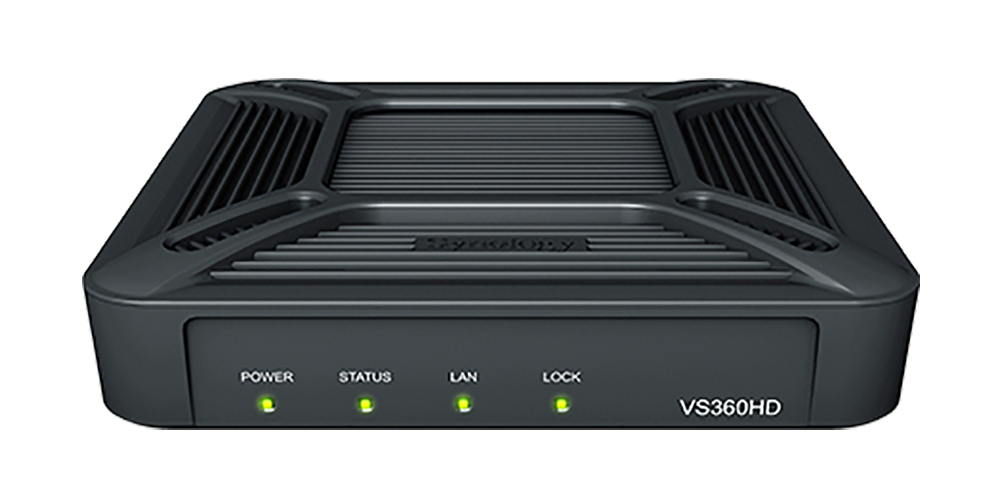

VisualStation VS360HD

Working with Synology NAS, VS360HD is an ultra-compact companion system offering features from Surveillance Station including live view and management tools.

Synology Surveillance Station Live View Companion (VS360HD)

SPECIFICATIONS

Hardware Specifications
Video Outputs
Video Output	VGA X 1, HDMI X 1
Supported Video Resolution	1080p 60Hz
Audio Input	3.5 mm Stereo Audio Jack x 1
Audio Output	3.5 mm Stereo Audio Jack x 1
RJ-45 1GbE LAN Port	1
USB 2.0 Port	2
USB 3.0 Port	1
Appearance
Size	32 mm x 130 mm x 130 mm
Weight	0.3 kg
Others
Power Supply Unit / Adapter	36W
AC Input Power Voltage	100V to 240V AC
Dynamic DC Input	7-24V
Power Frequency	50/60 Hz, Single Phase
Power Consumption*	4.76W (36ch full-load) 3.61W (Power on Idle)
Environment
Operating Temperature	-20°C to 50°C (-4°F to 122°F)
Adapter Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI EN50155 EN45545 EAC RCM
Warranty	3 Years
Software Specifications
Maximum IP cam	36
Total FPS (H.264)*	360 FPS @ 720p (1280x720), 36 Channels 160 FPS @ 1080p (1920×1080), 16 Channels 90 FPS @ 3M (2048x1536), 9 Channels 60 FPS @ 5M (2591x1944), 6 Channels
Total FPS (MJPEG)*	150 FPS @ 720p (1280x720), 15 Channels 40 FPS @ 1080p (1920×1080), 4 Channels 20 FPS @ 3M (2048x1536), 2 Channels 10 FPS @ 5M (2591x1944), 1 Channel
Video Codec	MJPEG MPEG-4 H.264
Audio Codec	PCM ADPCM G711 G726 AMR AAC
Live View / Recording Playback
Snapshot Support
eMap Support
PTZ Control / Patrol
Log Viewer
Notes	VisualStation throughput is tested with Axis P1347 (H.264@1280x720@10FPS). The channel numbers indicated in the Total FPS column of each resolution is the maximum number VS360HD supports for live view display. Streaming videos with HTTPS enabled will consume additional CPU resource to decrypt video streams, and may decrease the maximum number of IP cameras supported. The FPS of single channel for codec H.264 can support up to 60 FPS.
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Quick Installation Guide X 1 AC Power Adapter X 1 RJ-45 LAN Cable X 1 VESA mounting kit
