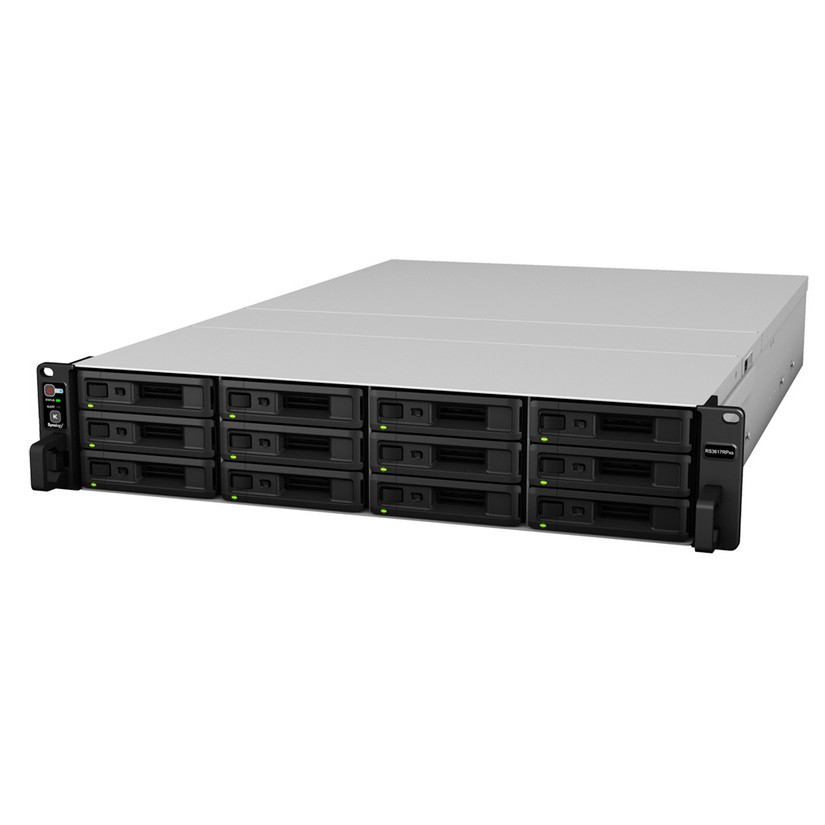

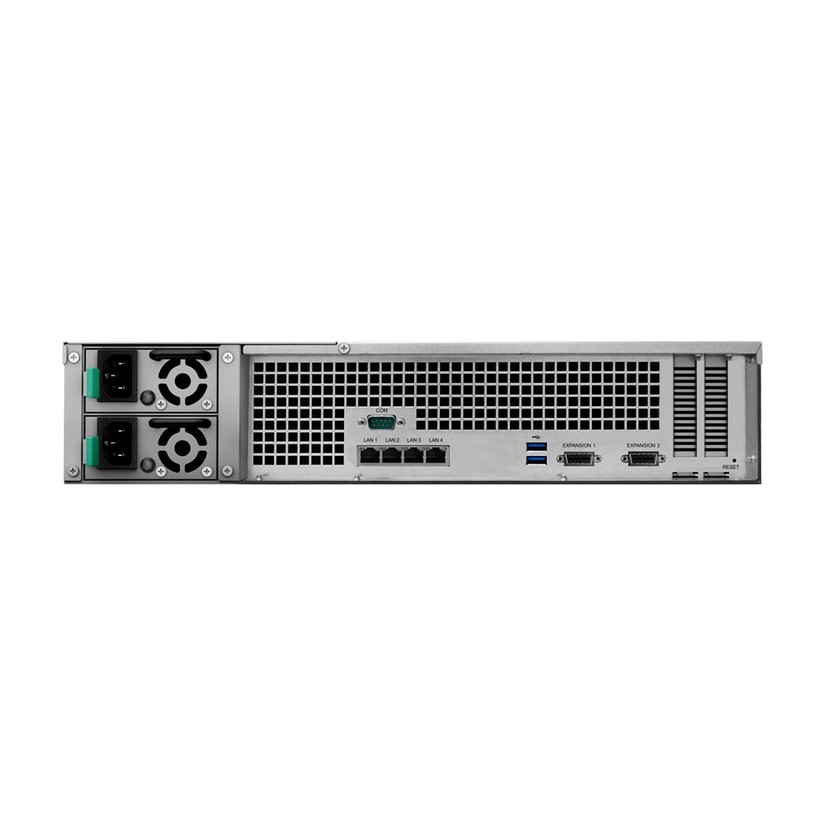

Synology RackStation 12-Bay Scalable NAS Redundant Power (RS3617RPxs)

Synology RackStation 12-Bay Scalable NAS Redundant Power (RS3617RPxs)
  • 38581_thumb_P_1490330556642
  • 38581_thumb_P_1490330569053
  • 38581_thumb_P_1490330569886
  • 38581_thumb_P_1490330569699
  • 38581_thumb_P_1490330569104
  • 38581_thumb_P_1490330569057
  • 38581_thumb_P_1490333785149
$4,989.5
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Synology RackStation 12-Bay Scalable NAS Redundant Power (RS3617RPxs)
  • Model Number:
    RS3617RPxs
  • Brand:
  • Warranty Period:
    5 Year

Description




RackStation RS3617RPxs
 Reliable storage solution providing uninterrupted services for large-scale businesses

Designed for businesses seeking large data storage capacity, RS3617RPxs is a high-performance, 12-bay rackmount NAS equipped with redundant power supplies, ensuring business continuity. Organizations can integrate seamlessly with virtualization solutions including VMware, Citrix, Hyper-V, and OpenStack Cinder.



Official Product LinkOpen Link
CPUCPU Model Intel Xeon D-1521
CPU Architecture 64-bit
CPU Frequency Quad Core 2.4 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)
MemorySystem Memory 8 GB DDR4 ECC UDIMM
Memory Module Pre-installed 8 GB x 1
Total Memory Slots 4
Memory Expandable up to 64 GB (16 GB x 4)
StorageDrive Bay(s) 12
Maximum Drive Bays with Expansion Unit 36
Compatible Drive Type* (See all supported drives)
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
Maximum Internal Raw Capacity 120 TB (10 TB HDD x 12) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units 360 TB (10 TB HDD x 36) (Capacity may vary by RAID types)
Maximum Single Volume Size
200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only)
108 TB
Hot Swappable Drive
External PortsUSB 3.0 Port 2
Expansion Port 2
Internal DrivesBtrfs
EXT4
External DrivesBtrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT*
NotesexFAT Access is purchased separately in Package Center.
AppearanceSize (Height x Width x Depth) 88 mm x 430.5 mm x 692 mm
Weight 14.5 kg
OthersRJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
Wake on LAN/WAN
PCIe Slot for Network Card (See more) 2 x Gen3 x8 slots (x8 link)
System Fan 80 mm x 80 mm x 4 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Easy Replacement System Fan
Wireless Support (dongle)
Power Recovery
Noise Level* 50.2 dB(A)
Scheduled Power On/Off
Power Supply Unit / Adapter 2 X 500W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 116.42 W (Access)
65.49 W (HDD Hibernation)
British Thermal Unit 397.24 BTU/hr (Access)
223.46 BTU/hr (HDD Hibernation)
Redundant Power Supply (for xs+ and RP model)

* Specifications are subject to change without notice.
  * Specifications may vary.
  * The product picture(s) is only for your reference, it may differ from the actual product.



Synology RackStation 12-Bay Scalable NAS Redundant Power (RS3617RPxs)

Synology RackStation 12-Bay Scalable NAS Redundant Power (RS3617RPxs)


Notes:

  1. Surveillance Station running on Virtual DSM does not come with a default device license.

  2. You are responsible for the safekeeping of your purchased license keys in either paper or electronic form. Kindly note that Synology does not replace license keys.

  3. Please retain the invoice or receipt you received from the distributor as proof of purchase.

  4. License authorization requires a registered Synology Account.
