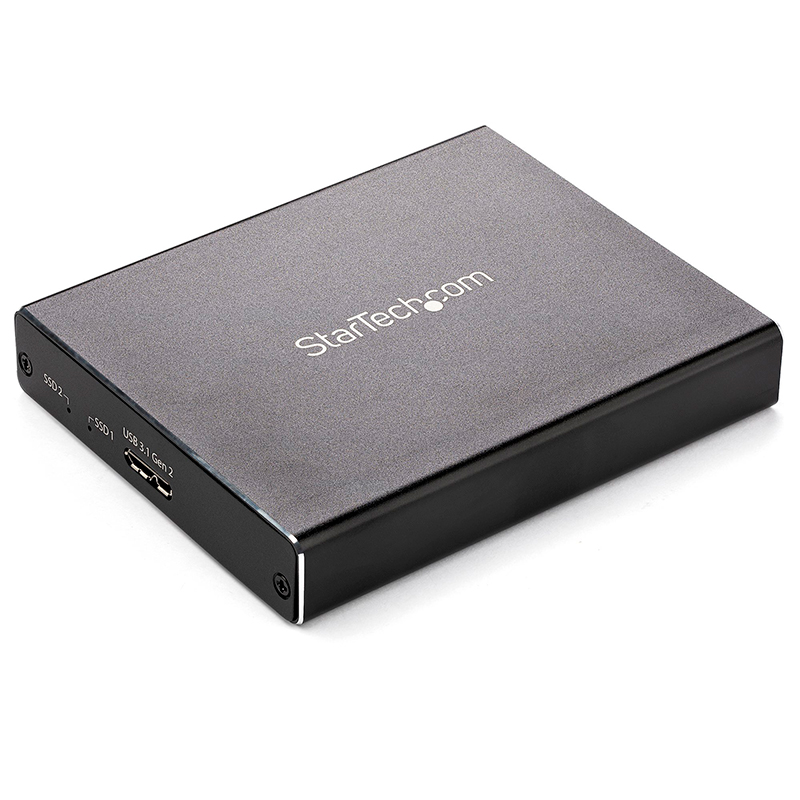

Startech M.2 Dual-Slot USB 3.1 Drive Enclosure with RAID

Startech M.2 Dual-Slot USB 3.1 Drive Enclosure with RAID
  • 61937_thumb_P_1643072802776
  • 61937_thumb_P_1643072782376
  • 61937_thumb_P_1643072783994
$107.5
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Startech M.2 Dual-Slot USB 3.1 Drive Enclosure with RAID
  • Model Number:
    SM22BU31C3R
  • Brand:
  • Warranty Period:
    2 Year

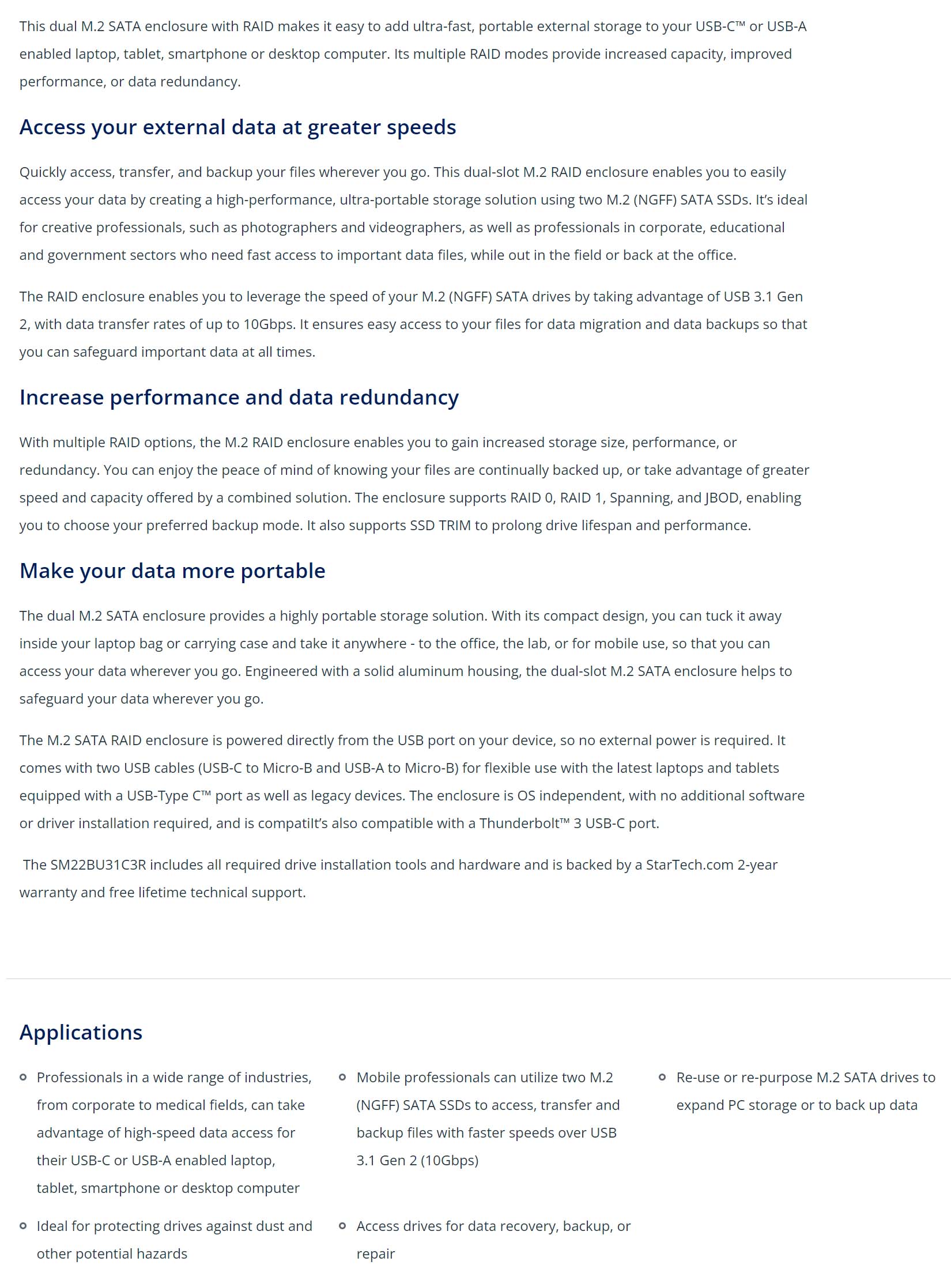

Description




SPECIFICATIONS:

Connector(s)


2 - Drive Connectors

M.2 (SATA, B-Key, NGFF)

1 - Host Connectors

USB 3.1 USB Type   Micro-B (10 pin, Gen 2, 10 Gbps)

Environmental


Operating Temperature

0°C to 60°C (32°F to   140°F)

Storage Temperature

-20°C to 70°C (-4°F to   158°F)

Humidity

0% ~ 90% RH

Hardware


Interface

USB 3.1 Gen 2

Bus Type

USB 3.1 Gen 2

Number of Drives

2

Drive Size

22mm - M.2 SATA

Compatible Drive Types

M.2 (SATA, B-Key, NGFF)

Drive Installation

Fixed

Supported Drive Height(s)

2230

2242

2260

2280

Fan(s)

No

Chipset ID

ASMedia - ASM1352R

Indicators


2 - LED Indicators

Read / Write (green)

Error / Rebuilt (red)

Packaging Information


Package Height

1.3 in [32 mm]

Package Length

6.5 in [16.5 cm]

Shipping (Package) Weight

6.9 oz [195 g]

Package Width

5.2 in [13.1 cm]

Performance


Maximum Data Transfer   Rate

10 Gbps

Type and Rate

USB 3.1 Gen 2 - 10   Gbit/s

UASP Support

Yes

4Kn Support

Yes

Type and Rate

SATA III (6 Gbps)

Port Multiplier

Yes

TRIM Support

Yes

Hardware Raid Supported

Yes

Max Drive Capacity

2 TB

Supported RAID Modes

RAID 0 (Striped Disks)

RAID 1 (Mirrored Disks)

BIG (Spanning or   Concatenation)

JBOD - (Just a Bunch of   Disks)

MTBF

35,000

General Specifications

Not compatible with M.2   NVMe or AHCI PCI-Express SSDs

Physical Characteristics


Colour

Black

Material

Aluminium

Max Drive Height

3.1 in [80 mm]

Product Length

3.9 in [10 cm]

Product Width

3.1 in [80 mm]

Product Height

0.6 in [1.5 cm]

Weight of Product

3.4 oz [96 g]

Power


Power Source

USB-Powered

Software


OS Compatibility

OS independent; No   software or drivers required

Special Notes / Requirements


Note

Windows 7 and earlier   Windows versions do not support TRIM with USB to SATA devices.
