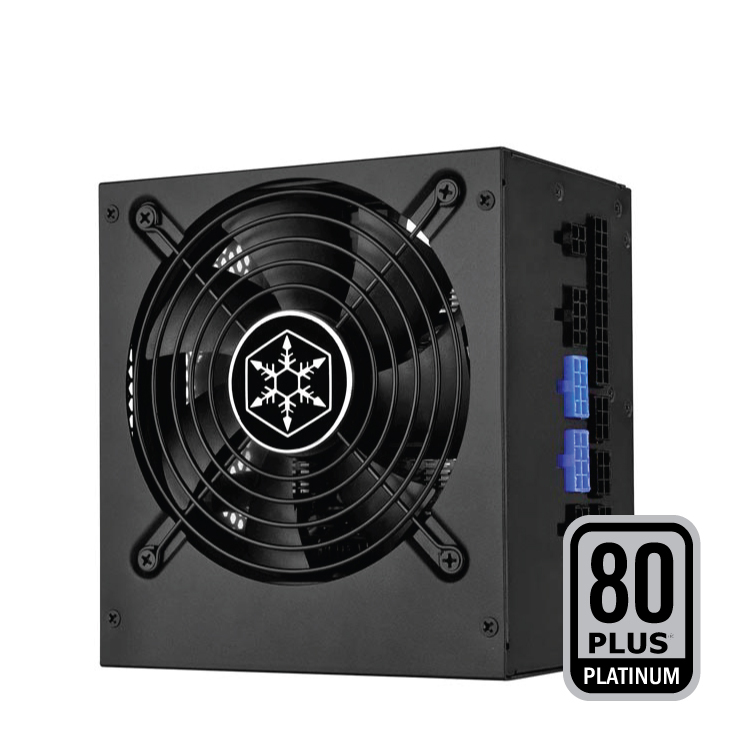

SilverStone 750w Strider 80+ Platinum Power Supply (ST75F-PT)

SilverStone 750w Strider 80+ Platinum Power Supply (ST75F-PT)
  • 33577_thumb_P_1529701196517
$219.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    SilverStone 750w Strider 80+ Platinum Power Supply (ST75F-PT)
  • Model Number:
    ST75F-PT
  • Brand:
  • Manufacturer Warranty:
    5 Year

Description



  • Compact design with a depth of 140mm for easy integration
  • High efficiency with 80 PLUS Platinum certification
  • 100% modular cables
  • 24/7 continuous power output with 40Æ’ operating temperature
  • Class-leading single +12V rail
  • Strict ±3% voltage regulation and low ripple & noise
  • Ultra silent 120mm fan with intelligent semi-fanless operation


  • SilverStone 750w Strider 80+ Platinum Power Supply (ST75F-PT)
  •


  • As desktop computers continue to advance toward ever more efficient and smaller designs, SilverStone is helping to drive the efficiency movement by releasing the Strider Platinum series of power supplies. Created to be the smallest fully modular ATX power supplies with 80 PLUS Platinum efficiency, they are also incredibly quiet with the ability to run in fanless mode. If the loading condition is below 20%, the fan in the power supply can remain off for silent operation during idle or low powered computing activities. Other great features inherited from previous Strider series include ±3% regulation, powerful single +12V rail, 24/7 continuous power output, and multiple PCI-E cables. For those looking to build highly efficient systems in small footprints, the Strider Platinum is definitely the best choice.





Model No.SST-ST75F-PT
Max. DC Output750W
Power density415W per liter
Load Range+3.3V+5V+12V+5VSB-12VMax.(Amps)22A22A62.5A3.0A0.3APeak (Amps)/////Min.(Amps)0A0.2A0A0A0ARange (%)±3%±3%±3%±5%±10%Line Reg.(%)±1%±1%±1%±1%±1%Ripple(mVp-p)50mV50mV120mV50mV120mV
ColorBlack(Lead-Free Paint
combined +3.3, +5V120W
combined +12V750W
Input Voltage90V~264V
Input Frequency Range47Hz~63Hz
PFCActive PFC (PF>0.95 at Full Load)
Efficiency89%~92% at 20%~100% loading
MTBF100,000 hours
Operating temperature0°C ~ 40°C
ProtectionOver current protection
 Over power protection
 Over voltage protection
 Under voltage protection
 Over temperature protection
 Short circuit protection
Connectors1 x 24 / 20-Pin motherboard connector (550mm )
 1 x 8 / 4-Pin EPS / ATX 12V connector (750mm )
 4 x 8 / 6-Pin PCIE connector ("550mm / 150mm"x2 )
 8 x SATA connector ("600mm / 150mm / 150mm /150mm"x2 )
 6 x 4-Pin Peripheral connector ("600mm / 150mm / 150mm"x2 )
 2 x 4-Pin Floppy connector ("600mm / 150mm / 150mm / 150mm"x2 )
Cooling SystemSingle 120mm silent fan
Noise Leve0 ~ 28 dBA
Dimension150 mm (W) x 86 mm (H) x 140 mm (D)
Weight2.25 kg
Form factorATX
Certification80 PLUS Platinum
OtherGPU Support list
 Compatible with ATX12V v2.4



  • Specifications are subject to change without notice.

  • Specifications may vary.

  • The product picture(s) is only for your reference, it may differ from the actual product.


    SilverStone 750w Strider 80+ Platinum Power Supply (ST75F-PT)
