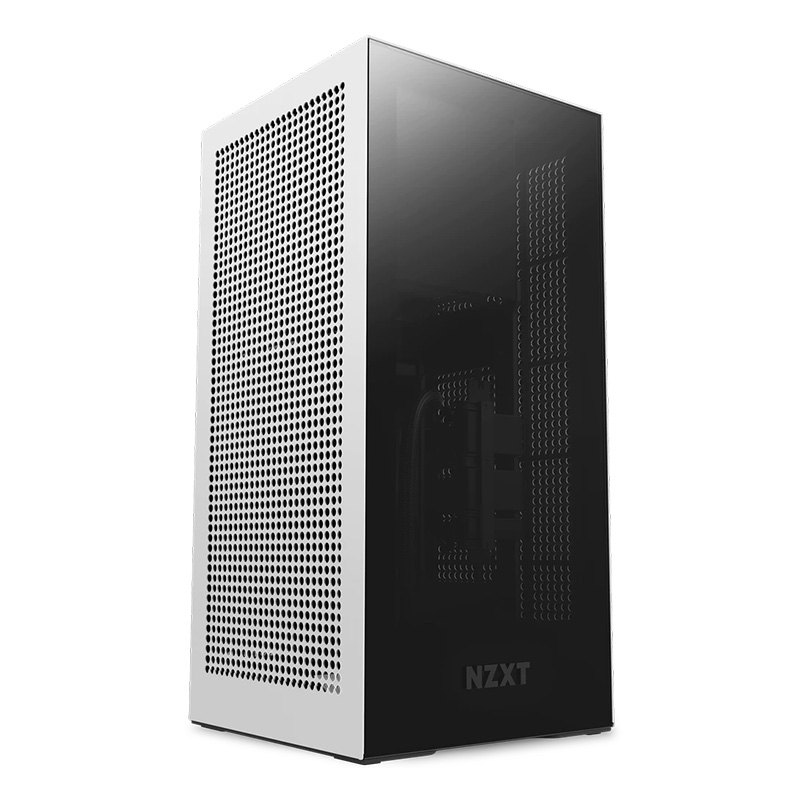

NZXT H1 V2 Mini-ITX Case with AIO Liquid Cooled TG 750W PSU Matte White (CS-H11BW-AU)

NZXT H1 V2 Mini-ITX Case with AIO Liquid Cooled TG 750W PSU Matte White (CS-H11BW-AU)
  • 62849_thumb_P_1651559491789
  • 62849_thumb_P_1651559463042
  • 62849_thumb_P_1651559463689
  • 62849_thumb_P_1651559463213
$499.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    NZXT H1 V2 Mini-ITX Case with AIO Liquid Cooled TG 750W PSU Matte White (CS-H11BW-AU)
  • Model Number:
    CS-H11BW-AU
  • Brand:
  • Warranty Period:
    3 Year

Description

1651559294924193





SPECIFICATIONS:

KEY SPECS


Motherboard Support:

Mini-ITX

Case Material:

SGCC Steel, Tempered Glass

DIMENSIONS


Height:

405 mm / 15.9 inches

Width:

196 mm / 7.7 inches

Depth:

196 mm / 7.7 inches

Weight:

7.6 kg / 16.7 lb

COMPATIBILITY & CLEARANCE


Max GPU Clearance:

324mm

Max GPU Thickness:

58mm

Memory Height:

46mm

FRONT I/O PORTS


USB 3.2 Gen 1 Type-A:

2

USB 3.2 Gen 2 Type-C:

1

Headset Audio Jack:

1

EXPANSION SLOTS


Standard:

2

DRIVE BAYS


2.5":

2

3.5":

-

COMPATIBLE SOCKET & CPU


Intel:

Socket LGA 1700, 1200/115X

AMD:

AMD Socket AM4

RADIATOR


Dimensions:

139 x 174 x 28 mm

Material:

Aluminium

PUMP


Dimensions (D x H):

65 x 26 mm

Motor Speed:

4200 ± 10%RPM

Power:

12V DC, 0.35A

FAN CONTROLLER


Channel:

2

Controller   Method:

PWM Control

Input:

12V DC

Output:

12V DC

FAN SPECS


Model:

Aer P140mm PWM fan

Quantity:

1

Speed:

500 - 1,800 ± 300RPM

Airflow:

27.27 - 98.17 CFM

Static Pressure:

0.21 - 2.71 mm-H₂O

Noise:

21 - 38 dBA

Fan Connector:

4-pin

FAN SPECS


Model:

RF-92RC1-B1

Quantity:

1

Speed:

600 - 1800 ± 200 RPM

Airflow:

28.64 CFM

Static Pressure:

1.1 mm-H₂O

Noise:

23 dBA

Fan Connector:

4-pin

POWER SUPPLY SPECS


Model:

PS-7G1B

Form Factor:

SFX

Modular:

Full

Wattage:

750W

Compliance Standard:

"Complies with SFX12V v3.42 ATX12V v2.52 & EPS12V v2.92"

Energy Efficiency:

80 Plus Gold

Fan:

92mm FDB Silent Fan

MTBF:

100,000 hours at 25°C. excluding the DC Fan.

Protection:

OPP, OVP, UVP, OCP, OTP, SCP

PCIE EXTENDER CABLE


Form Factor:

X16

Compatibility:

PCIe 4.0 Compatible

Cable Length:

330 ± 5 mm

GENERAL


Warranty:

3 years on case, riser card, and AIO 10 years on PSU
