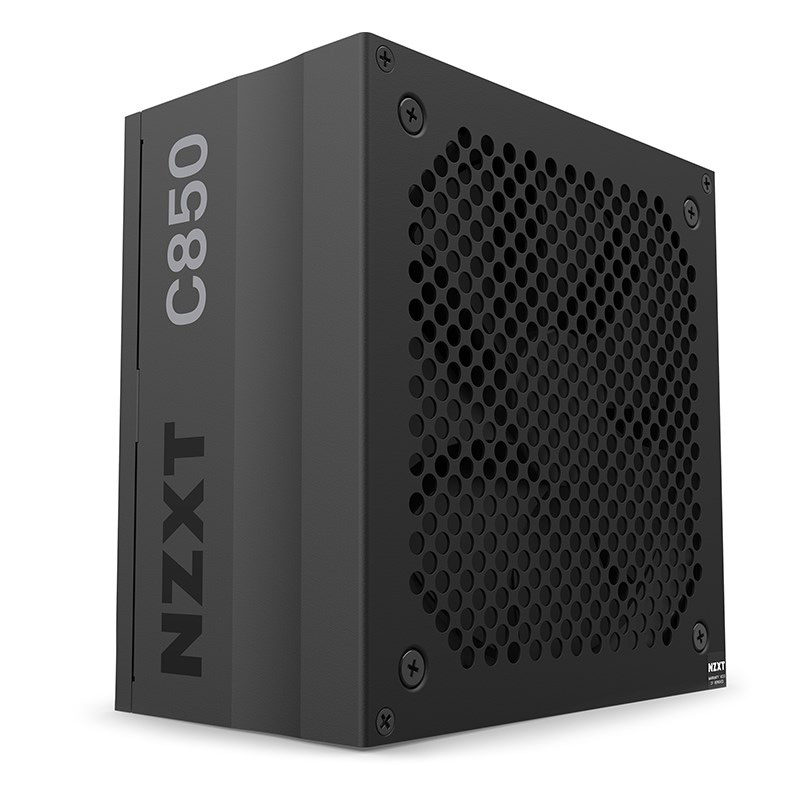

NZXT 850W C Series 80+ Gold Power Supply (PA-8G1BB-AU)

NZXT 850W C Series 80+ Gold Power Supply (PA-8G1BB-AU)
  • Power-Supply-PSU-NZXT-850W-C-Series-80-Gold-Power-Supply-PA-8G1BB-AU-5
  • Power-Supply-PSU-NZXT-850W-C-Series-80-Gold-Power-Supply-PA-8G1BB-AU-2
  • Power-Supply-PSU-NZXT-850W-C-Series-80-Gold-Power-Supply-PA-8G1BB-AU-3
$179.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    NZXT 850W C Series 80+ Gold Power Supply (PA-8G1BB-AU)
  • Model Number:
    PA-8G1BB-AU
  • Brand:
  • Warranty Period:
    10 Year

Description

Power-Supply-PSU-NZXT-850W-C-Series-80-Gold-Power-Supply-PA-8G1BB-AU-7





SPECIFICATIONS:

Output connectors

24-pin ATX power:1

4+4-pin CPU power:2

6+2-pin PCIe power:6

SATA power:6

Peripherals:6

Cable specs

24-pin ATX power:600 mm, Nylon sleeving

4+4-pin CPU power:700 mm, Nylon sleeving

6+2-pin PCIe power:650 + 150 mm, Nylon sleeving

SATA power:500 + 150 mm

Peripherals:500 + 150 mm

AC input rating

100 - 240Vac:10A-5A 50Hz-60Hz

DC output rating

+3.3V and +5V:22A (120W)

+12V:70.8A (850W)

-12V:0.3A (3.6W)

5Vsb:3A (15W)

Total:850W

Operation

PF Correction:Active @0.96

MTBF:100,000 hours

Temperature:0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C)

Energy efficiency

Rating:80 Plus Gold

20% loading:87% @115Vac

50% loading:90.5% @115Vac

100% loading:87.5% @115Vac

Fan specs

Dimensions:135 x 135 x 25 mm

Speed:0-2300 ± 10% RPM

Airflow:93.02 CFM (Tpy.)

Noise:44.5 dBA max

Bearing:Fluid Dynamic Bearing (FDB)

General

Dimensions:150 x 150 x 86mm

Material(s):Steel, PCB and Plastic

Compliance Standard:ATX12V v2.52 / EPS12V v2.92

Regulation & Certification:cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA
