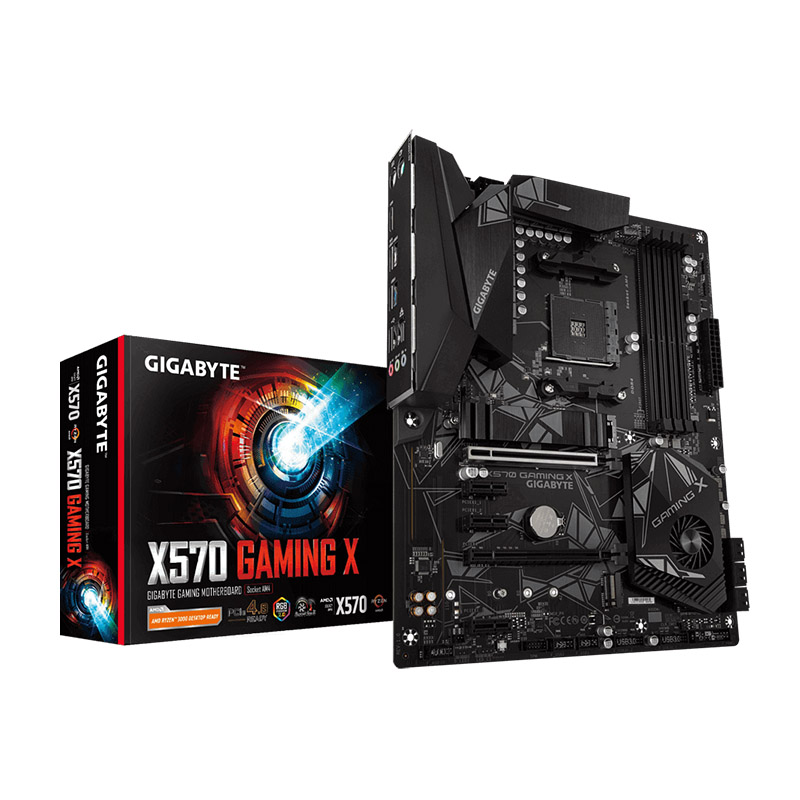

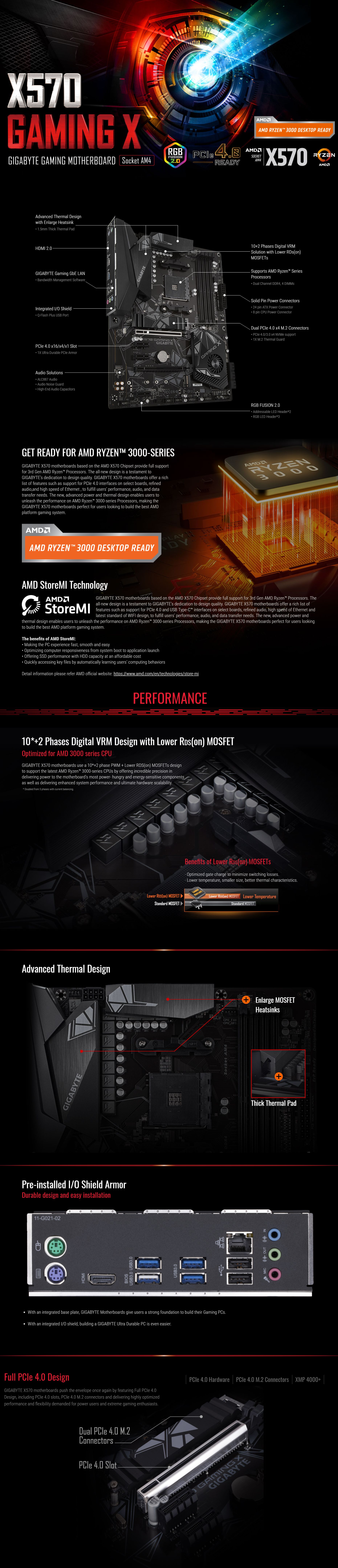

CHIPSET

AMD X570

MEMORY

3rd Generation AMD Ryzen™ processors:

Support for DDR4 4000(O.C.) / 3866(O.C.) /   3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) /   3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

2nd Generation AMD Ryzen™ processors/AMD   Ryzen™ with Radeon™ Vega Graphics processors:

Support for DDR4 3200(O.C.) / 2933 / 2667 /   2400 / 2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB   (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8   memory modules

Support for non-ECC Un-buffered DIMM   1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP)   memory modules

(Please refer "Memory Support List"   for more information.)

ONBOARD GRAPHICS

Integrated Graphics Processor:

1 x HDMI port, supporting a maximum   resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version, HDCP 2.2, and   HDR.

Maximum shared memory of 16 GB

Note: For 2nd Generation AMD Ryzen™ with   Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics   processors only.

AUDIO

Realtek® ALC887 codec

High Definition Audio

2/4/5.1-channel

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

EXPANSION SLOTS

Integrated in the CPU   (PCIEX16):

· 3rd Generation AMD   Ryzen™ processors:

1 x PCI Express x16 slot,   supporting PCIe 4.0 and running at x16

· 2nd Generation AMD   Ryzen™ processors:

1 x PCI Express x16 slot,   supporting PCIe 3.0 and running at x16

* For optimum   performance, if only one PCI Express graphics card is to be installed, be   sure to install it in the PCIEX16 slot.

· 2nd Generation AMD   Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega   Graphics processors:

1 x PCI Express x16 slot,   supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1)

1 x PCI Express x16 slot,   supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)

* For 3rd Generation AMD   Ryzen™ processors only.

3 x PCI Express x1 slots,   supporting PCIe 4.0*/3.0

* For 3rd Generation AMD   Ryzen™ processors only.

MULTI-GRAPHICS TECHNOLOGY

Support for AMD Quad-GPU   CrossFire™ and 2-Way AMD CrossFire™ technologies

Note: For 3rd Generation   AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.

STORAGE INTERFACE

Integrated in the CPU (M2A_SOCKET):

· 3rd Generation AMD Ryzen™ processors:

1 x M.2 connector (Socket 3, M key, type   2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)

· 2nd Generation AMD Ryzen™ processors/2nd   Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with   Radeon™ Vega Graphics processors:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110   SATA and PCIe 3.0 x4/x2 SSD support)

Integrated in the Chipset (M2B_SOCKET):

1 x M.2 connector (Socket 3, M key, type   2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)

* For 3rd Generation AMD Ryzen™ processors   only.

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10

USB

Integrated in the CPU:

4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

4 x USB 3.2 Gen 1 ports available through the   internal USB headers

6 x USB 2.0/1.1 ports (2 ports on the back   panel, 4 ports available through the internal USB headers)

INTERNAL I/O CONNECTORS

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

2 x system fan headers

1 x CPU cooler LED strip/RGB LED strip header

2 x addressable LED strip headers

2 x RGB LED strip headers

6 x SATA 6Gb/s connectors

2 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6   pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

1 x Q-Flash Plus button

BACK PANEL CONNECTORS

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x HDMI port

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O CONTROLLER

iTE® I/O Controller Chip

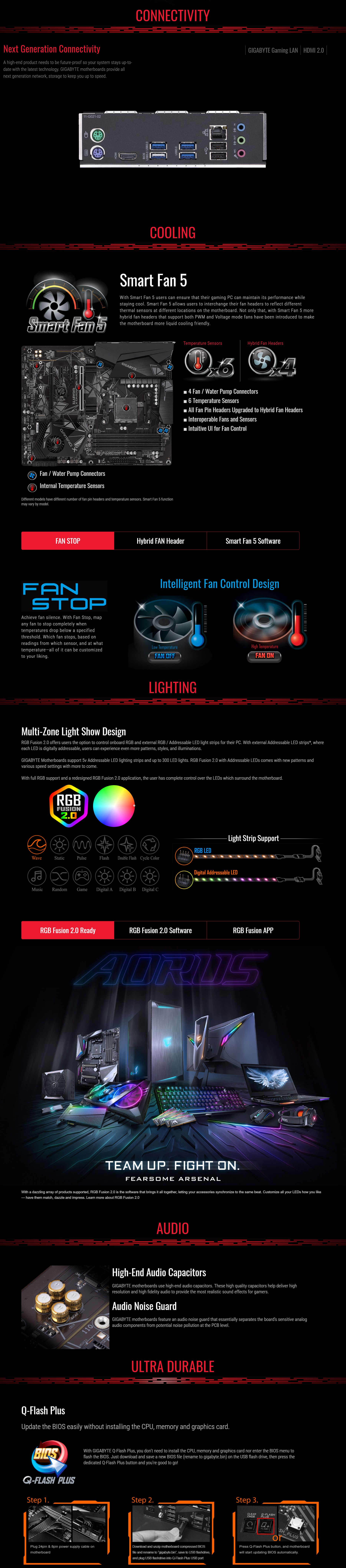

H/W MONITORING

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate   detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan (pump)   speed control function is supported will depend on the fan (pump) you install.

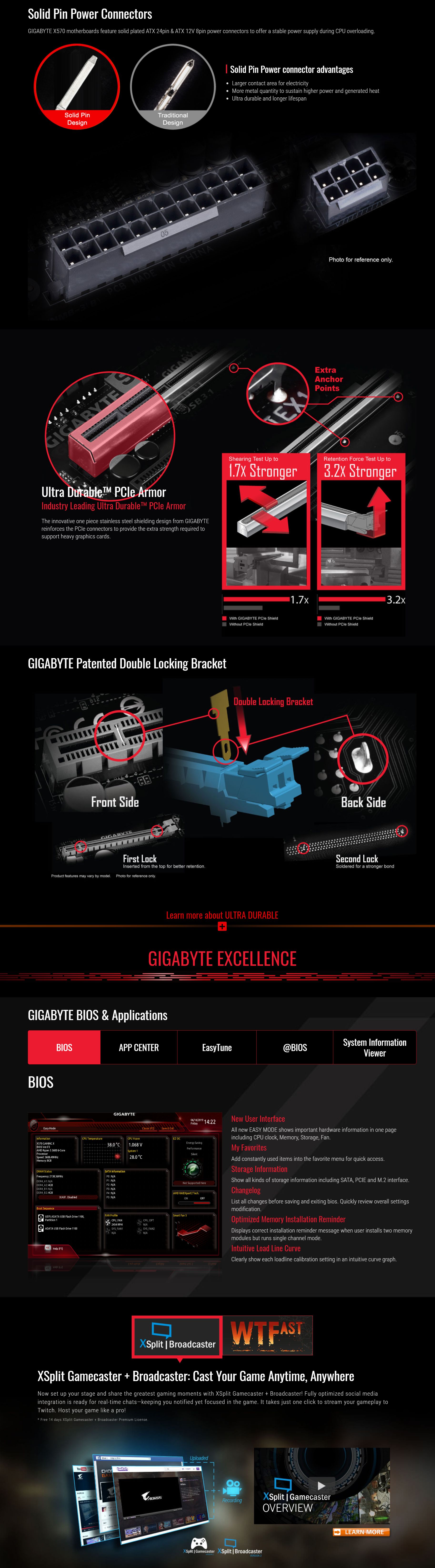

BIOS

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI   5.0

UNIQUE FEATURES

Support for APP Center

* Available applications in APP Center may   vary by motherboard model. Supported functions of each application may also   vary depending on motherboard specifications.

@BIOS

AutoGreen

Cloud Station

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

RGB Fusion

Smart Backup

Smart Keyboard

Smart Survey

System Information Viewer

USB Blocker

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

BUNDLED SOFTWARE

Norton® Internet Security (OEM version)

Realtek® 8118 Gaming LAN Bandwidth Control   Utility

OS

Support for Windows 10 64-bit

FORM FACTOR

ATX Form Factor; 762.5px x 610px

REMARK

Due to different Linux support condition   provided by chipset vendors, please download Linux driver from chipset   vendors' website or 3rd party website.

Most hardware/software vendors may no longer   offer drivers to support Win9X/ME/2000/XP. If drivers are available from the   vendors, we will update them on the GIGABYTE website.
