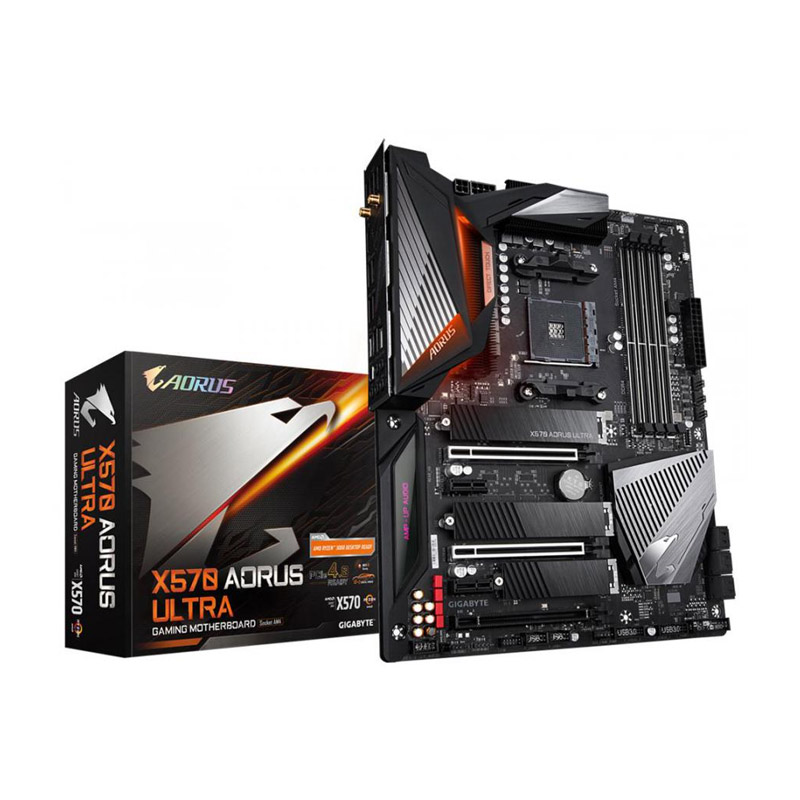

CHIPSET

AMD X570

MEMORY

3rd Generation AMD   Ryzen™ processors:

Support for DDR4   4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) /   3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) /   3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

2nd Generation AMD   Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics   processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:

Support for DDR4   3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133   MHz memory modules

4 x DDR4 DIMM sockets   supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory   architecture

Support for ECC   Un-buffered DIMM 1Rx8/2Rx8 memory modules*

* ECC mode supported   by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD   Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega   Graphics processors.

Support for non-ECC   Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme   Memory Profile (XMP) memory modules

(Please refer   "Memory Support List" for more information.)

ONBOARD GRAPHICS

Integrated Graphics   Processor:

1 x HDMI port,   supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI   2.0 version, HDCP 2.2, and HDR.

Maximum shared memory   of 16 GB

* For 2nd Generation   AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega   Graphics processors only.

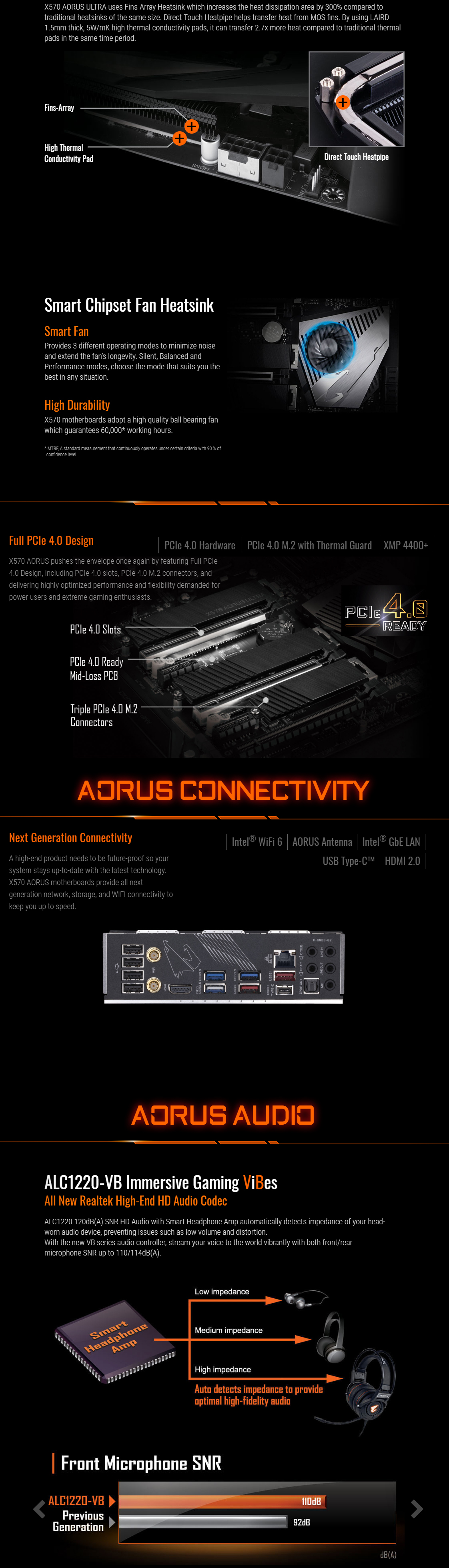

AUDIO

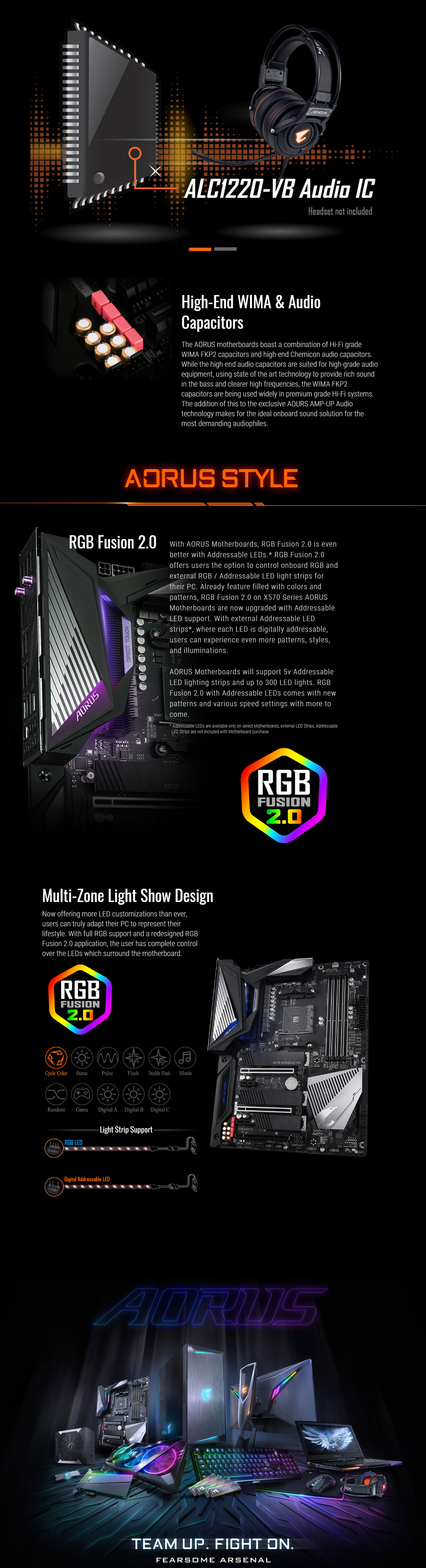

Realtek® ALC1220-VB   codec

* The back panel line   out jack supports DSD audio.

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF   Out

LAN

Intel® GbE LAN chip   (10/100/1000 Mbit)

WIRELESS COMMUNICATION MODULE

Wi-Fi   802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 5.0

Support for 11ax   160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate   may vary depending on environment and equipment.

EXPANSION SLOTS

Integrated in the CPU   (PCIEX16/PCIEX8):

3rd Generation AMD   Ryzen™ processors:

1 x PCI Express x16   slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

1 x PCI Express x16   slot, supporting PCIe 4.0 and running at x8 (PCIEX8)

2nd Generation AMD   Ryzen™ processors:

1 x PCI Express x16   slot, supporting PCIe 3.0 and running at x16 (PCIEX16)

1 x PCI Express x16   slot, supporting PCIe 3.0 and running at x8 (PCIEX8)

* For optimum   performance, if only one PCI Express graphics card is to be installed, be   sure to install it in the PCIEX16 slot.

* The PCIEX8 slot   shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD   Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot   operates at up to x8 mode.

2nd Generation AMD   Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega   Graphics processors:

1 x PCI Express x16   slot, supporting PCIe 3.0 and running at x8 (PCIEX16)

Integrated in the   Chipset (PCIEX4/PCIEX1):

1 x PCI Express x16   slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)

* For 3rd Generation   AMD Ryzen™ processors only.

2 x PCI Express x1   slots, supporting PCIe 4.0*/3.0

* For 3rd Generation   AMD Ryzen™ processors only.

MULTI GRAPHICS TECHNOLOGY

Support for NVIDIA®   Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies

Support for AMD   Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

* For 3rd Generation   AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.

STORAGE INTERFACE

Integrated in the CPU   (M2A_SOCKET):

3rd Generation AMD   Ryzen™ processors:

1 x M.2 connector   (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD   support)

2nd Generation AMD   Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics   processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:

1 x M.2 connector   (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD   support)

Integrated in the   Chipset (M2B_SOCKET/M2C_SOCKET):

1 x M.2 connector   (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD   support) (M2B_SOCKET)

* For 3rd Generation   AMD Ryzen™ processors only.

1 x M.2 connector   (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x2 SSD support)   (M2C_SOCKET)

* For 3rd Generation   AMD Ryzen™ processors only.

6 x SATA 6Gb/s   connectors

Support for RAID 0,   RAID 1, and RAID 10

* Refer to "1-8   Internal Connectors," for the installation notices for the M.2 and SATA   connectors.

USB

       Integrated in the CPU:

3 x USB 3.2 Gen 1   ports on the back panel

1 x USB 3.2 Gen   2*/Gen 1 Type-A port (red) on the back panel

* For 3rd Generation   AMD Ryzen™ processors only.

Chipset:

1 x USB Type-C™ port   with USB 3.2 Gen 2 support, available through the internal USB header

1 x USB Type-C™ port   on the back panel, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2   Type-A port (red) on the back panel

4 x USB 3.2 Gen 1   ports available through the internal USB headers

Chipset+USB 2.0 Hubs:

8 x USB 2.0/1.1 ports   (4 ports on the back panel, 4 ports available through the internal USB   headers)

INTERNAL I/O CONNECTORS

1 x 24-pin ATX main   power connector

1 x 8-pin ATX 12V   power connector

1 x 4-pin ATX 12V   power connector

1 x CPU fan header

1 x water cooling CPU   fan header

3 x system fan   headers

2 x system fan/water   cooling pump headers

2 x addressable LED   strip headers

2 x RGB LED strip   headers

1 x CPU cooler LED   strip/RGB LED strip header

3 x M.2 Socket 3   connectors

6 x SATA 6Gb/s   connectors

1 x front panel   header

1 x front panel audio   header

1 x USB Type-C™ port,   with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 1   headers

2 x USB 2.0/1.1   headers

1 x Trusted Platform   Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

2 x temperature   sensor headers

1 x Q-Flash Plus   button

BACK PANEL CONNECTORS

2 x SMA antenna   connectors (2T2R)

1 x HDMI port

1 x USB Type-C™ port,   with USB 3.2 Gen 2 support

1 x USB 3.2 Gen   2*/Gen 1 Type-A port (red)

* For 3rd Generation   AMD Ryzen™ processors only.

1 x USB 3.2 Gen 2   Type-A port (red)

3 x USB 3.2 Gen 1   ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

1 x optical S/PDIF   Out connector

5 x audio jacks

I/O CONTROLLER

iTE® I/O Controller   Chip

H/W MONITORING

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow   rate detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan   (pump) speed control function is supported will depend on the fan (pump) you   install.

BIOS

2 x 128 Mbit flash

Use of licensed AMI   UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7,   WfM 2.0, SM BIOS 2.7, ACPI 5.0

UNIQUE FEATURES

Support for APP   Center

* Available   applications in APP Center may vary by motherboard model. Supported functions   of each application may also vary depending on motherboard specifications.

@BIOS

AutoGreen

Cloud Station

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

RGB Fusion

Smart Backup

Smart Keyboard

Smart Survey

System Information   Viewer

USB Blocker

Support for Q-Flash   Plus

Support for Q-Flash

Support for Xpress   Install

BUNDLED SOFTWARE

Norton® Internet   Security (OEM version)

cFosSpeed

XSplit Gamecaster +   Broadcaster (12 months license)

OPERATING SYSTEM

Support for Windows   10 64-bit

FORM FACTOR

ATX Form Factor;   762.5px x 610px

REMARK

Due to different   Linux support condition provided by chipset vendors, please download Linux   driver from chipset vendors' website or 3rd party website.

Most   hardware/software vendors may no longer offer drivers to support   Win9X/ME/2000/XP. If drivers are available from the vendors, we will update   them on the GIGABYTE website.
