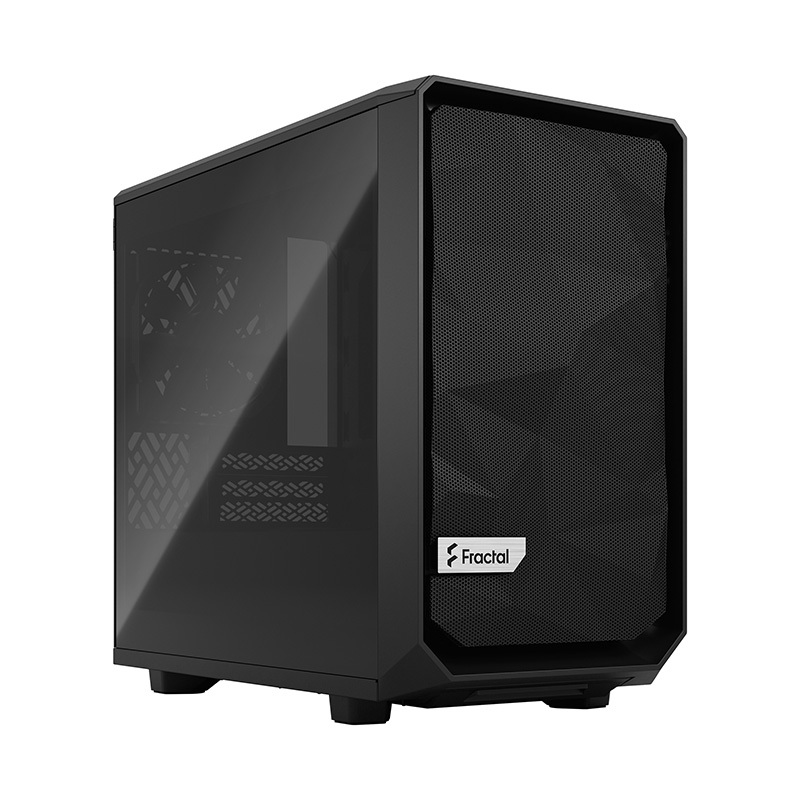

Fractal Design Meshify 2 Nano Black TG Dark Tint Mini-ITX Case (FD-C-MES2N-01)

Fractal Design Meshify 2 Nano Black TG Dark Tint Mini-ITX Case (FD-C-MES2N-01)
  • Fractal-Design-Cases-Fractal-Design-Meshify-2-Nano-Black-TG-Dark-Tint-Mini-ITX-Case-6
  • Fractal-Design-Cases-Fractal-Design-Meshify-2-Nano-Black-TG-Dark-Tint-Mini-ITX-Case-3
  • Fractal-Design-Cases-Fractal-Design-Meshify-2-Nano-Black-TG-Dark-Tint-Mini-ITX-Case-2
  • Fractal-Design-Cases-Fractal-Design-Meshify-2-Nano-Black-TG-Dark-Tint-Mini-ITX-Case-4
$169.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Fractal Design Meshify 2 Nano Black TG Dark Tint Mini-ITX Case (FD-C-MES2N-01)
  • Model Number:
    FD-C-MES2N-01
  • Brand:
  • Warranty Period:
    2 Year

Description

Fractal-Design-Cases-Fractal-Design-Meshify-2-Nano-Black-TG-Dark-Tint-Mini-ITX-Case-1




SPECIFICATIONS:

3.5"/2.5" drive mounts

1 (included)

Dedicated 2.5" drive mounts

3 (2 included)

Expansion slots

2

Front interface

1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button

Total fan mounts

6x 120 mm or 3x 140 mm (Top 140 mm fans needs to be max 15 mm thick)

Front fan

2x 120/140 mm (1x Dynamic X2 GP-14 included)

Top fan

2x 120 or 1x 140 slim fan (max 15 mm thick)

Rear fan

1x 120 mm (1x Dynamic X2 GP-12 included)

Bottom fan

1x 120 mm (requires removal of HDD tray)

Dust filters

Top, front and bottom

Cable routing space

15-25 mm

Cable routing grommets

Yes

Fixed cable straps

Yes

Tool-less push-to-lock

Top, front and side panels

Captive thumbscrews

SSD and PSU brackets

Left side panel

Tempered glass

Right side panel

Steel

Motherboard compatibility

Mini ITX / Mini-DTX

Power supply type

ATX

Front radiator

120/240, 140/280 mm (316 mm max height, 146 mm max width, 280 recommended in “push” configuration for easier fit)

Top radiator

N/A

Rear radiator

120 mm

Bottom radiator

N/A

PSU max length

165 mm recommended (200 mm without HDD-tray and modular air duct)

GPU max length

331 mm 306 mm with front fan

GPU max thickness

57 mm / 2.8 slot

CPU cooler max height

167 mm

Case dimensions (LxWxH)

396 x 205 x 361 mm

Case dimensions w/o feet/protrusions/screws

384 x 205 x 345 mm

Net weight

5.9kg (TG)

Package dimensions (LxWxH)

412 x 277 x 462 mm

Gross weight

7.1kg (TG)

Package contents

Meshify 2 Nano case, User manual, Accessory box

Colour

Black
