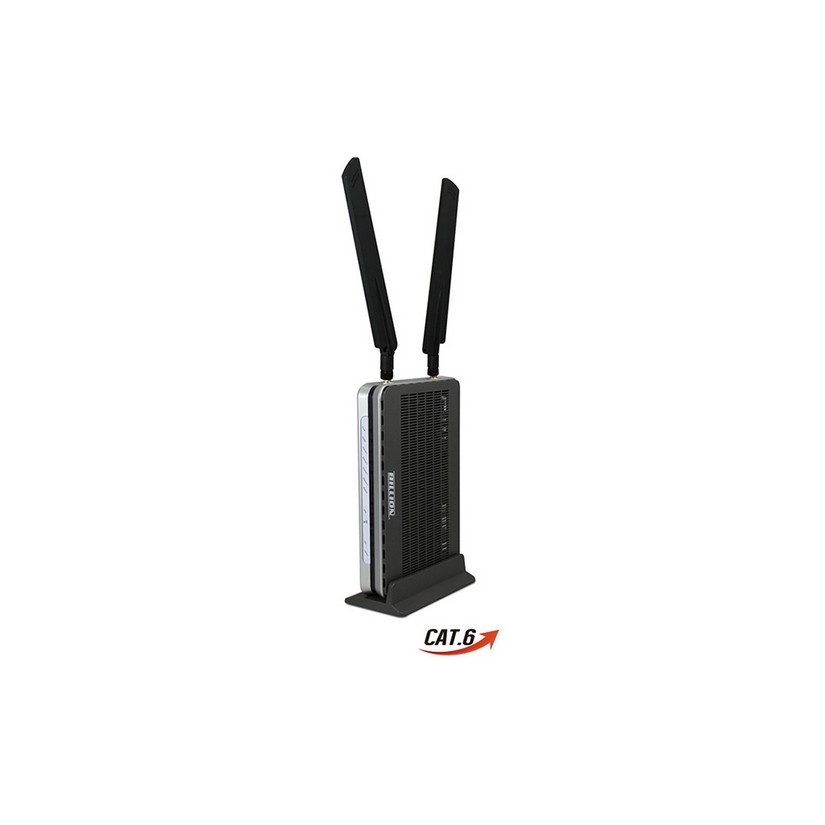

BiPAC 8920NZ M2M Dual-SIM 3G/4G LTE Embedded V/ADSL2+ Wireless-N VPN Firewall Router
The BiPAC8920NZ, triple-WAN 3G/LTE/VDSL&ADSL2+ firewall router is integrated with the 802.11n Wireless Access Point and 4-portgiga switch. It is a cutting-edge networking product for SOHO and office users. Uniquely, the router allows users to directly insert3G/4GLTE SIM card into its built-in SIM slots instead of requiring external USB modems. This design will avoid compatibility issues of many different 3G/LTE USB modems. With the increasing popularity of the 3G/4GLTE standard, communication via the BiPAC8920NZ is becoming more convenient and widely available - enabling users to use 3G/4GLTE, UMTS, EDGE, GPRS, or GSM Internet connection, making downstream rates of up to 100Mbps possible. Users can watch movies, download music or access e-mail wherever a 3G/4G LTE connection is available.
Benefits
3G/4G LTE Mobility and Always-On Connection
BiPAC8920NZ router allows you to insert 3G/4G LTE SIM card to its built-in SIM slots, enabling you to use a 3G/4G LTE Internet connection, which makes downstream rates of up to 100Mbps*3 possible. With the increasing popularity of the 3G/4GLTE standard, communication via the BiPAC8920NZ is becoming more convenient and widely available - allowing you to watch movies, download music on the road, or access e-mail no matter where you are. You can even share your Internet connection with others, no matter if you're in a meeting, or speeding across the country on a train. BiPAC8920NZ will then automatically reconnect to the ADSL connection when it's restored, reducing connection costs. These features are perfect for office situations where constant connection is paramount. Secure VPN Connections
The BiPAC8920NZ supports embedded IPSec VPN (Virtual Private Network) protocols, allowing users to establish encrypted private connections of up to 16 simultaneous tunnels over the Internet. You can access your corporate Intranet and transmit sensitive data between branch offices and remote sites anytime; even when you are out of office, thus enhancing productivity. Smooth, Responsive Net Connection
The quality of Service (QoS) gives a user full control over outgoing data traffic. Priority can be assigned to ensure that signal transmissions like gaming packets, VoIP calls or IPTV/streaming content passes through the router at lightning speed, even when there is heavy Internet traffic. The rate of different types of outgoing data passing through the router is also controlled to ensure that users do not saturate bandwidth with their browsing activities. Optimal Wireless Speeds and Coverage
With an integrated 802.11n Wireless Access Point, the router delivers up to 6 times the speed and 3 times the wireless coverage of an 802.11b/g network device. It supports data rates of up to 300Mbp.It is also backward compatible with 802.11b/g clients. The Wi-Fi Protected Access (WPA-PSK/WPA2-PSK) and Wired Equivalent Privacy (WEP) features enhance the level of transmission security and access control over Wireless LAN. The router also supports Wi-Fi Protected Setup (WPS) standard, allowing users to establish a secure wireless network by simply pushing a button. If the network requires wider coverage, the built-in Wireless Distribution System (WDS) repeater function allows users to expand the wireless network without the need for any external wires or cables. |
| Key Features & Benefits | IPv6 ready (IPv4/dual stack)
Triple-WAN approach VDSL2, ADSL2+, 3G/ LTE or Ethernet for broadband connectivity
3G/4GLTE embedded with dual-SIM card slots and CAT 6 (DL up to 300Mbps and UL up to 50Mbps, Carrier Aggregation) is supported.
5-port 10/100/1000 Mbps switch
Ethernet port #5can be configured as a WAN interface for broadband connectivity
Auto failover feature to ensure an always-on connection
16 IPSec VPN tunnels supported
Secure powerful DES/3DES/AES
Wireless speed of up 300Mbps
802.11n Access Point Wi-Fi Protected Setup WPS), WPA-PSK/ WPA2-PSK) and Wired Equivalent Privacy WEP)
Quality Service control traffic prioritization bandwidth management
SOHO firewall security DoS prevention packet filtering
Supports IPTV applications | ADSL Compliance
| Compliant with xDSL Standard
- ITU-T G.993.2 (VDSL2)
- ITU-T G.998.4 (G.inp)
- ITU-T G.993.5 (G.vector)
- ITU-T G.992.5 (G.dmt.bis plus, Annex M) (ADSL2 + Annex M, available for BiPAC 8920NZA model only)
- ITU-T G.992.3 (G.dmt.bis, Annex M, ADSL2 Annex M, available for BiPAC 8920NZA model only)
- Full-rate ANSI T1.413 Issue 2
- ITU-T G.992.1 (G.dmt)
- ITU-T G.992.2 (G.lite)
- ITU-T G.994.1 (G.hs)
Supports VDSL2 band plan: 997 and 998
Supports VDSL2 profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a in single line mode
Supports ATM and PTM modes | | 3G/4GLTE*3 | LTE: peak downlink speed of up to 100Mbps and peak uplink speed of up to 50Mbps
- Supports multi-band LTE: 2100MHz(B1),1800MHz(B3),2600MHz(B7),900 MHz(B8),800MHz(B20), 1900Mz (B2), AWS (B4), 850MHz (B5), 700MHz (B13), 700MHz (B17), 1900MHz (B25).
- Supports multi-band WCDMA: 2100MHz (B1),1900MHz (B2), 850MHz (B5), 900MHz (B8)
3G/HSPA+: peak downlink speed of up to 14.4Mbps and peak uplink speed of up to 5.76Mbps
- Supports dual-band WCDMA: 900MHzand 2100MHz or multi-band WCDMA: 850MHz, 1900MHz and 2100MHz
- Supports Quad-band EDGE/GPRS/GSM: 850MHz,900MHz, 1800MHz, 1900MHz
Web-based GUI for configuration and management | | Network Protocols and Features | IPv4 or IPv4 / IPv6 dual stack
NAT, static(v4/v6) routing and RIP-1 / 2
IPv6 stateless/stateful address auto-configuration
IPv6 router advertisement
IPv6 over PPP, DHCPv6
IP tunnel IPv6 in IPv4 (6RD)
IP tunnel IPv4 in IPv6 (DS-Lite)
Universal Plug and Play (UPnP) compliant
Dynamic Domain Name System (DDNS)
Virtual server and DMZ
SNTP, DNS relay and IGMP Proxy and IGMP snooping for video service
MLD proxy and MLD snooping for video service
Management based on IP protocol, port number and address
SMTP client with SSL/TLS
Supports port-based and tag-based Interface Grouping (VLAN) | | Virtual Private Network (VPN) | 16 IPSec VPN tunnels
IKE key management
DES, 3DES and AES encryption for IPSec
IPSec pass-through
GRE (Generic Routing Encapsulation) tunnel
Supports L2TP, PPTP, OpenVPN | | USB Application Server | Storage/NAS: FTP server, SAMBA server
Print server
Supports DLNA | | IPTV Applications*1 | Interface Grouping (VLAN)
Quality of Service (QoS)
IGMP Snooping and IGMP Proxy
MLD snooping and proxy
Supports VLAN MUX | | Firewall | Built-in NAT Firewall
Stateful Packet Inspection (SPI)
Prevents DoS attacks including Land Attack, Ping of Death, etc.
Supports web(http)/ssh/ftp/telnet/snmp
IP filtering incoming/outgoing(v4/v6)
URL content filtering - string or domain name detection in URL string
MAC filtering
Password protection for system management | | Quality of Service Control | Supports the DiffServ approach
Traffic prioritization and bandwidth management based on IP protocol, port number and address | | ATM and PPP Protocols | ATM Adaptation Layer Type 5 (AAL5)
Multiple Protocol over AAL5 (RFC 2684, formerly RFC 1483)
Bridged or routed Ethernet encapsulation
VC-based and LLC-based multiplexing
PPP over Ethernet (PPPoE)
PPP over ATM (RFC 2364)
Classical IP over ATM (RFC 1577)
MAC Encapsulated Routing (RFC 1483MER)
OAM F4/F5 | | Wireless LAN | Compliant with IEEE 802.11n, 802.11g and 802.11b standards
2.4 GHz - 2.484 GHz frequency range
Up to 300Mbps wireless operation rate
64/128 bits WEP supported for encryption
WPS (Wi-Fi Protected Setup) for easy setup
Supports WPS v2
Wireless security with WPA-PSK/WPA2-PSK
Multiple wireless SSIDs with wireless guest access and client isolation
WDS repeater function
802.1x radius supported | | Management | Easy Sign-On (EZSO)
Web-based GUI for remote and local management(IPv4/ IPv6)
Firmware upgrades and configuration data upload and download via web-based GUI
Embedded Telnet server for remote and local management
SNMP v1, v2, MIB-I and MIB-II supported
Supports DHCP server/client/relay
TR-069*2 supports remote management
Available Syslog
E-Mail alert for WAN IP changing
Wake On LAN
Auto failover and fallback
Push service | | Physical Interface | 3G/4G LTE antenna * 2
WLAN: Internal antenna
Power jack
Power switch
Factory default reset button
WPS push button
Dual SIM card slots(for the SIM card from Telco/ISP)
Ethernet: 4-port 10/100/1000Mbps auto-crossover (MDI / MDI-X) switch
EWAN: Ethernet port #4 can be configured as a WAN interface for broadband connectivity
DSL: V/ADSL port
USB: USB 2.0 type A port support storage service and print server | | Physical Specifications | Dimensions: 9.04" x 6.10" x 1.69" (229.5mm x 155mm x 43mm) | | Power Requirements | Input: 15V, 2A | | Operating Environment | Operating temperature: 0°C~40°C
Storage temperature: -20°C~70°C
Humidity: 20%~ 95% non-condensing | | Notes: | IPTV application may require subscribing to IPTV services from a Telco / ISP.
Only upon request for Telco / ISP tender projects.
The 3G/4GLTE data rate is dependent on your local service provider.
Specifications in this datasheet are subject to change without prior notice |
