Model

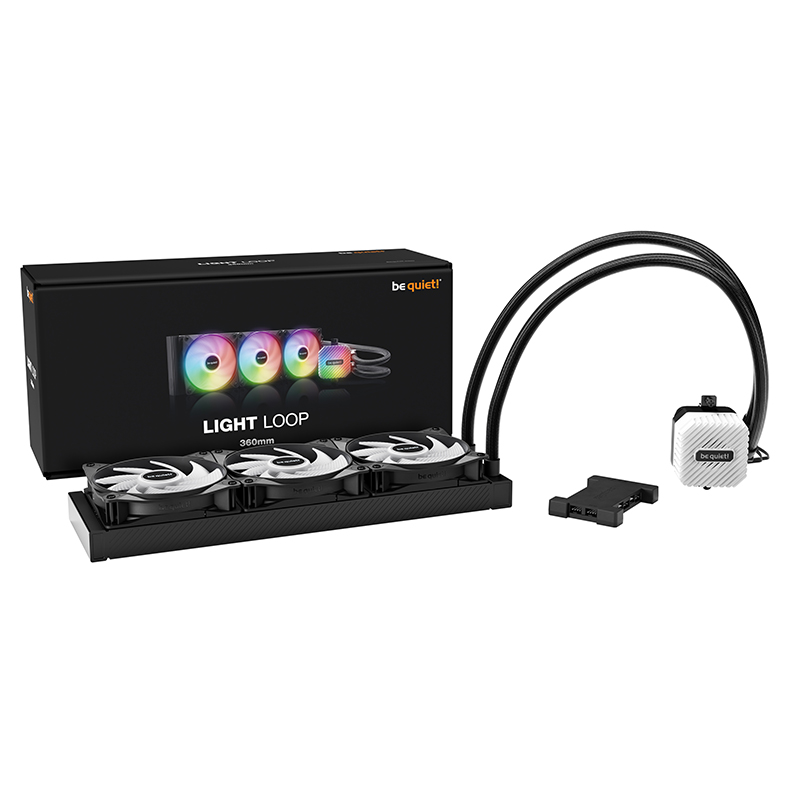

Light Loop 360mm

Color option

Black

Dimensions radiator, incl. fan (H x W x D), (mm)

397 x 120 x 52

Dimensions cooling block (H x W x D), (mm)

75 x 94 x 82

Total weight (kg)

1.48

Socket compatibility Intel

1851 / 1700 / 1200 / 1150 / 1151 / 1155

Socket compatibility AMD

AM5 / AM4

Noise level (dB(A)) at 50% / 75% /100% rpm

17.2 / 29.1 / 36.8

Number of fans

3

Lighting connector

3 Pin 5V Adressable

Tube length (mm)

400

Refill port

✓

PUMP SPECIFICATIONS

Pump speed (rpm)

2900

Pump adjustable (rpm)

1500 - 2900

Pump connector

4-pin PWM

RADIATOR SPECIFICATIONS

Dimensions (L x W x H), (mm)

397 x 120 x 27

Radiator material / finish

aluminum / black spray painted

Base material / finish

copper / nickel plated

FAN SPECIFICATIONS

Fan model

Light Wings LX 120mm PWM high-speed

Fan dimensions (mm)

120 x 120 x 25

Speed at 100% PWM (rpm)

2100

Airflow at 100% PWM / 12V (CFM / m3/h)

61.8 / 105.1

Air Pressure at 100% PWM / 12V (mm H2O)

2.51

Bearing technology

Rifle

Motor technology

4-pole fan motor

Rated Voltage (V)

12

Input current (A)

0.17

Safety current (A)

0.45

Input power (W)

5.4

Connector

4-pin PWM

Cable length (mm)

500

Lifespan (h / 25°C)

60,000

ACCESSORIES

Thermal grease (Type)

Included

Mounting set

Intel, AMD

Bottle of coolant (ml)

✓/ 100

ARGB-PWM-Hub

✓

User manual languages

CN, DE, EN, ES, FR, JP, PL, RU, TW, UA

SAFETY CERTIFICATIONS

Approvals

CE, FCC, UKCA

ENVIRONMENTAL DIRECTIVES

RoHS

✓

WEEE

✓

Triman

✓
