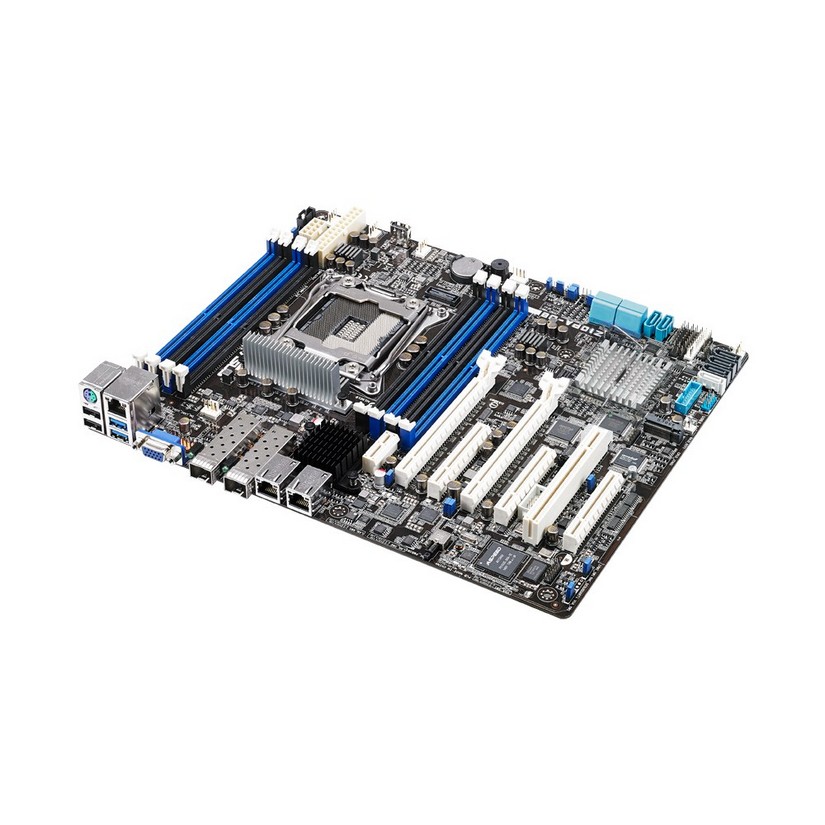

ATX Size Server Board with High Speed Networking Z10PA-U8/10G-2S is an ATX size with EEB mounting hole locations server board allowing this board to fit into many ATX cases.Through innovative and top-notch engineering design, this board features server performance with compact design, 10Gb Ethernet connection, enhanced storage expandability, premium components for premium efficiency. With support of the latest Intel® Xeon® processor E5-2600/1600 v3 product families, eight DIMM slots, ten 6 Gb/s SATA ports, and 10Gb Ethernet, Z10PA-U8/10G-2S is ideal for small and medium business, entry storage server, workstation graphics applications, and high speed networking environment. |
| Official Product Link | Open Link | | Processor / System Bus | 1 x Socket R3 (LGA 2011-3; Square type 80x80mm;The maximum length of the heatsink screw thread is 3.7mm.)
Intel® Xeon® processor E5-1600 v4 product family
Intel® Xeon® processor E5-1600 v3 product family
Intel® Xeon® processor E5-2600 v4 product family
Intel® Xeon® processor E5-2600 v3 product family
Intel® Core i7 Processors for LGA 2011-3 Socket | | Core Logic | Intel® C612 PCH | | Memory | Total Slots : 8 (4-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 512GB LRDIMM
Memory Type :
DDR4 2400 /2133 /1866/1600/1333 RDIMM*
DDR4 2400 /2133 /1866/1600/1333 LRDIMM*
DDR4 UDIMM non ECC and with ECC*3
Memory Size :
32GB, 16GB, 8GB, 4GB RDIMM
64GB, 32GB LRDIMM
16GB, 8GB, 4GB UDIMM
* Please refer to ASUS server AVL for the latest update
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. | | Expansion Slots | Total Slot : 6
Slot Location 1 : PCI-E x8 (Gen2 X4 Link)
Slot Location 2 : PCI 32bit/33MHz
Slot Location 3 : PCI-E x8 (Gen3 X8 Link)
Slot Location 4 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied
Slot Location 5 : PCI-E x8 (Gen3 X8 Link)
Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 5 is occupied
Slot Location 7 : MIO Slot for Audio card | | Form Factor | ATX (12"x9.6", 305mm x 244mm) *1 | | ASUS Features | FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASWM Enterprise | | Storage | SATA Controller :
Intel® C612
10 x SATA3 6Gb/s ports
or
9 x SATA3 6Gb/s ports + 1 x M.2 connector *2
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
LSI® MegaRAID (For Linux/Windows)
(Support Software RAID 0, 1, 10 )
SAS Controller :
ASUS PIKE II 3008 8-port SAS HBA card(Optional)
ASUS PIKE II 3108 8-port SAS HW RAID card(Optional) | | Networking | 2 x Intel® I210AT + 1 x Mgmt LAN
1 x Dual Port BCM57840S 10GbE LAN controller | | Graphic | Aspeed AST2400 with 32MB VRAM | | On Board I/O | 1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x Management Connector , Onboard socket for optional management card
1 x USB 3.0 pin header , Up to 2 Devices
1 x USB 2.0 pin header , Up to 2 Devices
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
2 x Front LAN LED
1 x Serial Port Header

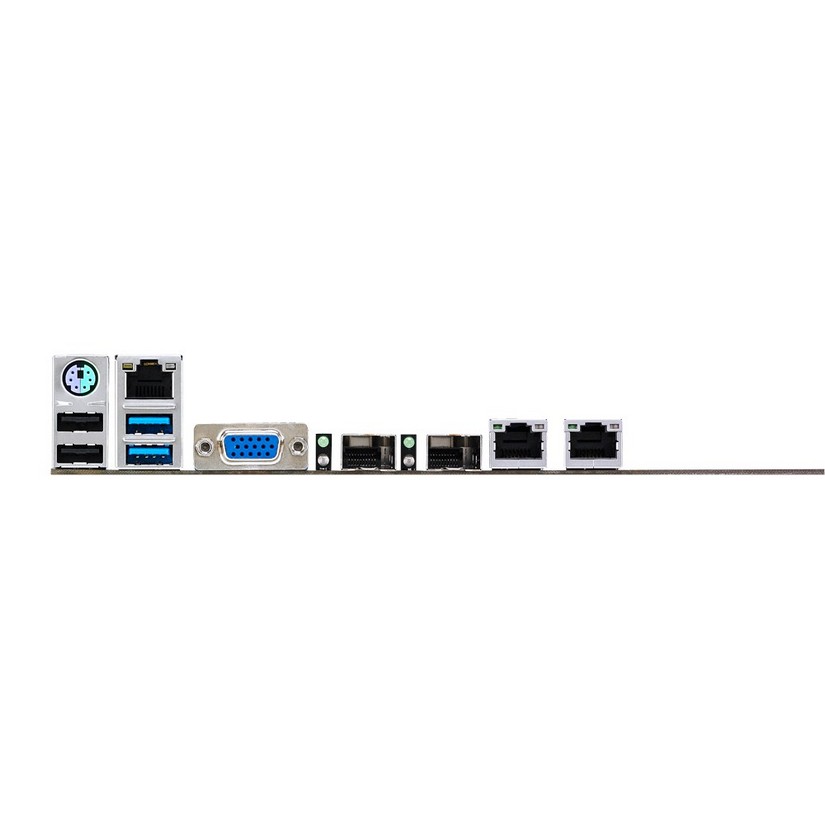

1 x M.2 Connector , NGFF Type : 2242, Capacity : 16~128GB | | Back I/O Ports | 2 x USB 3.0
2 x USB 2.0
1 x VGA Port
2 x GbE LAN
1 x Mgmt LAN
1 x PS/2 KB/Mouse
2 x SFP+ | | Management Solution | ASWM Enterprise
Optional ASMB8-iKVM for KVM-over-Internet | | Monitoring | CPU Temperature
Fan RPM | | Note | * Please refer to www.asus.com for latest momory AVL update *1: EEB Mounting Hole Locations *2: SATA 6Gb/s
*3 UDIMM available with Core i7 only |
* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.
|
