AX technology

Yes

Data Rate

WiFi 4 (802.11n) : up   to 300 Mbps
  802.11n TurboQAM : up to 400 Mbps
  802.11ax (5GHz) : up to 4804 Mbps
  WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

Antenna

External antenna x 4,   Internal antenna X 2

Transmit/Receive

2.4GHz 2x2
  5 GHz-1 2 x 2
  5GHz-2 4x4

Processor

1.8 GHz dual-core   processor

Memory

256 MB Flash, 512 MB   RAM

Boosts speed

OFDMA (Orthogonal   Frequency Division Multiple Access)
  Beamforming: standard-based and universal
  20/40/80/160 MHz bandwidth

Operating Frequency

2.4G Hz, 5 GHz-1, 5   GHz-2

Ports

RJ45 for Gigabits BaseT   for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
  USB 2.0 x 1
  USB 3.0 x 1

Button

WPS Button, Reset   Button, Power Button

LED Indicator

Power x 1
  Wi-Fi x 3
  WAN x 1
  LAN x 1

Power Supply

AC Input :   110V~240V(50~60Hz)
  DC Output : 19 V with max. 1.75 A current

Package content

RJ-45 Cable x1
  Power Adapter x1
  QSG x1
  Warranty Card x1

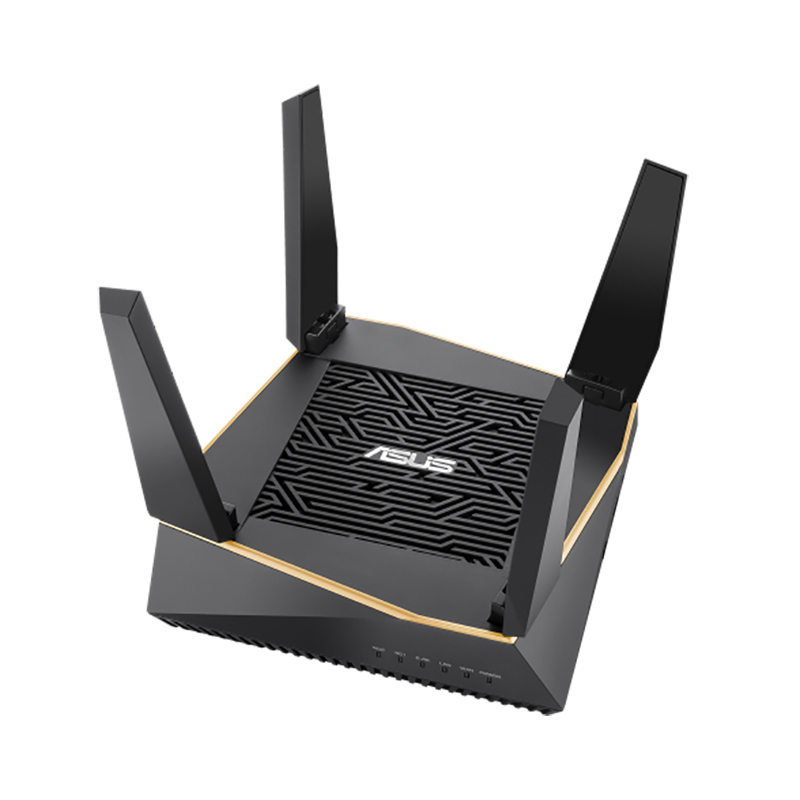

  RT-AX92U x1

Product Weight (g)

651

AiMesh

AiMesh : Yes
  Primary AiMesh router : Yes
  AiMesh node : Yes

Router APP

ASUS Router APP : Yes

Game

Game Boost/acceleration   : Yes
  WTFast : Yes

Alexa

Support Alexa skil :   Yes

IFTTT

Support IFTTT : Yes

AiProtection

AiProtection :   AiProtection Pro
  Router Security Assessment : Yes
  Malicious site blocking : Yes
  Two-Way IPS : Yes
  Infected Device Prevention and Blocking ; Yes

Parental Control

Parental Control : Yes
  Parental Control Customized Internet schedule : Yes

Traffic Control

Adaptive QoS : Yes
  Bandwidth Monitor : Yes
  Bandwidth limiter : Yes
  Maximum Bandwidth limiter rule : 32
  Traditional QoS : No
  Traffic Monitor : Yes
  Real-time traffic monitor : Yes
  Wired Traffic Monitor : Yes
  Wireless Traffic Monitor : Yes
  Traffic Analyzer : Yes
  Traffic analysis period : Daily, Weekly, Monthly
  Website history : Yes

Wireless

IPv6 : Yes
  MU-MIMO : Yes
  Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise   , WPA2-Enterprise , WPS support
  UTF-8 SSID : Yes
  Guest Network : Yes
  Maximum Guest Network rule : 2.4GHz x2, 5GHz-1 x2,5GHz-2 x4
  Guest Network Encryption : Open system, WPA/WPA2-Personal
  WPS : Yes
  Wi-Fi MAC address filter : Yes
  Maximum MAC filters : 64
  Wireless scheduler : Yes
  Airtime fairness : Yes
  RADIUS Server : Yes
  Universal beamforming : Yes
  Explicit beamforming : Yes
  IGMP snooping : Yes

WAN

Internet connection   Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
  Dual WAN : Yes
  WAN Aggregation : Yes
  3G/4G LTE dongle : Yes
  Android tethering : Yes
  Port forwarding : Yes
  Maximum port forwarding rule : 64
  Port triggering : Yes
  Maximum port triggering rule : 32
  DMZ : Yes
  DDNS : Yes
  NAT Passthrough : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
  Let's Encrypt : Yes

LAN

DHCP Server : Yes
  IPTV : Yes
  LAN Link Aggregation : Yes
  Manually assign IP address : Yes
  Maximum manually assign IP address rule : 64

VPN

VPN Client L2PT : Yes
  VPN Client OVPN : Yes
  VPN Client PPTP : Yes
  VPN Server IPSec : Yes
  VPN Server OVPN : Yes
  VPN Server PPTP : Yes
  VPN Fusion : No

USB application

File System :   FS_Tuxera_HFS+,FS_Tuxera_NTFS,FS_Tuxera_vFAT,FS_ext2,FS_ext3,FS_ext4
  3G/4G LTE dongle : Yes
  HDD hibernation : Yes
  Safely Remove disk : Yes
  AiCloud : Yes
  Download master : Yes
  AiDisk : Yes
  Media Server : Yes
  Time Machine : Yes
  Samba Server : Yes
  FTP Server : Yes
  Shared Folder privileges : Yes

Administration

Operating mode :   Accesspoint, AiMeshnode, Mediabridge, Repeater, Router
  Operating system : ASUSWRT
  Free OS upgrade : Yes
  Firewall : Yes
  Maximum Firewall keyword filter : 64
  Maximum Firewall network service filter : 32
  Maximum Firewall URL filter : 64
  Wake on LAN (WOL) : Yes
  SSH : Yes
  Configuration backup and restore : Yes
  Diagnosis tools : Yes
  Feedback system : Yes
  System log : Yes
