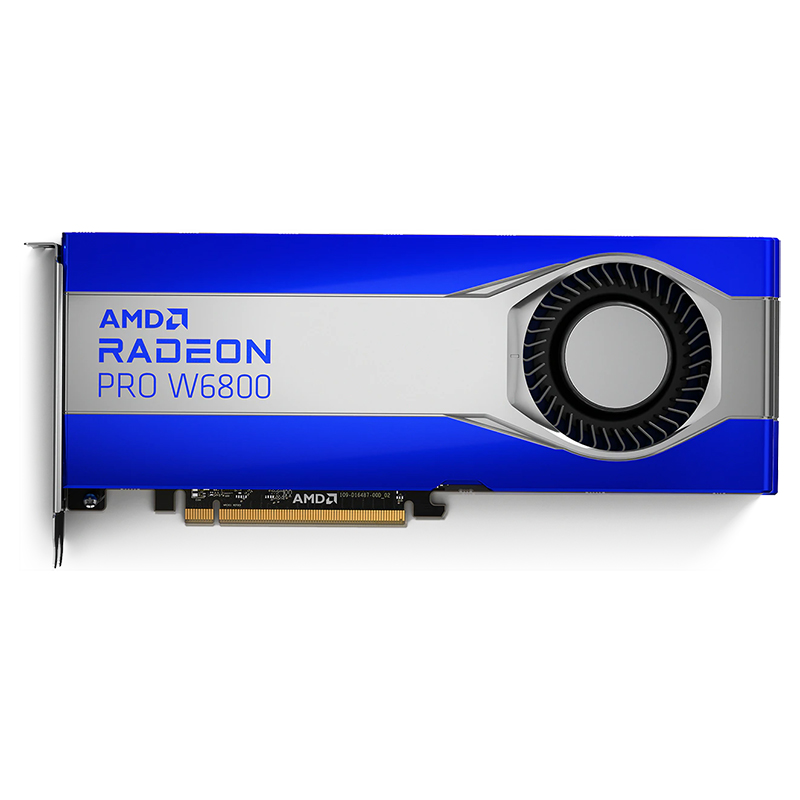

AMD Radeon Pro W6800 32G Workstation Graphics Card (100-506157)

AMD Radeon Pro W6800 32G Workstation Graphics Card (100-506157)
  • 61264_thumb_P_1637126224059
$2,998.5
Was: $3,399.0  WAS Tips    Save $400.5
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    AMD Radeon Pro W6800 32G Workstation Graphics Card (100-506157)
  • Model Number:
    100-506157
  • Brand:
  • Warranty Period:
    3 Year

Description

1637126146483040



SPECIFICATIONS:

GPU   Specifications


GPU Architecture

AMD RDNA™ 2

Hardware Raytracing

Yes

Lithography

TSMC 7nm FinFET

Ray Accelerators

60

Stream Processors

3840

Compute Units

60

Peak Half Precision   (FP16) Performance

35.66 TFLOPs

Peak Single Precision   (FP32) Performance

17.83 TFLOPs

Peak Double Precision   (FP64) Performance

1.11 TFLOPs

Transistor Count

26.8 Billion

OS Support

Windows 11 - 64-Bit   Edition

Windows 10 - 64-Bit   Edition

Linux x86_64

Requirements


External Power Connectors

1x PCIe® 6-pin, + 1x   PCIe® 8-pin

Total Board Power (TBP)

250W Peak

PSU Recommendation

650W Minimum

GPU Memory


Dedicated Memory Size

32 GB

Dedicated Memory Type

GDDR6

Infinity Cache

128 MB

Memory Interface

256-bit

Peak Memory Bandwidth

Up to 512 GB/s

Memory ECC Support

Yes

Board Specifications


Form Factor

PCIe® Add-in Card

Bus Type

PCIe® 4.0 x16

Cooling

Active

Display Outputs


DisplayPort™

6x Mini-DisplayPort™   1.4 with DSC

Display Configurations

6x @ 5120x2880px (5K)

2x @ 7680x4320px (8K)

HDR Support

Yes

8K Support

Yes

Dimensions


Board Height

Full Height

Board Length

10.5" (267 mm)

Board Width

Double Slot

Additional Features


Supported Rendering   Formats

4K H264 Encode and   Decode

AV1 Decode

H265/HEVC Encode and   Decode

Supported Technologies

AMD Remote Workstation

AMD Radeon™ Media   Engine

AMD Radeon™ PRO   Software

AMD Radeon™ VR Ready   Creator

AMD Eyefinity   Technology (Professionals)

AMD Radeon™ ProRender

3D Stereo Support

Yes

Software API Support


DirectX®

12.0 (feature level   12_1)

OpenGL®

4.6

OpenCL™

2.1

Product Basics


Product Family

AMD Radeon™ Pro

Product Line

AMD Radeon™ PRO W6000   Series

Platform

Desktop

Launch Date

06/08/2021
