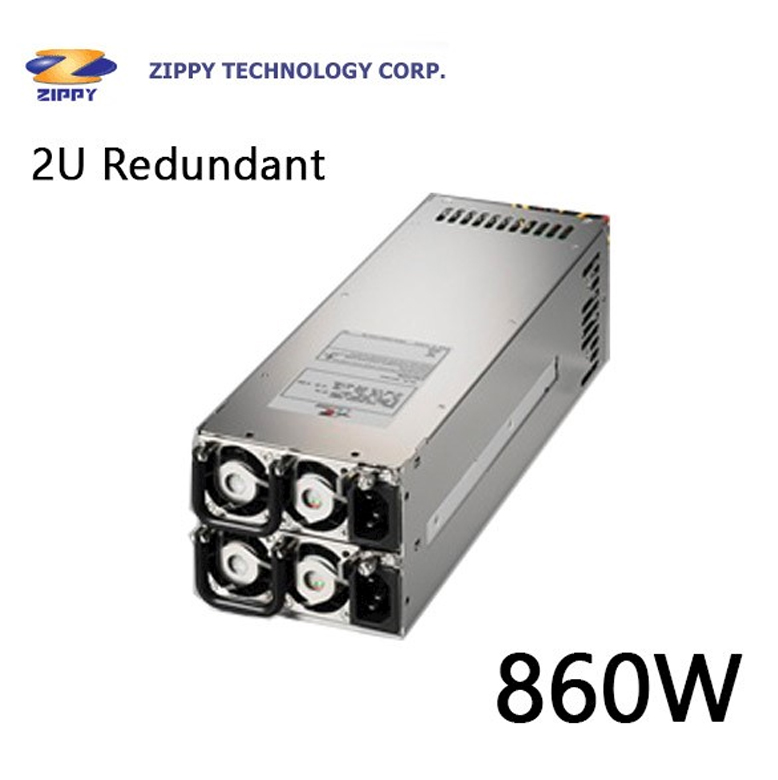

Zippy 860W 2U Redundant Power Supply (G1W2-5860V3V)

Zippy 860W 2U Redundant Power Supply (G1W2-5860V3V)
  • 49937_thumb_P_1551335856951
$798.5
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Zippy 860W 2U Redundant Power Supply (G1W2-5860V3V)
  • Model Number:
    G1W2-5860V3V
  • Brand:
  • Manufacturer Warranty:
    3 Year

Description

Zippy 860W 2U Redundant Power Supply (G1W2-5860V3V)


FEATURES:


* TEMPERATURE RANGE: OPERATING: 0ā„ƒ ~ 40ā„ƒ, STORAGE: -20ā„ƒ ~ 80ā„ƒ

* HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE

* EFFICIENCY: >80% TYPICAL AT 115 VAC FULL LOAD

* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms

* REMOTE ON/OFF CONTROL

* OVER POWER PROTECTION:110%~150%

* OVER VOLTAGE PROTECTION: +5Vā†’5.7~6.2V, +3.3Vā†’3.7~4.1V, +12Vā†’13.3~14.3V;

* SHORT CIRCUIT: +5V, +3.3V, +12V, -12V, +5VSB

* OVER CURRENT PROTECTION: +5Vā†’35~48A, +12Vā†’77~105A, +3.3Vā†’35~48A

* SAFETY: TO MEET UL, CUL, TUV, CB

* LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 250VAC

* EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A

* WARMING METHOD: BUZZER SOUND, TTL, FAULT LED



*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.


Zippy 860W 2U Redundant Power Supply (G1W2-5860V3V)


OUTPUT WATTAGE:

860W


BEST SOLUTION FOR:

Server ,Workstation ,Storage System ,IPC


DIMENSION:

300x101.2x84(mm)


11.81x3.98x3.31(inch)


INPUT SPEC:

VOLTAGE: 90V ~ 264VAC (WITH Ā± 10% TOLERANCE)

FREQUENCY: 47Hz ~ 63Hz

INPUT CURRENT: 13/6.5A MAX AT ANY LOW/HIGH INPUT VOLTAGE

INRUSH CURRENT: 60/80A @ 115/230VAC (25ā„ƒ)

POWER FACTOR CORRECTION: 95% @ 110V, FULL LOAD


DC OUTPUT SPEC:


Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]
+5V0.532Ā±5%Ā± 1%50mV
+12V270Ā± 5%Ā± 1%
-12V00.8Ā± 10%Ā± 1%120mV
+3.3V0.532Ā± 5%Ā± 1%50mV
+5VSB0.13.5Ā± 5%Ā± 1%50mV

+5V AND +3.3V TOTAL OUTPUT MAX: 190W

TOTAL OUTPUT MAX: 860W
