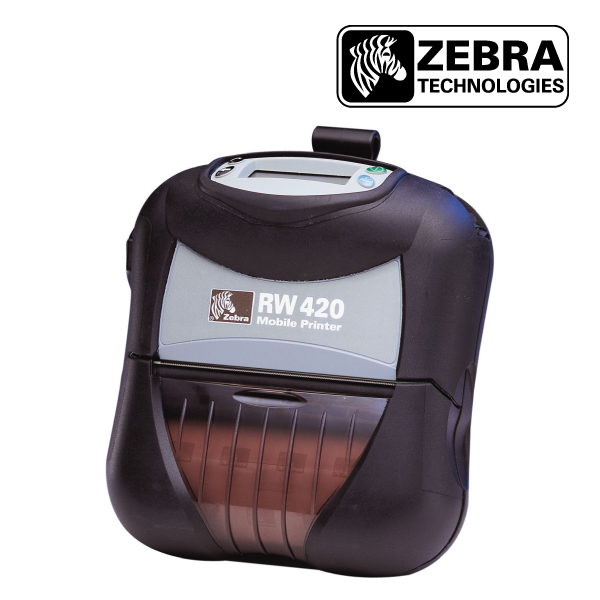

Zebra RW420 8MB/16MB Bluetooth Standard Media LCD

Zebra RW420 8MB/16MB Bluetooth Standard Media LCD
  • 31145
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.


- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.


  • Product Name:
    Zebra RW420 8MB/16MB Bluetooth Standard Media LCD
  • Model Number:
  • Brand:
  • Manufacturer Warranty:
    1 Year



Road Warrior! This rough and-tough receipt and limited-label printer is IP54-rated for harsh environments, and offers LCD for battery/ network status, vehicle cradles for convenient on-the-road operation, and card readers for in-the-field payment processing.

RW 420 Mobile Printer
Print invoices, receipts, labels and more up to 4 inches wide with durable mobile printers that meet IP54 dust and water resistance requirements.

Standard Features
Print method: Direct thermal
Construction: Impact-modified polycarbonate with fused oil-and-abrasion-resistant rubber overmold (six-foot drop protection)
Smart battery management (monitors battery for longer life and performance)

More Standard Features

  • 4 button angled LCD (standard)
  • Resident scalable fonts
  • Media sensors: Bar, gap
  • Advanced 32 bit architecture for high-speed processing
  • Standard Serial and USB interfaces
  • Programming Language: Native CPCL, ZPL, EPL and XML support(standard)
  • Auto-detect firmware load

  • Download RW 420 Print Station BrochureDownlaod Link
    Printer Specifications

    Resolution 203 dpi (8 dots/mm)

  • 8 MB Flash
  • 16 MB RAM

  • Print width 4.09" (104 mm) maximum
    Print length Maximum print length at least 36" (914 mm) - actual length depends upon total memory usage
    Print speed 3" (76 mm)/sec

    Optional Features
  • BT
  • 802.11b/g
  • Dual radio
  • Card readers
  • Fanfold slot

  • Media Characteristics Maximum label and liner width 4.12"/105 mm
    Minimum label and liner width 2"/51 mm
    Media width 2" x 4.12"
    Maximum roll diameter 2.25" (57 mm)
    Core diameter .75" (19 mm) or 1.38" (34.9 mm)
    Media thickness .002" (.05 mm) to .0063" (0.16 mm)
    Media types receipt, tag, gap, continuous receipt, continuous, linerless
    Operating Characteristics

    Operating temperature DT: Operating temperature -4° F (-20° C) to 131° F (55° C) Direct thermal
    Storage temperatures -22° F (-30° C) to 149° F (65° C)
    Operating humidity 10-90% non-condensing
    Storage humidity 10-90% non-condensing

  • External charging options
  • Shock mounted internal components
  • Standard cable connection: RS-232, RJ-45 10 pin
  • Selectable baud rate: 9600 to 115.2 Kbps
  • Xon/Xoff or hardware flow control (RTS/CTS)
  • USB full speed support, 12 Mbits/second
  • Optional Bluetooth, 802.11g or 802.11b

  • Lithium Ion
    4.0 Ah
    7.4 V
    Agency approvals

  • FCC Part 15 Class B
  • Canadian ICES-003
  • VCCI
  • CE compliance (Class B)
  • C-Tick
  • CSA

  • Physical Characteristics Width 6.3" (160 mm)
    Height 6.9" (175 mm)
    Depth 3.0" (76 mm)
    Weight 2.0 lbs (0.907 kg)
    Orientation Center
    PROGRAMMING LANGUAGES Core programming languages CPCL-native, ZPL, EPL, EPL2, XML
    Bar Codes/ Symbologies

    Linear Code 39
    Code 93
    Code 128
    UPC and EAN 2 or 5 digit extensions
    Interleaved 2-of-5
    2-dimensional PDF417
    Data Matrix
    RSS / GS1 DataBar family (12 barcodes)
    QR Code
    Fonts and Graphics

  • Standard Fonts: 25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed); Contains UFST from Agfa Monotype Corporation
  • Optional Fonts: downloadable bitmapped and scalable fonts
  • International Character Sets (optional):
    Chinese 16x16 (trad), 16x16 (simplified), 24x24 (simplified)
    Japanese 16x16, 24x24
  • Supports user-defined fonts and graphics--including custom logos

  • * Specifications are subject to change without notice.
    * Specifications may vary.
    * The product picture(s) is only for your reference, it may differ from the actual product.
