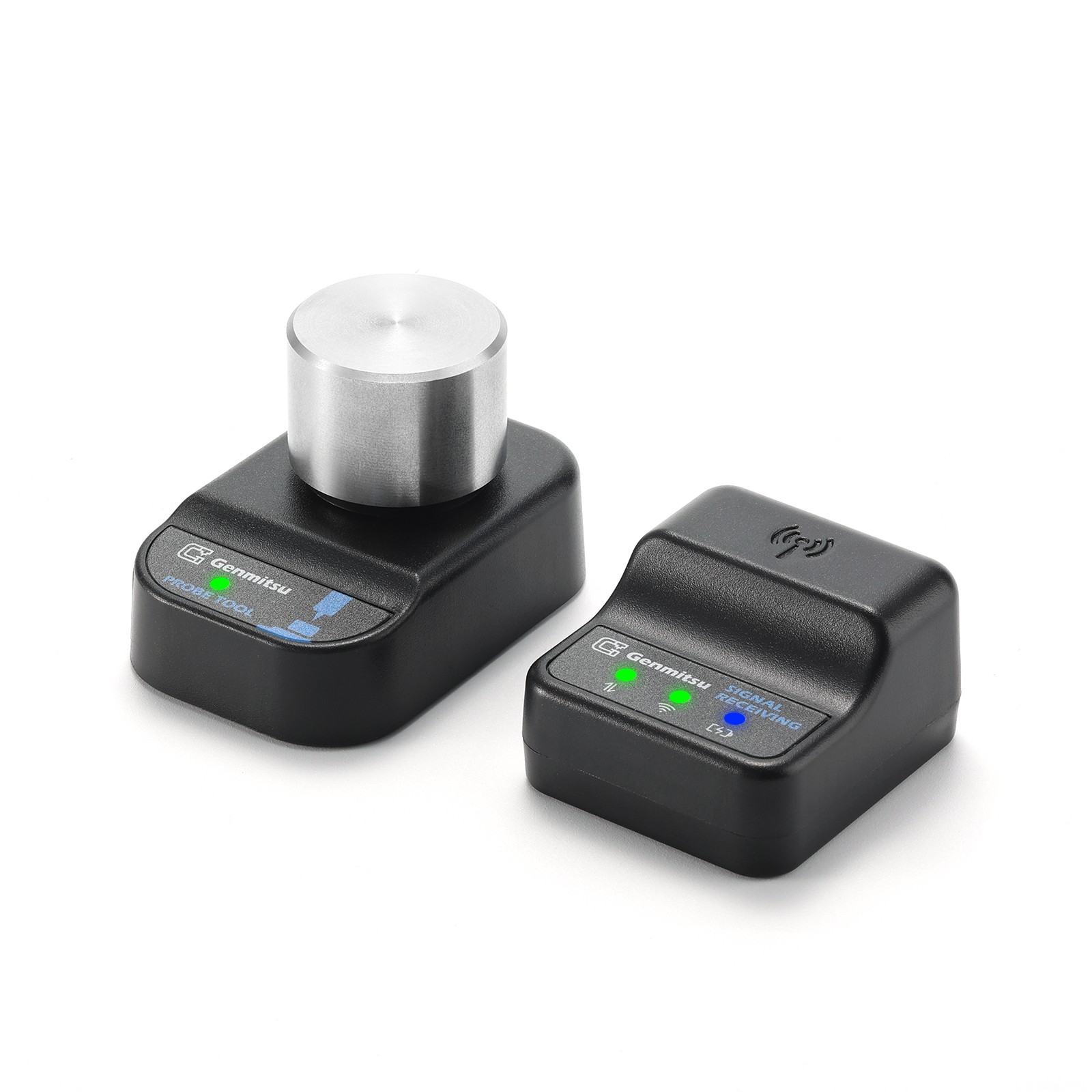

Wireless Z-Axis Probe Tool Setter for CNC Router Machine, Tool Setting Touch Probe with 3-Pin Cable DC 5–24V, 0.02mm Accuracy, GRBL & Mach3 & Genmitsu

Wireless Z‑axis probe with 0.02 mm repeatability, 20 m range, CR2032 battery (~3000 cycles). Includes 200 mm Genmitsu XH2.54‑3 pin cable and universal 3‑pin header (NO logic) for GRBL/Mach3. Works on metal, wood, acrylic.

Wireless Z-Axis Probe Tool Setter for CNC Router Machine, Tool Setting Touch Probe with 3-Pin Cable DC 5–24V, 0.02mm Accuracy, GRBL & Mach3 & Genmitsu
  • Laser-Engravers-Wireless-Z-Axis-Probe-Tool-Setter-for-CNC-Router-Machine-Tool-Setting-Touch-Probe-with-3-Pin-Cable-DC-5-24V-0-02mm-Accuracy-GRBL-Mach3-Genmitsu-1
  • Laser-Engravers-Wireless-Z-Axis-Probe-Tool-Setter-for-CNC-Router-Machine-Tool-Setting-Touch-Probe-with-3-Pin-Cable-DC-5-24V-0-02mm-Accuracy-GRBL-Mach3-Genmitsu-2
  • Laser-Engravers-Wireless-Z-Axis-Probe-Tool-Setter-for-CNC-Router-Machine-Tool-Setting-Touch-Probe-with-3-Pin-Cable-DC-5-24V-0-02mm-Accuracy-GRBL-Mach3-Genmitsu-3
  • Laser-Engravers-Wireless-Z-Axis-Probe-Tool-Setter-for-CNC-Router-Machine-Tool-Setting-Touch-Probe-with-3-Pin-Cable-DC-5-24V-0-02mm-Accuracy-GRBL-Mach3-Genmitsu-4
  • Laser-Engravers-Wireless-Z-Axis-Probe-Tool-Setter-for-CNC-Router-Machine-Tool-Setting-Touch-Probe-with-3-Pin-Cable-DC-5-24V-0-02mm-Accuracy-GRBL-Mach3-Genmitsu-5
  • Laser-Engravers-Wireless-Z-Axis-Probe-Tool-Setter-for-CNC-Router-Machine-Tool-Setting-Touch-Probe-with-3-Pin-Cable-DC-5-24V-0-02mm-Accuracy-GRBL-Mach3-Genmitsu-6
$71.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post In Stock
    QLD Pickup
    • Chermside New Next Business Day
    • Southport Next Business Day
    • Hillcrest Icon 3 Next Business Day
    • Brendale 3-4 Hours
    NSW Pickup & Post
    • Post In Stock
    • Villawood Robot Super StoreIcon 3 In Stock
    • West Ryde 1-2 Days
    • Ultimo 1-2 Days
    • Auburn 1-2 Days
    • Annandale 1-2 Days
    • Crows Nest New 1-3 Days
    • Carlingford New 1-3 Days
    • Hurstville New 1-3 Days
    • Mosman New 1-3 Days
    • Parramatta New 1-3 Days
    • Goulburn New 2-3 Days
    VIC Pickup & Post
    • Post In Stock
    • Mulgrave Robot Super StoreIcon 3 In Stock
    • Mitcham 2-3 Days
    • Essendon 2-3 Days
    • Dandenong South Icon 3 In Stock
    ACT Pickup
    • Fyshwick 2-3 Days
    SA Pickup & Post
    • Post In Stock
    • Croydon Robot Super StoreIcon 3 In Stock
    • Holden Hill 4-6 business days
    • Adelaide CBD Icon 3 4-6 business days
    WA Pickup & Post
    • Post In Stock
    • Belmont Robot Super StoreIcon 3 In Stock
    • Balcatta 8-10 business days
    TAS Post
    • Post In Stock
    • Glenorchy

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

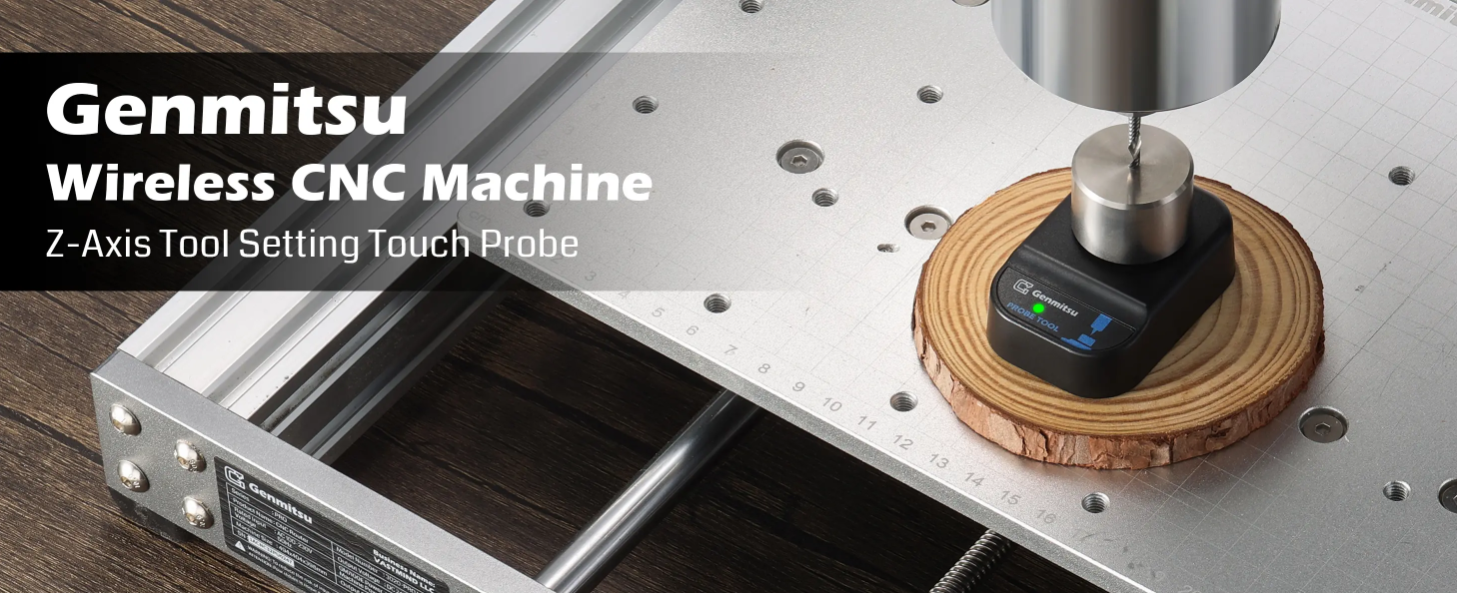

Automated Z-Axis Tool Setting: The Genmitsu Z-axis probe enables your CNC machine to automatically find the surface zero point within 0.02mm accuracy, guaranteeing perfect first-layer results every time

Seamless Genmitsu Fit: Comes with a 200mm XH2.54 3-pin terminal cable designed for Genmitsu CNC routers: 3020-PRO MAX V2; 3020-PRO Ultra; 4040 RENO; 4040-PRO; 4040-PRO MAX. No cutting or soldering required

Universal DIY Compatibility: Includes a 3-pin open header cable for connecting to most GRBL and Mach3 control boards. Note: Operates on Normally Open (NO) logic.

Wireless Freedom: Enjoy a clean desktop with stable wireless transmission (up to 20m range), eliminating messy cables and alligator clips. It works perfectly on both conductive (metal) and non-conductive materials (wood, acrylic, plastic), greatly simplifying your tool-changing workflow.

Safety Design: The built-in spring under the touch plate structure absorbs impact to prevent router bit breakage, ensuring safe operation.

Long Life: Powered by a CR2032 battery for up to 3,000 uses. The stainless steel contact surface ensures lasting durability and wear resistance for heavy use.

Laser-Engravers-Wireless-Z-Axis-Probe-Tool-Setter-for-CNC-Router-Machine-Tool-Setting-Touch-Probe-with-3-Pin-Cable-DC-5-24V-0-02mm-Accuracy-GRBL-Mach3-Genmitsu-9
Laser-Engravers-Wireless-Z-Axis-Probe-Tool-Setter-for-CNC-Router-Machine-Tool-Setting-Touch-Probe-with-3-Pin-Cable-DC-5-24V-0-02mm-Accuracy-GRBL-Mach3-Genmitsu-10
Laser-Engravers-Wireless-Z-Axis-Probe-Tool-Setter-for-CNC-Router-Machine-Tool-Setting-Touch-Probe-with-3-Pin-Cable-DC-5-24V-0-02mm-Accuracy-GRBL-Mach3-Genmitsu-11

Specifications

Probe Tool Module
Operating VoltageDC 5V - 24V
Operating CurrentAverage 100mA, Typical 30mA
Wireless Range20 Meters
Maximum Supported Load24V / 500mA
Signal Receiving Module
Operating VoltageDC 2.4V - 3.6V
Battery TypeCR2032
Battery Capacity20mA
Probing Cycles per Full BatteryApproximately 3,000 (varies depending on battery condition)
Wireless Range20 Meters
Repeatability Accuracy0.02mm
Compatibility
XH2.54-3 Pin Terminal CableGenmitsu 3020-PRO MAX V2; 3020-PRO Ultra; 4040 RENO; 4040-PRO; 4040-PRO MAX;
3-Pin Open Header Cable(Gray: 5-24V, Black: GND, Black: IN) for connecting to most GRBL and Mach3 control boards. Note: Operates on Normally Open (NO) logic

What's in the box

  • 1 x Probe Tool Module
  • 1 x Signal Receiving Module
  • 1 x 200mm XH2.54-3 Pin terminal cable
  • 1 x 200mm 3-Pin open header cable
  • 1 x Double-sided Adhesive Pad
  • 1 x User Manual


  • Product Name:
    Wireless Z-Axis Probe Tool Setter for CNC Router Machine, Tool Setting Touch Probe with 3-Pin Cable DC 5–24V, 0.02mm Accuracy, GRBL & Mach3 & Genmitsu
  • Model Number:
    101-63-WZ5
  • Brand:
    Genmitsu
  • Warranty Period:
    1 Year
