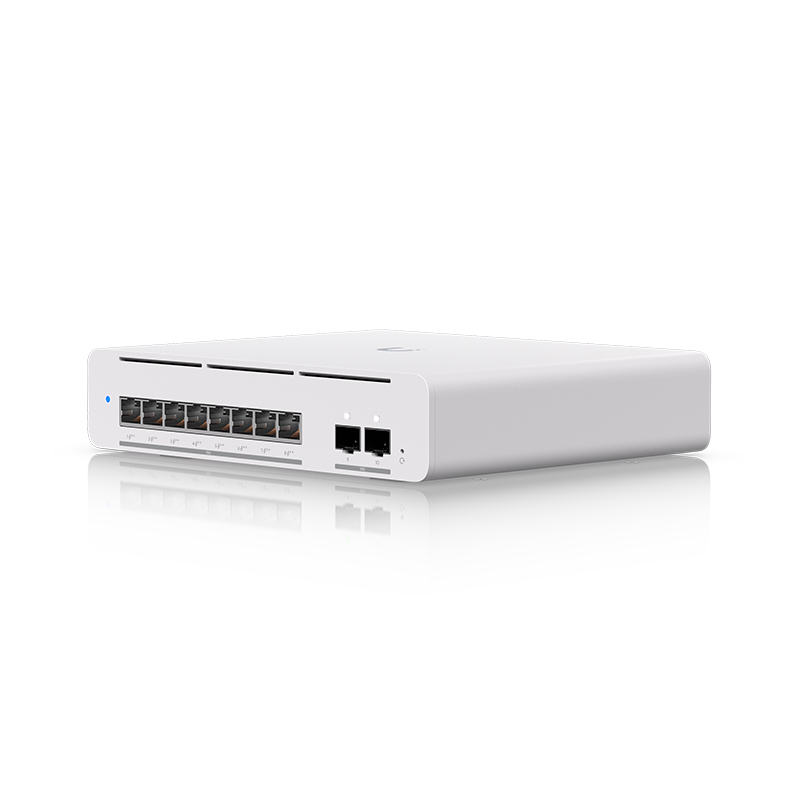

Ubiquiti UniFi Pro XG 8 Port 10Gbe PoE++ Switch - White (USW-Pro-XG-8-PoE)

8‑port PoE++ (60 W/port, 155 W total) + 2 × 10G SFP+, 200 Gbps switching, 100 Gbps non‑blocking, Layer‑3 routing, DHCP, VLANs, LACP, STP, QoS, IGMP, 802.1X, Pro AV, Etherlighting, NDAA‑compliant.

Ubiquiti UniFi Pro XG 8 Port 10Gbe PoE++ Switch - White (USW-Pro-XG-8-PoE)
  • Switches-Ubiquiti-UniFi-Pro-XG-8-Port-10Gbe-PoE-Switch-White-USW-Pro-XG-8-PoE-7
  • Switches-Ubiquiti-UniFi-Pro-XG-8-Port-10Gbe-PoE-Switch-White-USW-Pro-XG-8-PoE-3
  • Switches-Ubiquiti-UniFi-Pro-XG-8-Port-10Gbe-PoE-Switch-White-USW-Pro-XG-8-PoE-2
  • Switches-Ubiquiti-UniFi-Pro-XG-8-Port-10Gbe-PoE-Switch-White-USW-Pro-XG-8-PoE-4
  • Switches-Ubiquiti-UniFi-Pro-XG-8-Port-10Gbe-PoE-Switch-White-USW-Pro-XG-8-PoE-5
$1,039.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Switches-Ubiquiti-UniFi-Pro-XG-8-Port-10Gbe-PoE-Switch-White-USW-Pro-XG-8-PoE-1




SPECIFICATIONS:

OVERVIEW


Dimensions

210.4 x 173.8 x 43.7 mm

(8.28 x 6.84 x 1.7")

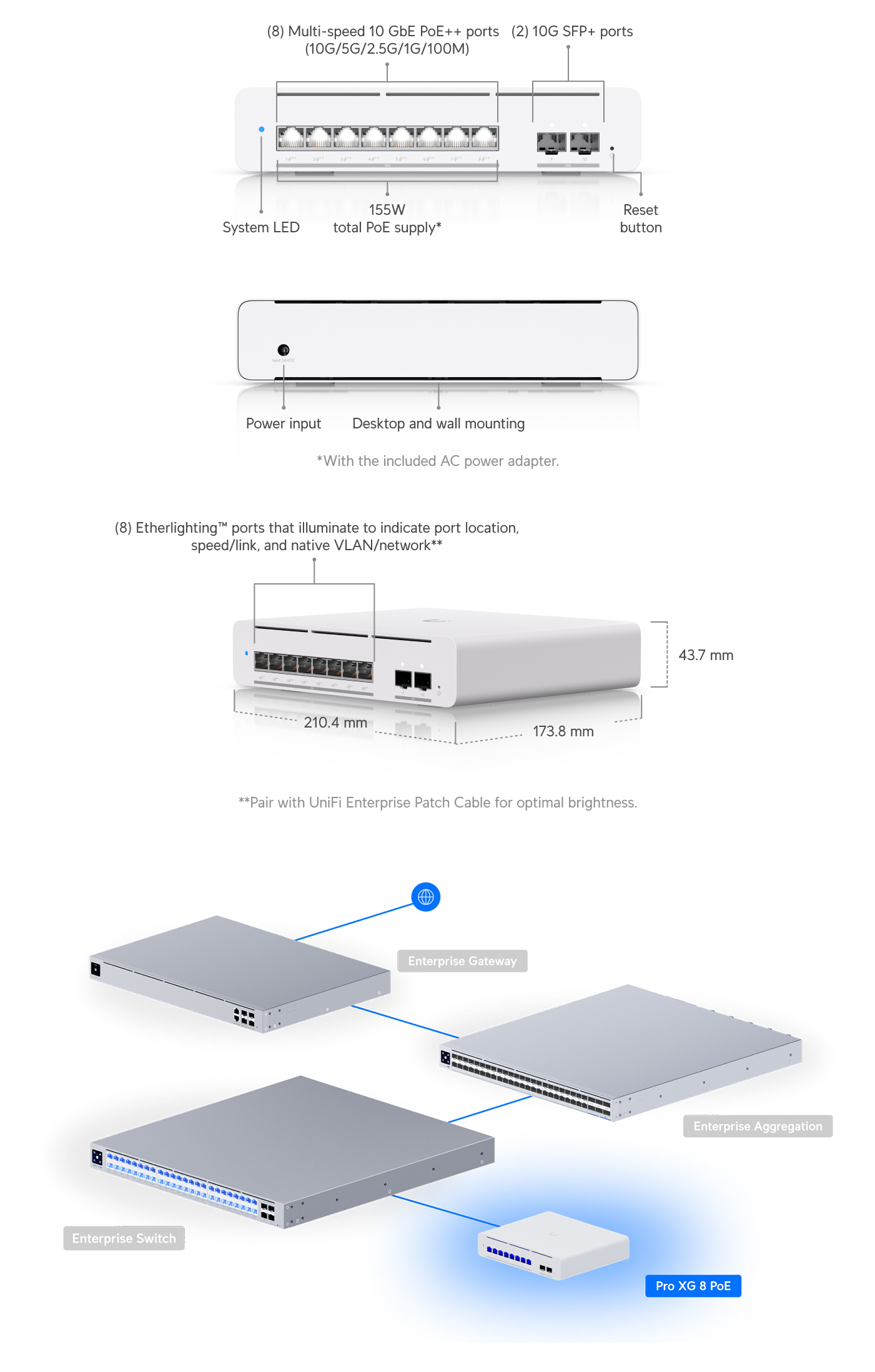

Port Layout

10 GbE RJ45

8 (All PoE++)

(10G/5G/2.5G/1G/100M)



10G SFP+

2

(10G/1G)

Max. PoE Output

Up to PoE++

Total PoE Availability

155W

Layer 3



Form Factor

Compact desktop, wall

Etherlighting™



PERFORMANCE


Switching Capacity

200 Gbps

Total Non-Blocking Throughput

100 Gbps

Forwarding Rate

149 Mpps

Supported VLANs

1,000

MAC   Address Table Size

32,000

IPv4 Static Routes

256

Packet Buffer Size

2 MB

Access Lists

IPv4

128



MAC

128

Layer 3 Features

DHCP Server (Local Networks)

DHCP Relay

Inter-VLAN Routing (Local Networks)

Static Routing (Local Networks)

Layer 2 Features

LACP Port Aggregation

STP & RSTP

QoS (DSCP)

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

IGMP Snooping

802.1X Control

MAC-Based ACLs & Device Isolation

DHCP Snooping & Guarding

Egress Rate Limit

Flow Control

Storm Control

Multicast & Broadcast Rate Limiting

MAC Address Blocking

IP-Based ACLs & Network Isolation

MAC-Based Port Restriction

Port Isolation

Port Mirroring

Jumbo Frames

LLDP-MED

Voice VLAN

Loop Protection

Virtual Network Override

HARDWARE


PoE Ports

PoE++: 8

Max. PoE Wattage per Port by PSE

PoE: 15.4W

PoE+: 30W

PoE++: 60W

Max. Power Consumption

61W (Excluding PoE output)

210W (Including PoE output)

Power Method

AC/DC Adapter (included)

Power Input Method

DC input

Power Supply

AC/DC, external, 210W

Supported Voltage Range

50–57V DC

Management

Ethernet

Weight

1.6 kg (3.5 lb)

Enclosure Material

SGCC steel

Mount Material

Polycarbonate

ESD Protection

Air: ± 30kV, contact: ± 30kV

Ambient Operating Temperature

-5 to 45° C (23 to 113° F)

Ambient Operating Humidity

10 to 90% noncondensing

Etherlighting™

Ethernet: ✓

SFP+: ✓

LEDs

System: ✓

NDAA Compliant



Certifications

CE, FCC, IC, Anatel: 04322-25-08356

SOFTWARE


Application Requirements

UniFi Network

Version 9.0.114 and later




  • Product Name:
    Ubiquiti UniFi Pro XG 8 Port 10Gbe PoE++ Switch - White (USW-Pro-XG-8-PoE)
  • Model Number:
    USW-Pro-XG-8-PoE
  • Brand:
  • Warranty Period:
    1 Year
