MECHANICAL |
|

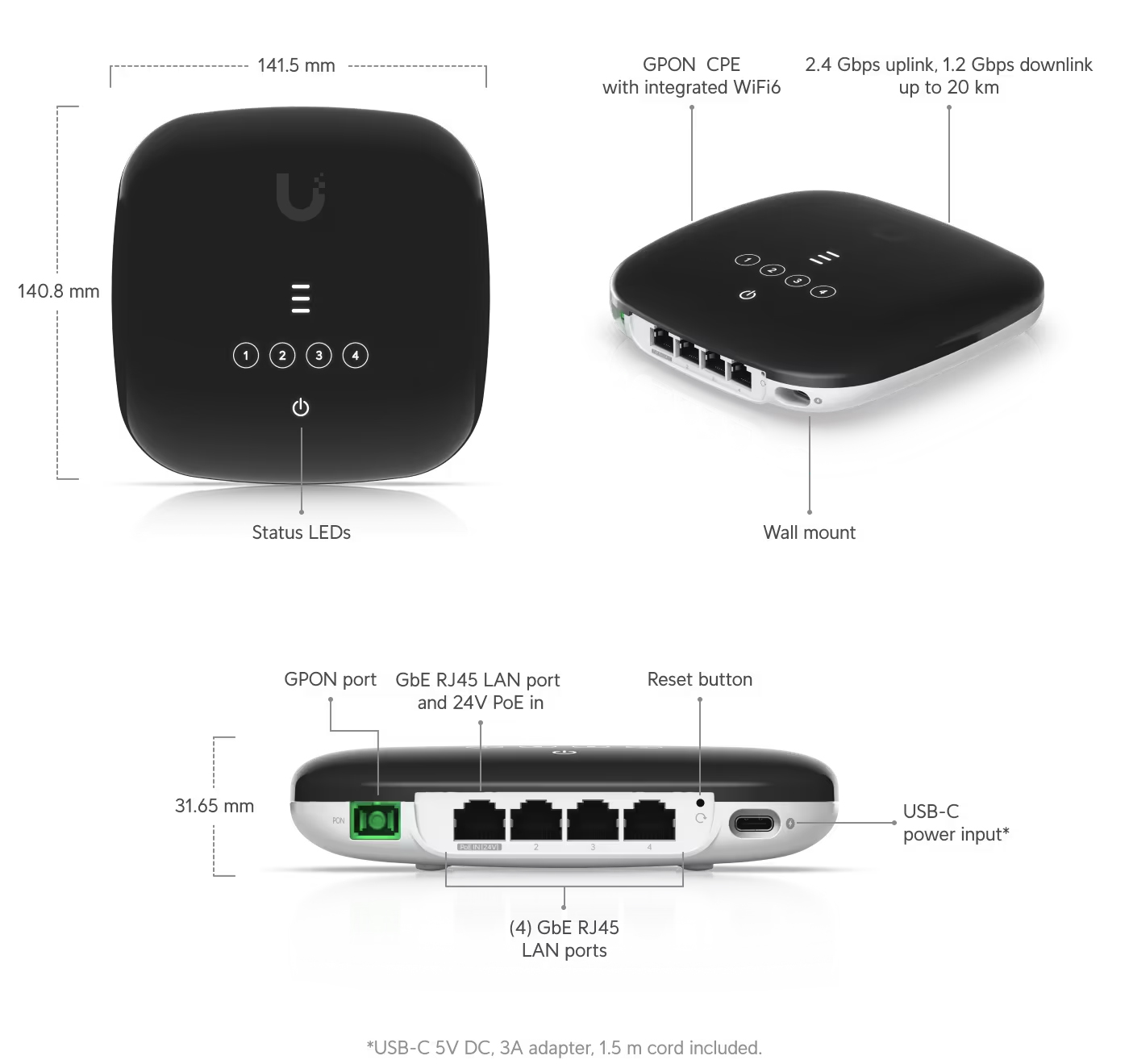

Dimensions | 140.8 x 141.5 x 31.7 mm (5.5 x 5.6 x 1.3") |
Weight | 415 g (14.6 oz) |
Enclosure material | UV-stabilized polycarbonate (PC110U) |
HARDWARE |
|
Networking interface | (1) SC/APC, ITU-G.984 GPON WAN port
(4) GbE RJ45 LAN ports
WiFi 802.11ax 5/2.4 GHz channels |
Management interface | Ethernet In-Band
PON |
Power method | USB-C 5V DC, 3A
24V passive PoE, 0.5A |
Power supply | 5V DC, 3A power adapter, 1.5 m cord (included)
Passive PoE 2-pair (4, 5+; 7, 8-) |
Supported voltage range | 10–30V DC (passive PoE)
5V DC (adapter) |
Max. power consumption | 11W |
Total non-blocking line rate
Downstream
Upstream |
2.488 Gbps
1.244 Gbps
|
Normal range of optical module
TX
RX |
0.5 to 5 dBm
-8 to -28 dBm
|
Max. WiFi TX power
2.4 GHz
5 GHz |
20 dBm
20 dBm
|
MIMO
2.4 GHz
5 GHz |
2 x 2
2 x 2
|
Max. WiFi radio rate
2.4 GHz
5 GHz |
300 Mbps
1.2 Gbps
|
Antenna gain
2.4 GHz
5 GHz |
1 dBi
3 dBi
|
Button | (1) Factory reset |
Ambient operating temperature | -15 to 45° C (5 to 113° F) |
Ambient operating humidity | 10 to 90% noncondensing |
Certifications | FCC, IC, CE |
NDAA Compliant | Yes |
LEDS |
|
PON status | (3) signal LEDs
All-OFF: bootup
1x orange: signal too low (< -28 db)
1x white: signal low (>= -28 db)
2x white: signal good (>= -25 db)
3x white: signal strong (>= -11 db)
1x orange + 2x white: signal too strong (>= -8 db)
3x orange: no signal
LEDs alternate between orange + white + orange and a signal strength indicator: No authority |
Ethernet | Steady white: link up
Blinking white: activity
OFF: link down |
Power | White: ON |
SOFTWARE |
|
Mode | ONU/ONT layer 2/3 Ethernet switch |
Services | Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features |
Utilities | Dashboard, monitoring, alarms, and logs |
Other | Remote reset, remote reboot, remote firmware upgrade, VLAN support |
Security | GEM Port Encryption |
Ubiquiti specific features | UISP Mobile App |
WiFi standards | 802.11 b/g/n/ac/ax |
Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES) |
FIBER |
|
Operating wavelength
TX
RX |
1310 nm
1490 nm
|
Line code | Scrambled NRZ |
Optical interface nominal bit rate
Downstream
Upstream |
2488.32 Mbit/s
1244.16 Mbit/s
|
Physical reach | 20 km |
SUPPORTED DATA RATES |
|
802.11b | 1, 2, 5.5, 11 Mbps |
802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
802.11ax (WiFi 6) | 8.6 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80) |
