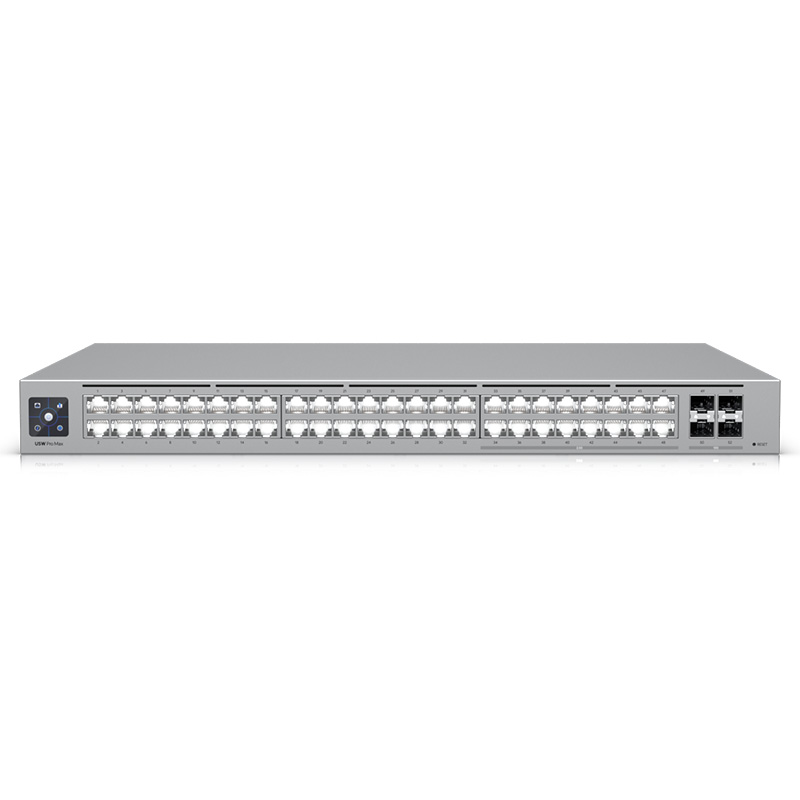

Ubiquiti Pro Max 48-Port Layer 3 Etherlighting Switch (USW-Pro-Max-48)

Name: Ubiquiti Pro Max 48-Port Layer 3 Etherlighting Switch (USW-Pro-Max-48)
Brand: Ubiquiti
SKU: 81829
Price: 1129.00 AUD
Availability: InStock

1U rack‑mount switch (32×1GbE, 16×2.5GbE, 4×10G SFP+), Layer 3, Etherlighting, Pro AV profiles, LACP, STP/RSTP, QoS DSCP, DHCP server/relay, IGMP snooping, MAC/IP ACLs, port isolation, jumbo frames, LLDP‑MED.

$1,129.00

Was: ~~$1,149.0~~

Save $20.0

or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time : Question Mark

Delivery: Question Mark

- +

Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

Wish Add to Wishlist

Buy Now, Pay Later:

Your Store

Your store is set to:

Check live stock level

Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

SPECIFICATIONS:

OVERVIEW
Dimensions	442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Port Layout 1 GbE RJ45 2.5 GbE RJ45 10G SFP+	32 16 4
Redundancy	DC Power Backup
Layer 3	✓
Form Factor	Rack mount (1U)
Etherlighting™	✓
PERFORMANCE
Switching Capacity	224 Gbps
Total Non-Blocking Throughput	112 Gbps
Forwarding Rate	167 Mpps
Supported VLANs	1,000
MAC Address Table Size	32,000
L3 Table Size ARP Entries IPv4 Routes	12,000 12,000
Packet Buffer Size	2 MB
LAYER 3 FEATURES
DHCP Server (Local Networks)	✓
DHCP Relay	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓
LAYER 2 FEATURES
LACP Port Aggregation	✓
STP & RSTP	✓
QoS (DSCP)	✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
HARDWARE
Max. Power Consumption	100W
Power Method	(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 100W
Supported Voltage Range	100—240V AC
Management	Ethernet AR
Heat Dissipation (Excluding PoE Output)	341.2 BTU/hr
Weight	Without mounting brackets: 4.8 kg (10.6 lb) With mounting brackets: 4.9 kg (10.8 lb)
Enclosure Material	SGCC steel
LCM Display	1.3" touchscreen
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Etherlighting™ Ethernet SFP+	✓ ✓

Product Name:

Ubiquiti Pro Max 48-Port Layer 3 Etherlighting Switch (USW-Pro-Max-48)
Model Number:

USW-Pro-Max-48
Brand:

Ubiquiti
Warranty Period:

1 Year
