Ubiquiti Flex 2.5G PoE 8-port 2.5 GbE PoE++ Switch (USW-Flex-2.5G-8-PoE)

Ubiquiti Flex 2.5G PoE 8-port 2.5 GbE PoE++ Switch (USW-Flex-2.5G-8-PoE)

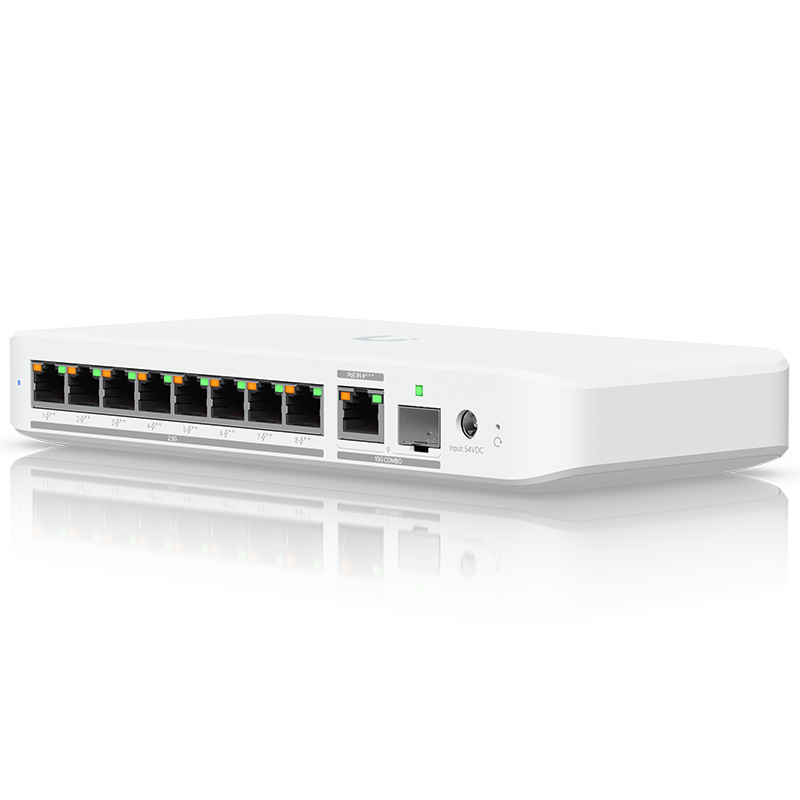

  • Switches-Ubiquiti-Flex-2-5G-PoE-8-port-2-5-GbE-PoE-Switch-USW-Flex-2-5G-8-PoE-6
  • Switches-Ubiquiti-Flex-2-5G-PoE-8-port-2-5-GbE-PoE-Switch-USW-Flex-2-5G-8-PoE-2
  • Switches-Ubiquiti-Flex-2-5G-PoE-8-port-2-5-GbE-PoE-Switch-USW-Flex-2-5G-8-PoE-3
  • Switches-Ubiquiti-Flex-2-5G-PoE-8-port-2-5-GbE-PoE-Switch-USW-Flex-2-5G-8-PoE-4
$403.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Ubiquiti Flex 2.5G PoE 8-port 2.5 GbE PoE++ Switch (USW-Flex-2.5G-8-PoE)
  • Model Number:
    USW-Flex-2.5G-8-PoE
  • Brand:
  • Warranty Period:
    1 Year

Description

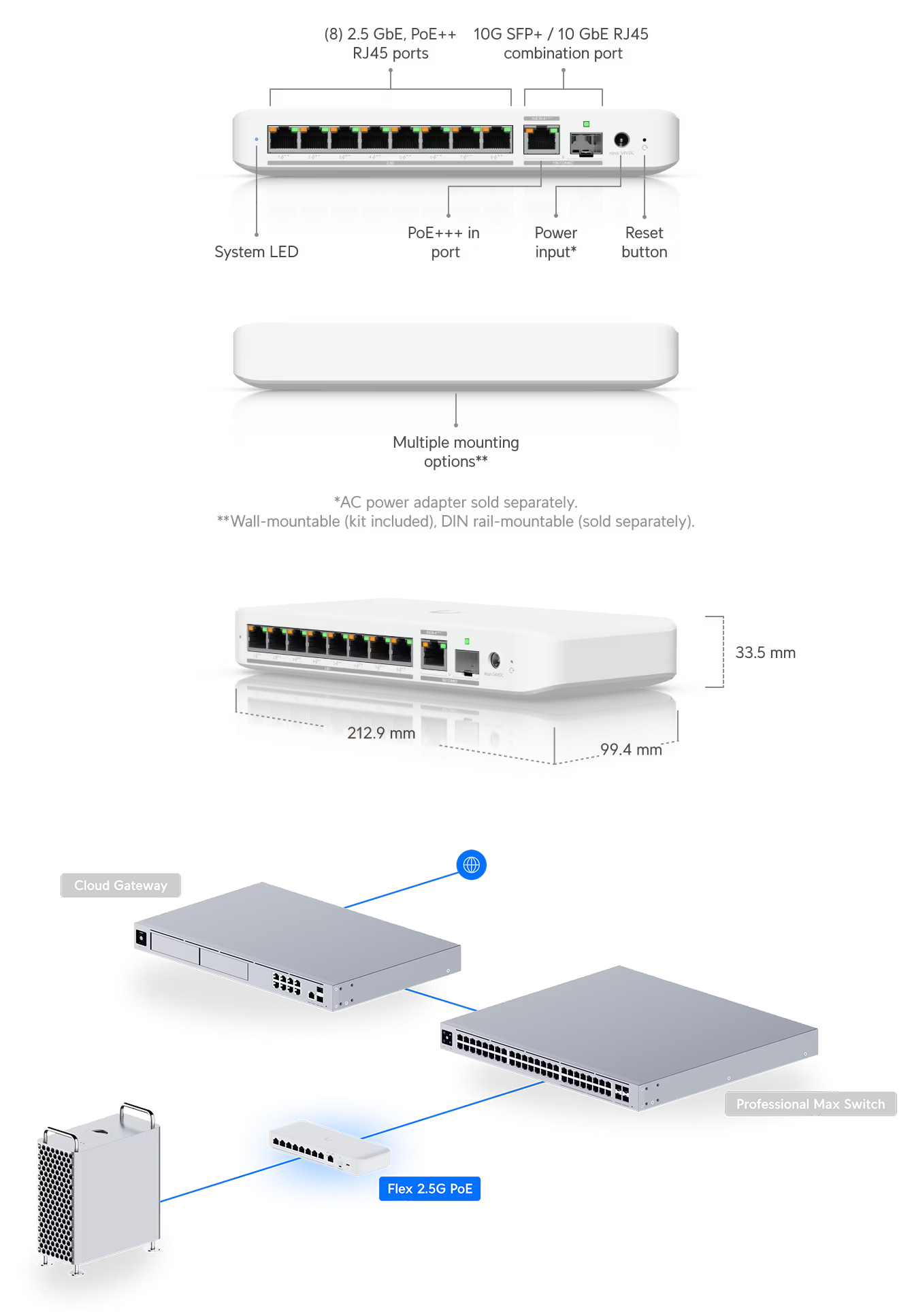

Switches-Ubiquiti-Flex-2-5G-PoE-8-port-2-5-GbE-PoE-Switch-USW-Flex-2-5G-8-PoE-1



SPECIFICATIONS:

OVERVIEW


Dimensions

212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3")

Port Layout

2.5 GbE RJ45: 8 (All PoE++) (2.5G/1G/100M/10M)

10 GbE RJ45: 1 (PoE+++) (10G/5G/2.5G/1G/100M)

10G SFP+: 1 (10G/1G)

Max. PoE Output

Up to PoE++

Total PoE Availability

PoE+++ input: 76W PoE++ input: 46W PoE+ input: 16W 210W AC adapter input: 196W

Form Factor

Compact Desktop, wall, DIN, magnetic

PERFORMANCE


Switching Capacity

60 Gbps

Total Non-Blocking Throughput

30 Gbps

Forwarding Rate

45 Mpps

Supported VLANs

256

MAC Address Table Size

4,000

LAYER 2 FEATURES


STP & RSTP



Egress Rate Limit



Flow Control



Storm Control



Multicast & Broadcast Rate Limiting



Port Isolation



Port Mirroring



Jumbo Frames



Loop Protection



HARDWARE


PoE Ports

PoE++: 8

Max. PoE Wattage per Port by PSE

PoE: 15.4W

PoE+: 32W

PoE++: 64W

Max. Power Consumption

14W (Excluding PoE output) with PoE input 17W (Excluding PoE output) with AC adapter input 210W (Including PoE Output)

Power Method

(1) AC/DC adapter (Excluded)

(1) PoE+++

Power Input Method

DC Input

PoE

Supported Voltage Range

50—57V DC/PoE

Management

Ethernet

Weight

567 g (20 oz)

Enclosure Material

Polycarbonate

Mount Material

Polycarbonate

Ambient Operating Temperature

-20 to 45° C (-4 to 113° F)

Ambient Operating Humidity

10 to 90% noncondensing

NDAA Compliant



Certifications

CE, FCC, IC

SOFTWARE


Application Requirements

UniFi Network

Version 9.0.114 and later
