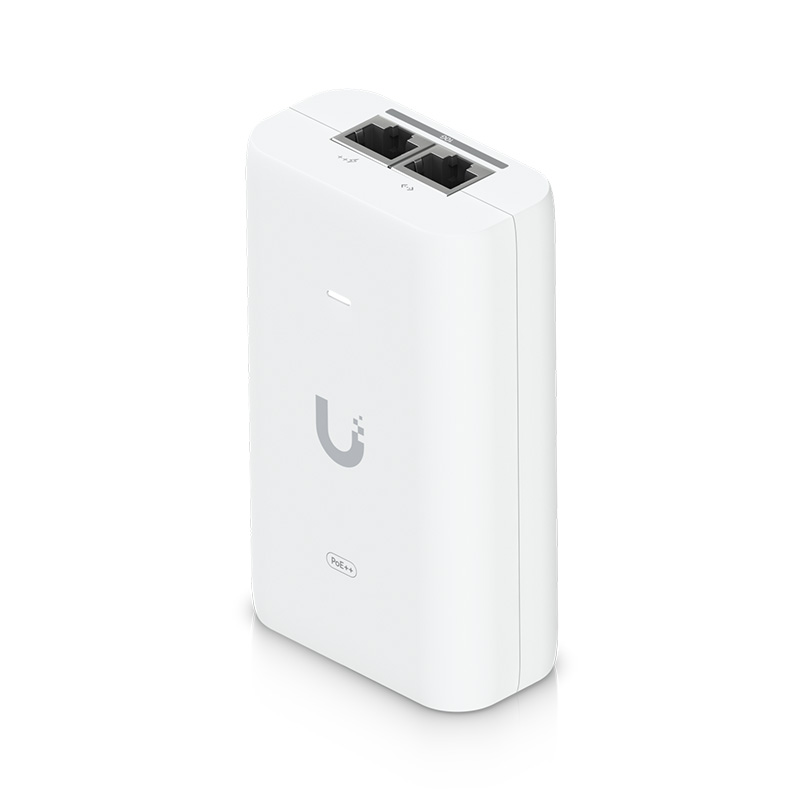

Ubiquiti 10G PoE++ 60W Adapter (UACC-PoE++-10G)

Ubiquiti 10G PoE++ 60W Adapter (UACC-PoE++-10G)
  • Networking-Accessories-Ubiquiti-10G-PoE-60W-Adapter-UACC-PoE-10G-6
  • Networking-Accessories-Ubiquiti-10G-PoE-60W-Adapter-UACC-PoE-10G-2
  • Networking-Accessories-Ubiquiti-10G-PoE-60W-Adapter-UACC-PoE-10G-1
  • Networking-Accessories-Ubiquiti-10G-PoE-60W-Adapter-UACC-PoE-10G-3
  • Networking-Accessories-Ubiquiti-10G-PoE-60W-Adapter-UACC-PoE-10G-4
$78.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Ubiquiti 10G PoE++ 60W Adapter (UACC-PoE++-10G)
  • Model Number:
    UACC-PoE++-10G
  • Brand:
  • Warranty Period:
    1 Year

Description

SPECIFICATIONS:

Dimensions

106 x 63 x 34 mm

(4.2 x 2.5 x 1.3")

Weight

210 g (7.4 oz)

Output Voltage

54V DC at 1.12A

Rated Voltage

100—240V AC at 50/60Hz

Gigabit LAN Port



4-pair Powering

Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

Clamping Protection

11V Data, 60V power

Data In / PoE

RJ45 Shielded Socket

Input Current

1.5A Max.

Inrush Current

<150A peak at 230V AC

Efficiency

>88%

Switching Frequency

65 kHz

Output Ripple

1% Max.

Line Regulation

≤ 2%

Load Regulation

≤ 5%

Max. PoE+ Wattage per Port by PSE

60W

Max. Surge Discharge

1500A (8/20 μs) power

Peak Pulse Current

36A (10/1000 μs) data

Response Time

<1 ns

Shunt Capacitance

<5 pF data

Surge Protection

Difference and common mode

Ambient Storage Temperature

-30 to 70°C (-22 to 158° F)

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

10 to 95% noncondensing

NDAA Compliant



Certifications

CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
