Image Sensor

1/3” Progressive Scan CMOS Starlight Sensor

Lens

Focal Length: 4 mm

Aperture: F2.2

Field of View: 90° (Diagonal), 76.2°(Horizontal), 41.8°(Vertical)

Night Vision

850 nm IR LED (40 ft / 12 m)

Interface & Button

1× Ethernet Port

1× RESET Button

1× MicroSD Card Slot (Up to 512 GB)

Pan/Tilt Range

Pan Mechanical Range: 340° (360° Pan Coverage)

Tilt Mechanical Range: 69° (110° Tilt Coverage)

VIDEO & AUDIO

Maximum Resolution

2880 × 1620 px

Frame Rate

15/20/25/30 fps (Default 15fps)

Video Compression

H.264

Live View

Yes

Image Enhancement

3D DNR

BLC

Audio Input & Output

Built-in Microphone and Speaker

Audio Communication

Two-Way Audio with Noise Cancellation

Siren Volume

99dB (Level measured at 4-inch/10-cm distance)

STORAGE

Local Storage

MicroSD Card Slot on Camera (Up to 512 GB)

General Information about using MicroSD Cards

Cloud Storage

Tapo Care Cloud Storage Services (Subscription required)

DETECTION AND NOTIFICATIONS

AI Detection

Motion Detection

Person Detection

Line-Crossing Detection

Tamper Detection

BabyCry Detection

Vehicle Detection

Pet Detection

Meow Detection

Bark Detection

Glass-Breaking Detection

Activity Zones

Yes

Output Notification

System Notification

System Notification with Snapshot (Tapo Care Services)

NETWORK

Network Connectivity

Connect via Wi-Fi or Ethernet cable

Wireless Connectivity

IEEE 802.11b/g/n/ax, 2.4 GHz Wi-Fi

Ethernet Port

1× 10/100 Mbps RJ45 Port on Camera

RTSP

Yes

ONVIF

Yes

SECURITY

Security

On-Device Machine Learning

128-bit AES Encryption with SSL/TLS

WPA/WPA2-PSK

POWER

Power Source

9V DC Power Adapter

Input Voltage

100-240 V, 50/60 Hz

Output Voltage

9V, 0.6 A (DC Power)　

GENERAL

Smart Integration

Google Assistant, Amazon Alexa

Mounting Options

Tabletop

Ceiling-Mounted

Operating Temperature

0℃~40℃

Storage Temperature

-40℃~70℃

Operating Humidity

10%~90% RH, Non-condensing

Storage Humidity

5%~90% RH

Dimensions ( W x D x H )

3.23 × 3.23 × 4.43 in (82.05 × 82 × 112.6 mm)

Package Content

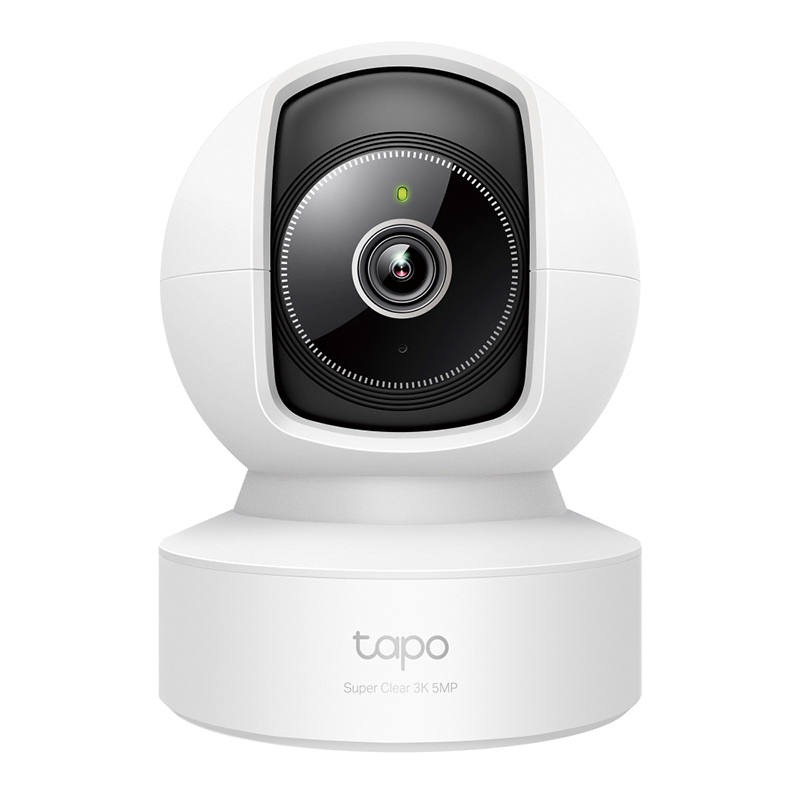

Tapo C232 Camera

Power Adapter

Quick Start Guide

Mounting Screws

Mounting Anchors 　

Mounting Template

Camera Base

Certifications

CE,NCC,BSMI

PACKAGE CONTENT

Package Content

Tapo Pan/Tilt Home Security Wi-Fi Camera

Power Adapter

Quick Start Guide

Mounting Screws

Mounting Plate

Camera Base
