Image Sensor

1/3” Progressive Scan CMOS Starlight Sensor

Lens

Focal Length: 3.2 mm

Aperture: F1.6

Field of View: 105.9° (Diagonal), 88.4°(Horizontal), 46°(Vertical)

Motion Range

Pan Mechanical Range: 340° (360° Pan Coverage)

Tilt Mechanical Range: 60° (130° Tilt Coverage)

Night Vision

850 nm IR LED (98 ft / 29.9 m)

Starlight Color Night Vision

Lighting

2× Built-in Spotlights

Interface & Button

1× Ethernet Port

1× RESET Button

1× MicroSD Card Slot (Up to 512GB)

VIDEO & AUDIO

Maximum Resolution

3K 5MP (2880 × 1620 px)

Frame Rate

15/20/25/30 fps (Default 15 fps)

Digital Zoom

12x

Video Compression

H.264

Live View

Yes

Image Enhancement

3DNR

WDR

Audio Input & Output

Built-in Microphone and Speaker

Audio Communication

Two-Way Audio with Noise Cancellation

Siren Volume

93 dB (Level measured at 4-inch/10-cm distance)

STORAGE

Local Storage

MicroSD Card Slot on Camera (Up to 512 GB)

*MicroSD Card not included

Cloud Storage

Tapo Care Cloud Storage Services (Subscription required)

DETECTION AND NOTIFICATIONS

AI Detection

Motion Detection

Person Detection

Pet Detection

Vehicle Detection

Line-Crossing Detection

Tamper Detection

Activity Zones

Yes

Output Notification

System Notification

System Notification with Snapshot (Tapo Care Services)

NETWORK

Network Connectivity

Connect via Wi-Fi or Ethernet

Wireless Connectivity

IEEE 802.11b/g/n/ax, 2.4 GHz Wi-Fi

Ethernet Port

1× 10/100 Mbps RJ45 Port on Camera

RTSP

Yes

ONVIF

Yes

SECURITY

Security

On-Device Machine Learning

128-bit AES Encryption with SSL/TLS

WPA/WPA2-PSK

POWER

Power Source

9V DC Power Adapter

Input Voltage

100-240 V, 50/60 Hz

Output Voltage

9 V, 0.85 A (DC Power)

GENERAL

Smart Integration

Google Assistant, Amazon Alexa

Weather Resistance

IP66

System Requirements

Tapo App: iOS 12.0+ and Android 5.0+ operating systems.

Mounting Options

Ceiling-Mounted

Wall-Mounted

Pole-Mounted (Pole-Mounting loops required but not included)

Operating Temperature

-30℃~60℃

Storage Temperature

-40℃~60℃

Operating Humidity

10%~90% RH, Non-condensing

Storage Humidity

0~90% RH, Non-condensing

Dimensions ( W x D x H )

4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm)

Package Content

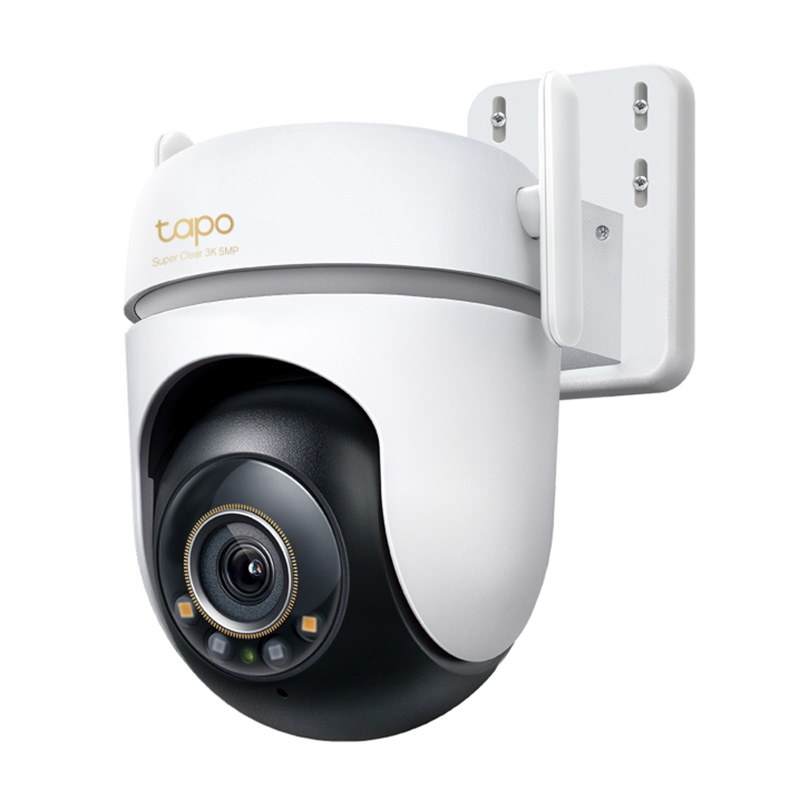

TC43 Camera

Power Adapter

Mounting Anchors

Mounting Screws

Bracket Screws

Mounting Template

Mounting Bracket

Waterproof Seal

Waterproof Cable Attachments

Quick Start Guide

Certifications

CE, FCC, RoHS, RCM
