Image Sensor

1/3” Progressive Scan CMOS Sensor

Lens

Focal Length: 3.16mm ±5%

Aperture: F1.6±5%

Field of View: 116.7±3° (Diagonal), 99.7±3° (Horizontal), 53.8±3°(Vertical)

Night Vision

2 × 850 nm IR LEDs (32.8 ft. / 10 m)

Color Night Vision

Lighting

2x White Lights

Motion Activated, App-Controlled

Hub Compatibility

Compatible with Tapo H200 & Tapo H500

Interface & Button

1× POWER Button

1× RESET Button

1× microSD Card Slot (Up to 512 GB)

* MicroSD card not included.

VIDEO & AUDIO

Maximum Resolution

1080P 2MP (1920×1080 px)

Frame Rate

15fps

Video Compression

H.264

Live View

Yes

Image Enhancement

3DNR

WDR

Audio Input & Output

Built-in Microphone and Speaker

Audio Communication

Two-Way Audio with Noise Cancellation

Siren Volume

70 dBA (Level measured at 3m distance)

STORAGE

Local Storage

MicroSD Card Slot on Camera (Up to 512 GB)

* MicroSD card not included.

Cloud Storage

Tapo Care Cloud Storage Services (Subscription required)

DETECTION AND NOTIFICATIONS

Sensor

Single Motion Sensor (FOV: 110° horizontal)

Single Ambient

Light Sensors

AI Detection

Motion Detection

Person Detection

Activity Zones

Yes

Output Notification

System Notification

System Notification with Snapshot (Tapo Care Services)

NETWORK

Network Connectivity

Connect via Wi-Fi

Wireless Connectivity

IEEE 802.11b/g/n, 2.4 GHz Wi-Fi

Ethernet Port

No

RTSP

No

ONVIF

No

SECURITY

Security

128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK

POWER

Power Source

Built-in Rechargeable Lithium-ion Battery

Input Voltage

100-240 V, 50/60 Hz, 0.2 A (Not included)

Output Voltage

5.0 V, 1.0 A, Type-C Power (Not included)

GENERAL

Smart Integration

Google Assistant, Amazon Alexa

Weather Resistance

IP65

System Requirements

Tapo App: iOS 11.0 or higher, Android 7.0 or higher

Mounting Options

Wall-Mounted

Operating Temperature

-20℃ ~   45℃ (-4 ℉ ~ 113 ℉ )

Storage Temperature

-40℃ ~   60℃ (-40 ℉ ~ 140 ℉ )

Operating Humidity

10%~90% RH, Non-condensing

Storage Humidity

5%~90% RH, Non-condensing

Charging Temperature

0℃ ~   45℃ (32 ℉ ~ 113 ℉ )

Dimensions ( W x D x H )

Camera Dimensions: 81 x 48 x 58.32 mm (3.19 x 1.89 x 2.3 in.)

Package Content

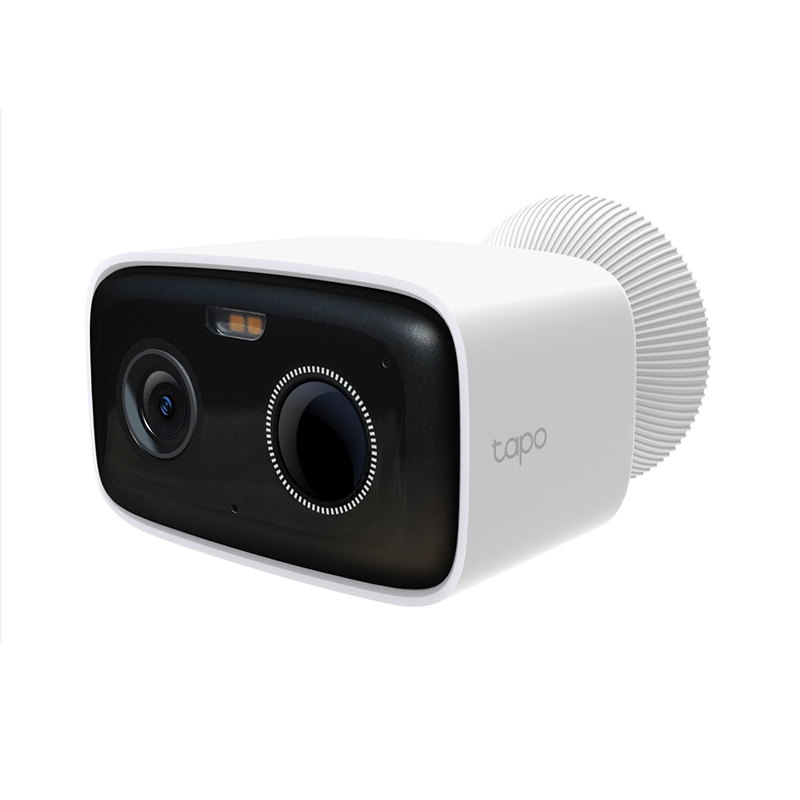

TC80 Camera x1

Camera Bracket x1

Mounting Screws x2

Mounting Screw Anchors x2

USB Charging Cable x1

Mounting Template Sticker x1

Quick Start Guide

Certifications

CE, FCC, DOE, CEC, RCM, KC, NCC, BSMI, NTRA, IP65
