Interface

1× 2.5G Ethernet Port

Button

Reset

Power Supply

802.3at PoE or 12V/1.5A DC

Max. Power Consumption

• 16.8 W (For PoE);

• 13.0 W (For DC)

Dimensions ( W x D x H )

6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)

Antenna

• 2.4 GHz: 2× 4.0 dBi

• 5 GHz: 2× 5.0 dBi

Mounting

Ceiling / Wall / Junction Box Mounting (Kits Included)

WIRELESS FEATURES

Coverage

140㎡(1500 ft²)***

*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.

**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

Concurrent Clients

250+**

**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax/be

Frequency

2.4 GHz and 5 GHz

Signal Rate

688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)

Wireless Functions

• MLO*

• 4K-QAM*

• Seamless Roaming

• EHT160*

• Mesh**

• OFDMA*

• Load Balance

• Band Steering

• Beamforming

• Airtime Fairness

• Multiple SSIDS:16(8 on each band)

• Wireless Schedule

• Reboot Schedule

• QoS(WMM)

• Rate Limit

• Static IP/Dynamic IP

• RADIUS Accounting

• MAC Authentication

* Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 160 MHz Bandwidth, 4K-QAM, Multi-RUs, and OFDMA requires clients to also support the corresponding features.

** Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access   require the use of an Omada controller.  Please refer to the User Guides of Omada controllers for configuration methods.

Wireless Security

• Captive Portal Authentication*

• Access Control

• Maximum number of MAC Filter: 4,000

• Wireless Isolation Between Clients

• VLAN

• Rogue AP Detection

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

* Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.

Transmission Power

< 20 dBm (2.4 GHz, EIRP)

< 23 dBm (5 GHz, band 1&band 2, EIRP)

< 28 dBm (5 GHz, band 3, EIRP)

MANAGEMENT FEATURES

Omada App

Yes

Centralized Management

• Omada Central (Cloud-Based)

• Omada Hardware Controller

• Omada Software Controller

Cloud Access

Yes. Require the use of Omada Controller.

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Yes

Web-based Management

Yes

OTHERS

Certification

CE, FCC, RoHS, IC

Package Content

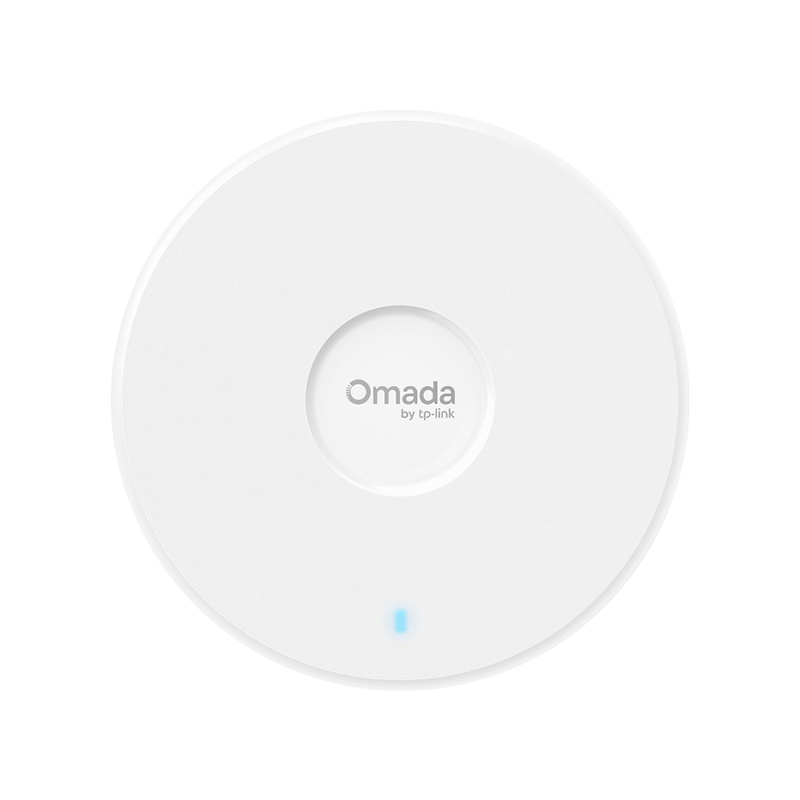

• Omada Wi-Fi 7 Ceiling Mount Access Point EAP720

• Installation Guide

• Ceiling/Wall/Junction Box Mounting Kit

• Power Adapter

Environment

• Operating Temperature: 0 °C–40 °C (32 °F–104 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Operating Humidity: 10%–90% non-condensing;

• Storage Humidity: 5%–90% non-condensing;
