Interface

1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE)

Button

Reset

Power Supply

• 802.3at PoE

• 48V Passive PoE

Max. Power Consumption

• EU: 12.5W (802.3at PoE or Passive PoE)

• US: 14.7W (802.3at PoE or Passive PoE)

Dimensions ( W x D x H )

9.1 × 8.2 × 2.8 in (230 × 207.5 × 69.7 mm)

Antenna

Built-in Directional Antennas:

• 2.4 GHz: 2× 8 dBi

• 5 GHz: 2× 10 dBi

Beamwidth: 120° Horizontal; 30° Vertical

Bluetooth

Yes

Weatherproof Enclosure

IP68

Mounting

Optional bracket accessory APM-110:

Supports vertical ±180°, horizontal ±45° adjustment

Optional bracket accessory APM-100:

Supports vertical ±45°, horizontal ±45° adjustment

Note: Optional bracket accessories need to be purchased separately

WIRELESS FEATURES

Coverage

• 2.4 GHz: 200+ m*

• 5 GHz: 500+ m*

Concurrent Clients

250+**

Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax

Frequency

2.4 GHz, 5 GHz

Signal Rate

574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)

Wireless Functions

• 1024-QAM

• DL/UL OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 on each band)

• Enable/Disable Wireless Radio

• Enable/Disable SSID Broadcast

• Guest Network

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS (WMM)

• 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO

• Omada Mesh§

• Seamless Roaming(802.11k/v/r)§

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• RADIUS Accounting

• MAC Authentication

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics

• Static IP/Dynamic IP

Wireless Security

• Captive Portal Authentication§

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

• CE: < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP);

• FCC: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz)

MANAGEMENT FEATURES

Omada App

Yes

Restore & Backup

Yes

NTP

Yes

Centralized Management

• Omada Hardware Controller

• Omada Software Controller

• Omada Cloud-based Controller

• Omada APP

Cloud Access

Yes, through

• Omada Hardware Controller

• Omada Software Controller

• Omada Cloud-based Controller

• Omada APP

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Yes

SSH

Yes

Web-based Management

Yes

Multi-site Management

Yes

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS

Certification

CE, FCC, RoHS

Package Content

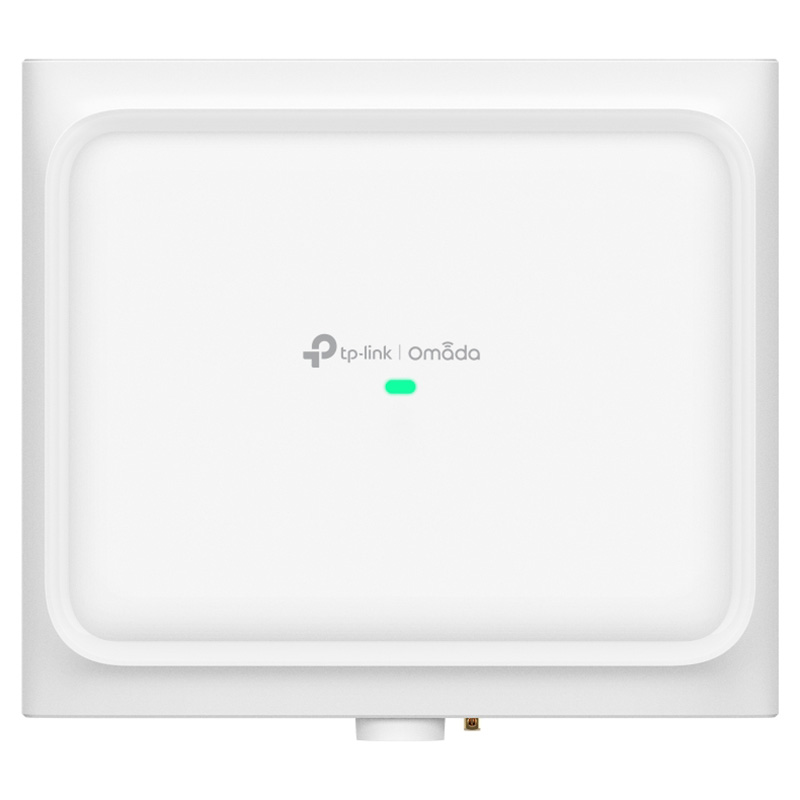

• Access Point EAP650 D120-Outdoor

• Mounting Kits

• Installation Guide

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment

• Operating Temperature: -30–70 ℃ (-22–158 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
