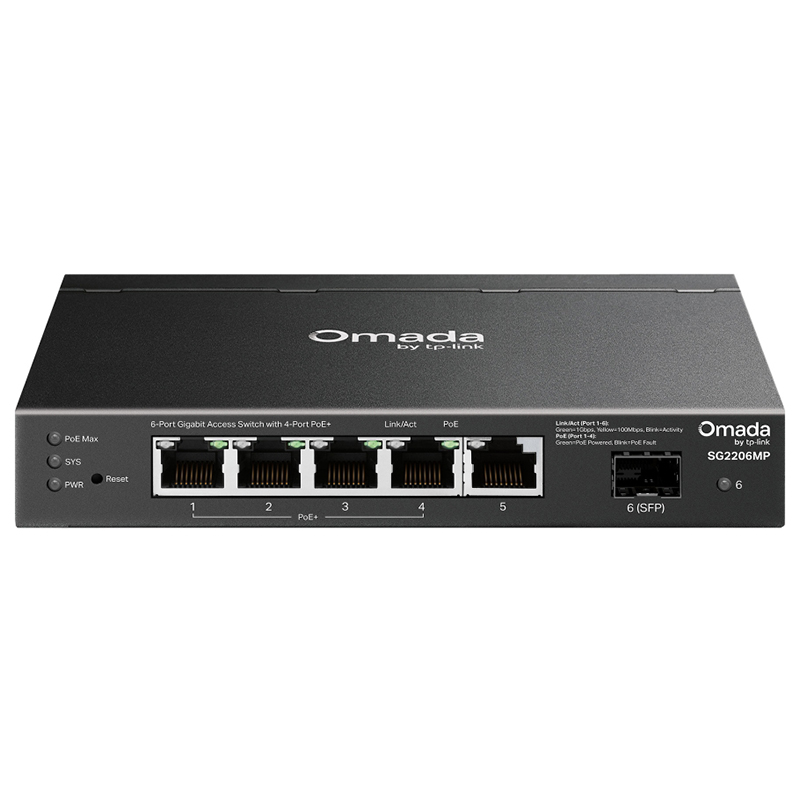

TP-Link Omada Access 6-Port Gigabit Switch with 4-Port PoE+ (SG2206MP)

TP-Link Omada Access 6-Port Gigabit Switch with 4-Port PoE+ (SG2206MP)
  • Switches-TP-Link-Omada-Access-6-Port-Gigabit-Switch-with-4-Port-PoE-SG2206MP-6
  • Switches-TP-Link-Omada-Access-6-Port-Gigabit-Switch-with-4-Port-PoE-SG2206MP-2
  • Switches-TP-Link-Omada-Access-6-Port-Gigabit-Switch-with-4-Port-PoE-SG2206MP-3
  • Switches-TP-Link-Omada-Access-6-Port-Gigabit-Switch-with-4-Port-PoE-SG2206MP-4
$149.0 Question Mark
Was: $159.0  WAS Tips    Save $10.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    TP-Link Omada Access 6-Port Gigabit Switch with 4-Port PoE+ (SG2206MP)
  • Model Number:
    SG2206MP
  • Brand:
  • Warranty Period:
    5 Year

Description

Switches-TP-Link-Omada-Access-6-Port-Gigabit-Switch-with-4-Port-PoE-SG2206MP-1



SPECIFICATIONS:

HARDWARE FEATURES


Interface

• 4× 10/100/1000 Mbps PoE+ RJ45 Ports

• 1× 10/100/1000 Mbps RJ45 Port

• 1× Gigabit SFP Slot

Physical Security Lock

Power Supply

53.5 VDC / 1.31 A

PoE Ports (RJ45)

• Standard: 802.3at/af compliant

• PoE+ Ports: 4 Ports

• PoE Power Budget: 63 W*

• Fast PoE

• Perpetual PoE

Dimensions ( W x D x H )

6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm)

Mounting

Desktop / Wall Mounting

Max. Power Consumption

73.7 W (110V/60Hz) (with 63 W PD connected)

Max. Heat Dissipation

250.4 BTU/hr (110V/60Hz) (with 63 W PD connected)

PERFORMANCE


Switching Capacity

12 Gbps

Packet Forwarding Rate

8.93 Mpps

MAC Address Table

8K

Packet Buffer Memory

4.1 Mbit

Jumbo Frame

9 KB

SOFTWARE FEATURES


Quality of Service

• 802.1p CoS/DSCP priority

• 8 priority queues

• Priority Schedule Mode

- SP (Strict Priority)

- WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

- Port/Flow based Rating Limit

• Storm Control

- Multiple Control Modes(kbps/ratio)

- Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features

• 16 IP Interfaces: Support IPv4/IPv6 Interface

• Static Routing: 32 IPv4/IPv6 Static Routes

• DHCP Server

• DHCP Relay

- DHCP Interface Relay

- DHCP VLAN Relay

• DHCP L2 Relay

• Static ARP

• Proxy ARP

• Gratuitous ARP

• Link Aggregation

• Spanning Tree Protocol

• Loopback Detection

• 802.3x Flow Control

• Mirroring

• Device Link Detect Protocol (DLDP)

• 802.1ab LLDP/ LLDP-MED

• Spanning Tree

- STP (802.1d)

- RSTP (802.1w)

- MSTP (802.1s)

- STP Security: TC Protect, BPDU Filter/Protect, Root Protect

L2 Multicast

• 511 IPv4, IPv6 shared multicast groups

• IGMP Snooping

• Multicast VLAN Registration (MVR)

• Multicast Filtering

• Limited IP Multicast (256 profiles and 16 entries per profile)

Advanced Features

• Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

VLAN

• VLAN Group

- Max. 4K VLAN Groups

• 802.1Q tag VLAN

• MAC VLAN: 16 Entries

• Protocol VLAN

• GVRP

• Voice VLAN

Access Control List

• Support up to 230 entries

• Time-Range

• Time-based ACL

• MAC ACL

• IP ACL

• IPv6 ACL

• Combined ACL

• Rule Operation: Permit/Deny

• Policy Action

- Mirroring

- Redirect

- Rate Limit

- QoS Remark

• ACL Rules Binding

- Port Binding

- VLAN Binding

Security

• IP-MAC-Port Binding

• AAA

• 802.1X

- Port-based authentication

- MAC (Host) based authentication

- Authentication Method includes PAP/EAP-MD5

- MAB

- Guest VLAN

- Support Radius authentication and accountability

• IP/IPv6-MAC Binding

- 512 Binding Entries

- DHCP Snooping

- DHCPv6 Snooping

- ARP Inspection

- ND Detection

- ND Snooping

• IP Source Guard

- 253 Entries

- Source IP+Source MAC

• IPv6 Source Guard

- 183 Entries

- Source IPv6 Address+Source MAC

• DoS Defend

• DHCP Filter

• Static/Dynamic/Permanent Port Security

- Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control

- kbps/ratio control mode

• Port Isolation

• Secure web management through HTTPS with SSLv3/TLS 1.2

• Secure Command Line Interface (CLI) management with SSHv1/SSHv2

• IP/Port/MAC-based access control

IPv6

• IPv6 Static Routing and ACL

• IPv6 Dual IPv4/IPv6

• IPv6 Interface

• Multicast Listener Discovery (MLD) Snooping

• IPv6 neighbor discovery (ND)

• Path maximum transmission unit (MTU) discovery

• Internet Control Message Protocol (ICMP) version 6

• TCPv6/UDPv6

• IPv6 applications

- DHCPv6 Client

- Ping6

- Tracert6

- Telnet(v6)

- IPv6 SNMP

- IPv6 SSH

- IPv6 SSL

- Http/Https

- IPv6 TFTP

MIBs

• MIB II (RFC1213)

• Bridge MIB (RFC1493)

• P/Q-Bridge MIB (RFC2674)

• Radius Accounting Client MIB (RFC2620)

• Radius Authentication Client MIB (RFC2618)

• Remote Ping, Traceroute MIB (RFC2925)

• Support TP-Link private MIBs

• RMON MIB(RFC1757, rmon 1,2,3,9)

Management Features


Omada App

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

• Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)

• Omada Hardware Controller (Requires built-in version 5.15.20 or later)

• Omada Software Controller (Requires built-in version 5.15.20 or later)

Cloud Access

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller

Management Features

• Web-based GUI

• Command Line Interface (CLI) through telnet

• SNMPv1/v2c/v3

• SNMP Trap/Inform

• RMON (1,2,3,9 groups)

• SDM Template

• DHCP/BOOTP Client

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• IEEE 802.1az Energy Efficient Ethernet (EEE)

• SNTP

• System Log

• Digital Diagnostic Monitoring (DDM)

• Operation Administration and Maintenance (OAM)

OTHERS


Certification

CE, FCC, RoHS

Package Content

• SG2206MP

• Power Adapter

• Power Cord

• Rackmount Kit

• Rubber Feet

• Installation Guide

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment

• Operating Temperature: -5–40 (23104 );

• Storage Temperature: -40–70 (-40158 )

• Operating Humidity: 10–90% RH, non-condensing

• Storage Humidity: 5–90% RH, non-condensing
