Access Control

Source/Destination IP Based Access Control

Filtering

• Web Group Filtering*

• URL Filtering

• Web Security*

* These features are supported only in Standalone Mode.

ARP Inspection

• Sending GARP Packets

• ARP Scanning*

• IP-MAC Binding

* These features are supported only in Standalone Mode.

Attack Defense

• TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)

• Block Ping from WAN

HARDWARE FEATURES

Interface

• 1× Gigabit WAN Port

• 2× Gigabit WAN/LAN Ports

• 2× Gigabit LAN Ports

Button

Reset Button

Power Supply

12V DC / 1A Power Adapter

Wi-Fi Frequency & Signal Rate

• 2.4 GHz: 300 Mbps

• 5 GHz: 867 Mbps

Flash

128 MB NAND

DRAM

256 MB DDR3

LED

• Power, SYS, 2.4G, 5G

• WAN (1000/100/10M Link/Act),

• WAN/LAN (1000/100/10M Link/Act)

• LAN (1000/100/10M Link/Act)

Dimensions ( W x D x H )

8.5 × 4.6 × 1.2 in (215 × 117 × 32 mm)

Antenna

• 2.4 GHz: 2× 5 dBi non-detachable antennas

• 5 GHz: 2× 5 dBi non-detachable antennas

Mounting

Desktop/Wall-mounting

Max. Power Consumption

• EU: 9W

• US: 10.3W

PERFORMANCE

GRE

• Unencrypted: 180.1 Mbps

• Encrypted: 56.9 Mbps

WireGuard VPN

71.2 Mbps

Concurrent Session

50,000

New Sessions /Second

2,028

NAT (Static IP)

909.3Mbps/937.5 Mbps

NAT(DHCP)

938.3 Mbps /888.2 Mbps

NAT(PPPoE)

929.9 Mbps /929.2 Mbps

NAT (L2TP)

346.9 Mbps /337.6 Mbps

NAT (PPTP)

487.1 Mbps/454.3 Mbps

OpenVPN

16.8 Mbps

L2TP VPN Throughput

• Unencrypted: 400.3 Mbps

• Encrypted: 127.5 Mbps

PPTP VPN Throughput

• Unencrypted: 523.6 Mbps

• Encrypted: 52.7 Mbps

66 Byte Packet Forwarding Rate

1,453,489 pps /1,453,489 pps

1,518 Byte Packet forwarding rate

81,275 pps / 81,275 pps

WIRELESS FEATURES

Advanced Features

• Multiple SSIDs: 16 in total (8 per radio)

• Enable/Disable Wireless Radio

• Enable/Disable SSID Broadcast

• Automatic Channel Selection Algorithm

• Transmit Power Control: Adjust transmit Power on dBm

• Beamforming

• Rate Limit: Based on SSID/Client

• Load Balance

• Band Steering

• RADIUS Accounting

• Reboot Schedule

• MAC Authentication

• Wireless Schedule

• Wireless Encryption: WPA/WPA2 Personal, WPA/WPA2 Enterprise

BASIC FUNCTIONS

WAN Connection Type

• Static IP

• Dynamic IP

• PPPoE (supports MRU Configuration)

• PPTP

• L2TP

MAC Clone

Modify WAN Address

DHCP

• DHCP Server

• DHCPv6 PD Server (only in Standalone Mode)

• DHCP Options Customization

• DHCP Address Reservation

• Multi-IP Interfaces

• Multi-Net DHCP

IPv6

StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough /   Non-Address mode

VLAN

802.1Q VLAN

IPTV

IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FEATURES

Advanced Routing

• Static Routing

• Policy Routing

• RIP

• OSPF

Bandwidth Control

IP-Based Bandwidth Control

Load Balance

• Intelligent Load Balance

• Application Optimized Routing

• Link Backup(Timing, Failover)

• Online Detection

NAT

• One-to-One NAT

• Multi-Net NAT

• Virtual Server

• Port Triggering*

• NAT-DMZ

• FTP/H.323/SIP/IPSec/PPTP ALG

• UPnP

* These features are supported only in Standalone Mode.

Session Limit

IP-Based Session Limit

VPN

GRE

Only in Standalone Mode

IPsec VPN

• 6 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN

• Main, Aggressive Negotiation Mode

• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec

• Failover

• IKE v1/v2

• MD5, SHA1, SHA-256, SHA2-384 and SHA2-512 Authentication

• Algorithm NAT Traversal (NAT-T)

• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)

PPTP VPN

• PPTP VPN Server

• PPTP VPN Client (6) 6 Tunnels

• PPTP with MPPE Encryption

L2TP VPN

• L2TP VPN Server L2TP VPN Client (6) 6 Tunnels

• L2TP over IPSec

OpenVPN

• OpenVPN Server OpenVPN Client (3)

• 18 OpenVPN Tunnels

• "Certificate + Account" Mode

• Full Mode

WireGuard VPN

Yes

AUTHENTICATION

Web Authentication

• No Authentication

• Simple Password*

• Hotspot (Local User / Voucher* / SMS* / Radius*)

• External Radius Sever

• External Portal Sever*

• LDAP

* These features are supported only in Controller Mode.

MANAGEMENT FEATURES

Omada App

Yes.

Centralized Management

• Omada App

• Omada Hardware Controller

• Omada Software Controller

Service

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Maintenance

• Web Management Interface

• Remote Management

• Export & Import Configuration

• Diagnostics (Ping & Traceroute)*

• NTP Synchronize*

• Port Mirroring

• Syslog Support

* These features are supported only in Standalone Mode.

Management Features

• Automatic Device Discovery

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• Captive Portal Configuration

OTHERS

Certification

CE, FCC, RoHS

Package Content

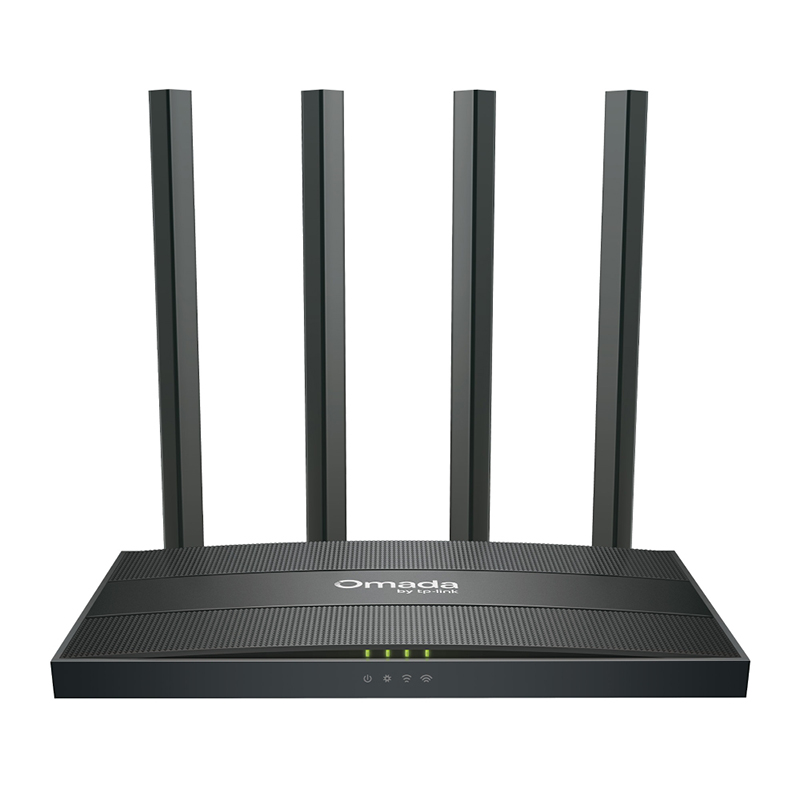

• ER605W

• Power Adapter

• Ethernet Cable

• Quick Installation Guide

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows   7/8/8.1/10/11

• MAC OS, NetWare, UNIX or Linux

Environment

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

• Operating Humidity: 10% to 90% non-condensing

• Storage Humidity: 5% to 90% non-condensing
