Interface

• 6× 10/100/1000 Mbps RJ45 Ports

• 2× Gigabit SFP/RJ45 Combo Slots

• Auto-Negotiation/Auto MDI/MDIX

Fan Quantity

Fanless

Installation

• DIN-rail mounting

• Wall mounting

Power Supply

9.6-60V 1+1 Redundant DC Power Input

Dimensions ( W x D x H )

5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)

Surge Protection

• ±6 kV in common mode for Ethernet ports

• ±4 kV in common mode for DC power input ports

PERFORMANCE

Switching Capacity

16 Gbps

Packet Forwarding Rate

11.9 Mpps

MAC Address Table

8K

Packet Buffer Memory

4 Mbit

Jumbo Frame

15 KB

SOFTWARE FEATURES

Quality of Service

• 802.1p DSCP Priority

• 8 Priority Queues

• Priority Schedule Mode

- WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

- Port-Based Rate Limit

• Storm Control

- Multiple Control Modes (kbps/pps)

- Broadcast/Multicast/Unknown-Unicast Control

L2 Features

• Link Aggregation

- Static Link Aggregation

- Up to 2 aggregation groups and up to 4 ports per group

• Loopback Detection

• Flow Control

- 802.3x Flow Control

• Mirroring

- Port Mirroring

- One-to-One

- Many-to-One

- Ingress/Egress/Both

• Port Statistics

- Port Mirror Status

- Traffic Statistics

• 802.1ab LLDP

• Spanning Tree

- STP (802.1d)

- RSTP (802.1w)

L2 Multicast

• IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

VLAN

• MTU VLAN

• Port-Based VLAN

• 802.1Q Tag VLAN

- Max 32 VLAN Groups

- 4K VID

Transmission Method

Store-And-Forward

Management Features

Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller

Management Features

• Web-based GUI

• DHCP Client

• Cable Diagnostics

• Digital Diagnostic Monitoring (DDM)

• Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Unified Configuration

OTHERS

Certification

FCC, CE, RoHS

Package Content

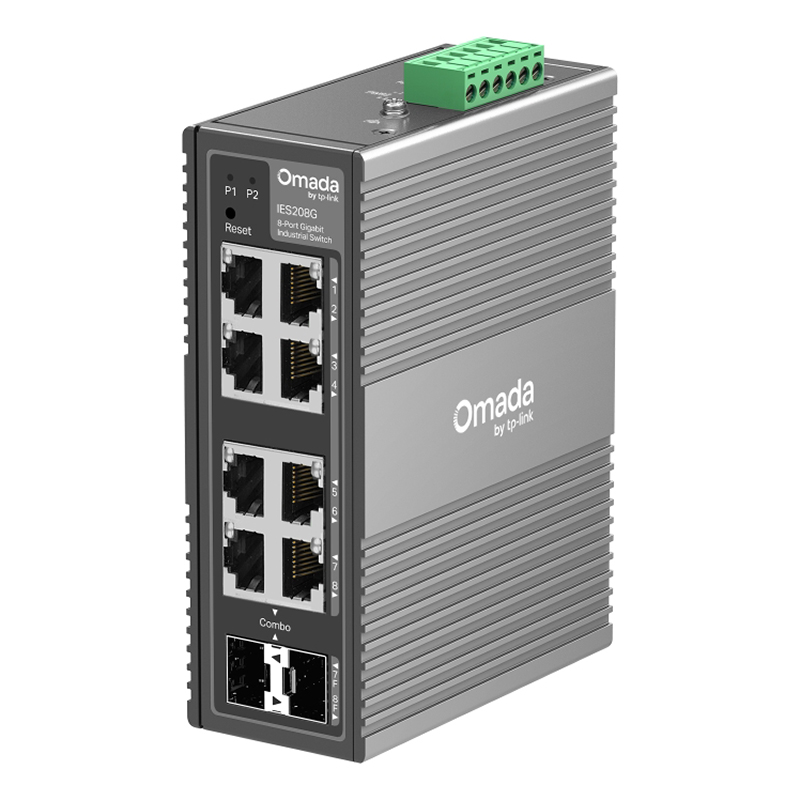

• IES208G

• DIN-Rail Mounting Bracket

• Wall-Mounting Plates

• Installation Guide

Environment

• Operating Temperature: -40℃~75℃ (-40℉~167℉)

• Storage Temperature: -40℃~85℃ (-40℉~185℉)

• Operating Humidity: 5%~95% non-condensing

• Storage Humidity: 5%~95% non-condensing
