Access Control

Source/Destination IP Based Access Control

Filtering

• Web Group Filtering**

• URL Filtering

• Web Security**

**Supported only in Standalone Mode.

ARP Inspection

• Sending GARP Packets

• ARP Scanning**

• IP-MAC Binding

**Supported only in Standalone Mode.

Attack Defense

• TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)

• Block Ping from WAN

HARDWARE FEATURES

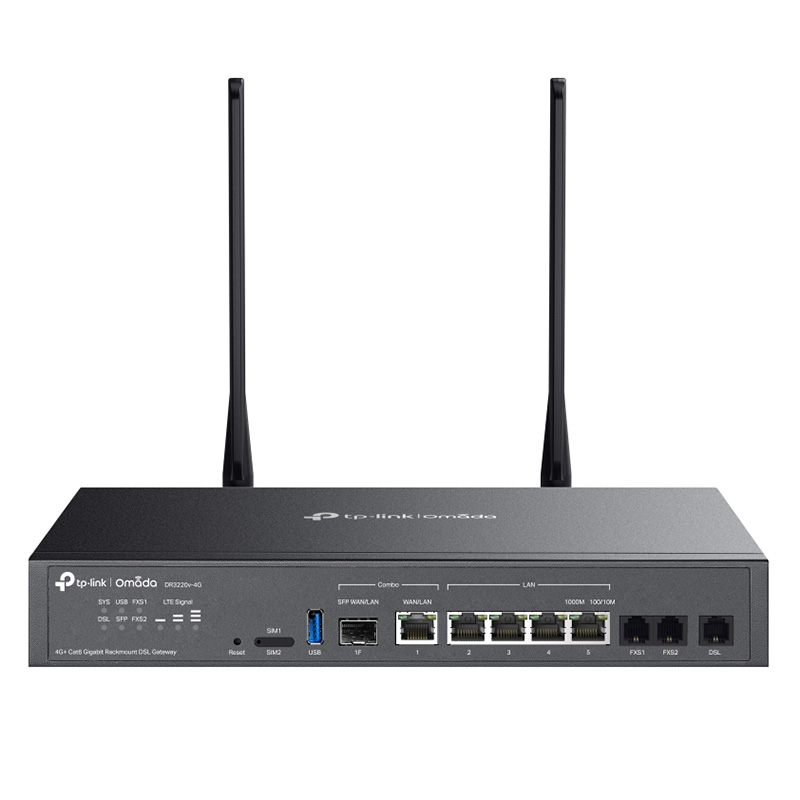

Interface

• 1 Combo Gigabit SFP/RJ45 Port (1 SFP WAN/LAN Port + 1 WAN/LAN Port)

• 4 × RJ45 Gigabit LAN Ports

• 1 DSL Port

• 2 FXS Ports

Button

Reset Button

Power Supply

100-240V/50-60Hz 0.6A

Slot

1*USB 3.0 (supports USB LTE dongle and USB Storage)

Flash

256MB NAND

DRAM

512MB DDR4

Dimensions ( W x D x H )

11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) (Antenna dimensions not included)

Antenna

LTE: Two 3dBi omnidirectional detachable antennas

SIM Slot

1 Dual-SIM Nano SIM slot (4G+ Cat6)

Mounting

Desktop/ Rack-mounting

Max. Power Consumption

• 8.55 W (No Link)

• 24.4 W (Full load + USB )

PERFORMANCE

GRE

• Unencrypted: 491.9Mbps

• Encrypted: 244.3Mbps

WireGuard VPN

290Mbps

Concurrent Session

150,000

New Sessions /Second

4,050

NAT (Static IP)

937.2 Mbps/936.1Mbps

NAT(DHCP)

945.8 Mbps /940.6Mbps

NAT(PPPoE)

942.9 Mbps/942.9Mbps

NAT (L2TP)

837.4 Mbps / 881.5Mbps

NAT (PPTP)

803.0 Mbps / 910.5 Mbps

IPsec VPN Throughput

• ESP-SHA1-AES256: 526.6Mbps

• ESP-SHA256-AES256: 543.3Mbps

• ESP-SHA384-AES256: 549.0Mbps

• ESP-SHA512-AES256: 561.7Mbps

OpenVPN

129.3Mbps

L2TP VPN Throughput

837.4 Mbps /881.5Mbps

PPTP VPN Throughput

803.0 Mbps/910.5 Mbps

66 Byte Packet Forwarding Rate

1,453,489 pps / 1,453,488 pps

1,518 Byte Packet Forwarding Rate

81274 pps/ 91275 pps

BASIC FUNCTIONS

WAN Connection Type

• Static IP

• Dynamic IP

• PPPoE (supports MRU Configuration)

• PPTP

• L2TP

MAC Clone

Modify WAN Address

DHCP

• DHCP Server

• DHCPv6 PD Server (only in Standalone Mode)

• DHCP Options Customization

• DHCP Address Reservation

• Multi-IP Interfaces

• Multi-Net DHCP

IPv6

StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough

VLAN

802.1Q VLAN

IPTV

IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FEATURES

Bandwidth Control

IP-based Bandwidth Control

Load Balance

• Intelligent Load Balance

• Application Optimized Routing

• Link Backup (Timing, Failover)

• Online Detection

NAT

• One-to-One NAT

• Multi-Net NAT

• Virtual Server

• Port Triggering**

• NAT-DMZ

• FTP/H.323/SIP/IPSec/PPTP ALG

• UPnP

**Supported only in Standalone Mode.

Session Limit

IP-based Session Limit

VPN

GRE

Only in Standalone Mode

SSL VPN

50 Tunnels

IPsec VPN

• 100 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN

• Main, Aggressive Negotiation Mode

• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

• IPsec Failover

• IKE v1/v2

• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm

• NAT Traversal (NAT-T)

• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)

PPTP VPN

• PPTP VPN Server

• PPTP VPN Client (10)***

• 50 Tunnels

• PPTP with MPPE Encryption

***Supported only in Controller Mode.

L2TP VPN

• L2TP VPN Server

• L2TP VPN Client (10)***

• 50 Tunnels

• L2TP over IPSec

***Supported only in Controller Mode.

OpenVPN

• OpenVPN Server

• OpenVPN Client (5)***

• 55 OpenVPN Tunnels

• "Certificate + Account" Mode

• Full Mode

***Supported only in Controller Mode.

WireGuard VPN

✔

MANAGEMENT FEATURES

Omada App

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access

Yes. Require the use of Omada Controller.

Service

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Maintenance

• Web Management Interface

• Remote Management

• Export & Import Configuration

• SNMP v1/v2c/v3

• Diagnostics (Ping & Traceroute)

• NTP Synchronize1

• Port Mirroring

• CLI (only in Standalone Mode)

• Syslog Support

• TR-069 (data models of TR-098 and TR-181 are supported)

Zero-Touch Provisioning

Yes. Require the use of Omada Controller.

OTHERS

Certification

CE, RoHS

Package Content

• DR3220v-4G

• Power Cord

• Ethernet Cable

• Phone Cable

• Rubber Feet

• SIM Card Eject Pin

• Rackmount Kit

• Antenna Extension Base

• Quick Installation Guide

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11

• MAC OS, NetWare, UNIX or Linux

Environment

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

• Operating Humidity: 10% to 90% non-condensing

• Storage Humidity: 5% to 90% non-condensing

Notes

• Maximum wired signal rates are the physical rates. Actual data throughput is not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors.

• Actual 4G downlink speeds vary between buildings. Factors affecting 4G speeds include the internet service plan, real-time network capacity, equipment and client limitations, and environmental factors.
