Interface

• 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)

• 1× 10/100/1000 Mbps RJ45 Port

• 1× Gigabit SFP/RJ45 Combo Port

• Auto-Negotiation/Auto MDI/MDIX

Fan Quantity

Fanless

Installation

• Desktop

• Wall Mount

Physical Security Lock

√

Power Supply

DC Power Adapter (Output: 53.5 VDC/ 2.43 A)

PoE Ports (RJ45)

• Standard: 802.3af PoE and 802.3at PoE+ compliant

• PoE Ports: 8 ports

• PoE Budget: 123W available for all PoE+ ports, 30W max per port

• PoE Auto Recovery*

• Up to 250m PoE transmission distance**

* This switch supports PoE Auto Recovery under Standalone Mode (managed separately without a controller) and supports manual PoE Recovery under Controller Mode (centrally managed with a controller).

** The speed of the ports that support 250m PoE transmission will be downgraded to 10 Mbps. Actual transmission distance may vary depending on the quality of the cables.

Dimensions ( W x D x H )

8.2×4.9×1.0 in (209×126×26 mm)

Surge Protection

±6kV

PERFORMANCE

Switching Capacity

20 Gbps

Packet Forwarding Rate

14.88 Mpps

MAC Address Table

8K

Packet Buffer Memory

4 Mbit

Jumbo Frame

15 KB

SOFTWARE FEATURES

Quality of Service

• Port-based/802.1p/DSCP QoS

• 8 Priority Queues

• Priority Schedule Mode

- WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

- Port-Based Rating Limit

• Storm Control

- Multiple Control Modes (kbps/pps)

- Broadcast/Multicast/Unknown-Unicast Control*

* QoS and Priority Mode are supported under Standalone Mode

L2 Features

• Static Link Aggregation

• Loop Prevention / Loopback Detection

• Flow Control

- 802.3x Flow Control

• Mirroring

- Port Mirroring

- One-to-One

- Many-to-One

- Ingress/Egress/Both

• Port Statistics

- Port Mirror Status

- Traffic Statistics

• 802.1ab LLDP

L2 Multicast

• IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

VLAN

• MTU VLAN

• Port-Based VLAN

• 802.1Q Tag VLAN

- Max 32 VLAN Groups

- 4K VID

Transmission Method

Store-And-Forward

MANAGEMENT FEATURES

Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller

Management Features

• Web-based GUI

• DHCP Client

• Cable Diagnostics

• Automatic Device Discovery*

• Batch Configuration*

• Batch Firmware Upgrading*

• Unified Configuration*

* These functions require the use of the Omada SDN Controller.   Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.

OTHERS

Certification

FCC, CE, RoHS

Package Content

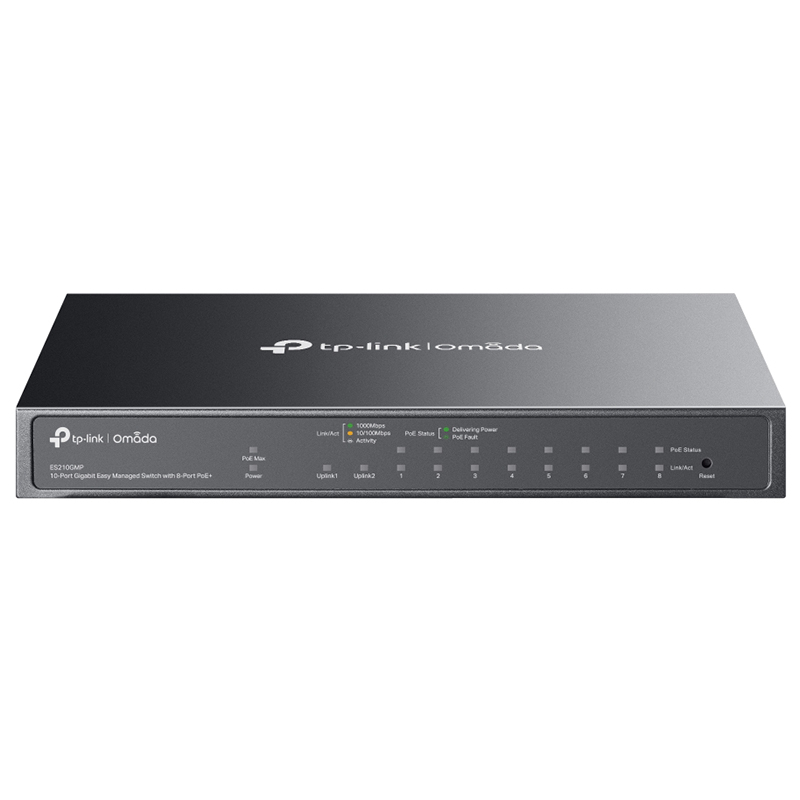

• ES210GMP

• Power Adapter

• Installation Guide

• Rubber Feet

Environment

• Operating Temperature: 0℃~40℃ (32℉~104℉)

• Storage Temperature: -40℃~70℃ (-40℉~158℉)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing
