Standards and Protocols

Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

AX3000

5 GHz: 2402 Mbps (802.11ax, HE160)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Capacity

High

Dual-Band

Distribute devices to different bands for optimal performance

2×2 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

OFDMA

Simultaneously communicates with multiple WiFi 6 clients

4 Streams

More than enough bandwidth for connected devices

Working Modes

Router Mode

Access Point Mode

SECURITY

Network Security

SPI Firewall

Access Control

HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network

1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

WiFi Encryption

WPA-Personal

WPA2-Personal

WPA3-Personal

HARDWARE FEATURES

Power Supply

• 802.3at PoE

• 12V DC

(EU Version: 12V/1.2A DC. US Version: 12V/1.5A DC).

Note: DC adapter is included in the package

HARDWARE

Button

Reset Button

Ethernet Ports

1× 2.5 Gbps port + 1× Gigabit port

*Per Deco Unit

Supports WAN/LAN auto-sensing

SOFTWARE

Protocols

IPv4

IPv6

Service Kits

HomeShield

Parental Controls

HomeShield Parental Controls

Custom Profiles

Professional Content Filter Library

Family Time

Bedtime

Off Time

Time Rewards

Family Online Time Ranking

Pause the Internet

Weekly and Monthly Reports

WAN Types

Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service

HomeShield QoS

QoS by Device

Cloud Service

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding

Port Forwarding

UPnP

IPTV

IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP

Address Reservation

DHCP Client List

Server

DDNS

TP-Link

Management Features

Deco App

OTHER

Network Services Enabled by Default

Web Server

Manage and configure device through web (HTTP/HTTPS)

• Port: 80/443   Protocol: TCP

DNS

DNS

• Port: 53   Protocol: TCP & UDP

DHCP Server

IP address assignment (DHCP)

• Port: 67   Protocol: UDP

App management

Manage and configure device through app

• Port: 22   Protocol: TCP

• Port: 20001   Protocol: TCP

• Port: 30001   Protocol: TCP

• Port: 20002   Protocol: UDP

TEST DATA

WiFi Transmission Power

CE:

<20 dBm (2.4 GHz)

<23 dBm (5 GHz)

FCC:

<30 dBm (2.4 GHz)

<30 dBm (5 GHz)

PHYSICAL

Dimensions (W×D×H)

6.1 × 6.1 × 2.7 in

(154× 154 × 68.6 mm)

Package Content

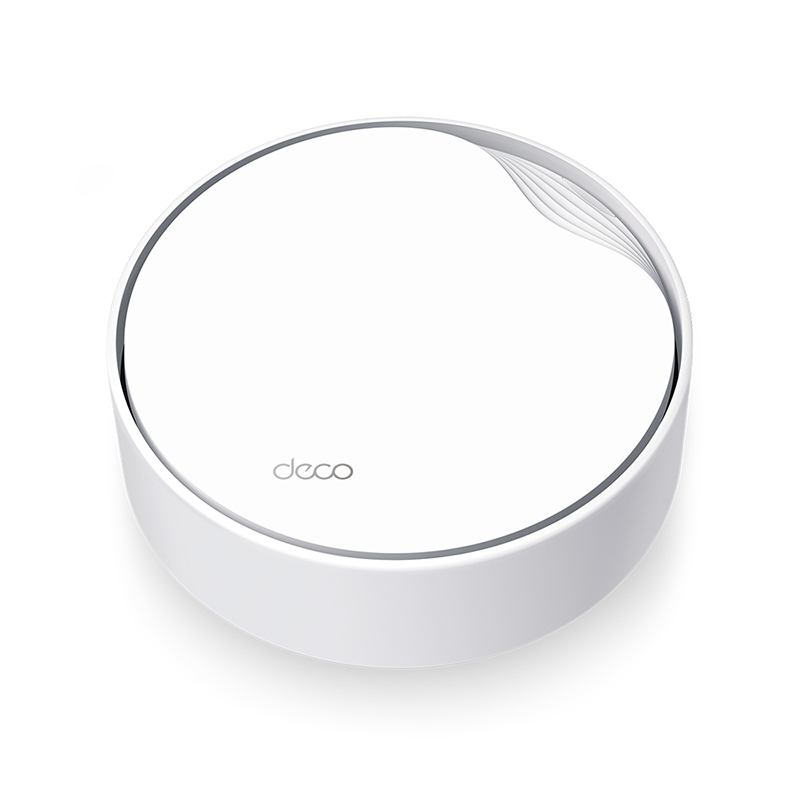

1× Deco X50-PoE unit

1× RJ45 Ethernet cable

1× Power adapter

Ceiling/Wall Mounting Kits

Quick Installation Guide

OTHERS

System Requirements

Android 5.0 or later

iOS 9.0 or later

*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.

Certifications

CE, FCC, RoHS

Environment

Operating Temperature: 0°C~40°C (32 °F~104 °F)

Storage Temperature: -40°C~60°C (-40 °F~140 °F)

Operating Humidity: 10%~90% RH

Storage Humidity: 5%~90% RH
