WIRELESS |
|
Standards and Protocols | Wi-Fi 7 IEEE 802.11be/ax 6 GHz IEEE 802.11be/ax/ac/n/a 5 GHz IEEE 802.11be/ax/n/b/g 2.4 GHz |
WiFi Speeds | BE14000 6 GHz: 8647 Mbps (802.11be) 5 GHz: 4324 Mbps (802.11be) 2.4 GHz: 688 Mbps (802.11be) |
WiFi Range | Broader Whole Home Coverage TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage AI-Driven Mesh Intelligently learns the network environment to provide ideal Wi-Fi unique to your home 8× High-Gain Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Tri-Band The greenfield 6 GHz band brings more bandwidth and faster speeds |
WiFi Capacity | Very High Tri-Band Distribute devices to different bands for optimal performance 3×3 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 7 clients 8 Streams More than enough bandwidth for connected devices |
Working Modes | Router Mode Access Point Mode |
Advanced Features | • Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs • Works with Alexa and Google Assistant |
SECURITY |
|
Network Security | SPI Firewall Access Control HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
Guest Network | 1× 6 GHz Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network Effective Time Bandwidth Control |
VPN Server | • OpenVPN Server • PPTP VPN Server • L2TP/IPSec VPN Server • WireGuard VPN Server |
VPN Client | • OpenVPN Client • PPTP VPN Client • L2TP/IPSec VPN Client • WireGuard VPN Client |
WiFi Encryption | WPA-Personal WPA2-Personal WPA3-Personal |
HARDWARE |
|
Ethernet Ports | • 1× 10 Gbps • 1× 2.5 Gbps • 1× 1.0 Gbps *Per Deco Unit Supports WAN/LAN auto-sensing |
USB Support | 1× USB 3.0 Port FTP Server Media Server Samba Server |
Buttons | 1× Reset Button 1× WPS |
SOFTWARE |
|
Advanced Features | • Reboot Schedule • Tapo/Kasa Onboarding • IoT network & Device Isolation • Static Route Function • Node/Band Connection Preference |
Protocols | IPv4 IPv6 |
Service Kits | HomeShield |
Parental Controls | HomeShield Parental Controls Youtube Restriction SafeSearch Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | HomeShield QoS QoS by Device |
Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | Port Forwarding UPnP |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation DHCP Client List Server |
DDNS | TP-Link |
Management Features | Deco App |
OTHER |
|
Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DNS DNS • Port: 53 Protocol: TCP & UDP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP App management Manage and configure device through app • Port: 22 Protocol: TCP • Port: 20001 Protocol: TCP • Port: 30001 Protocol: TCP • Port: 20002 Protocol: UDP |
PHYSICAL |
|
Dimensions (W×D×H) | 4.23 × 4.23 × 6.93 in (107.5 × 107.5 × 176 mm) |

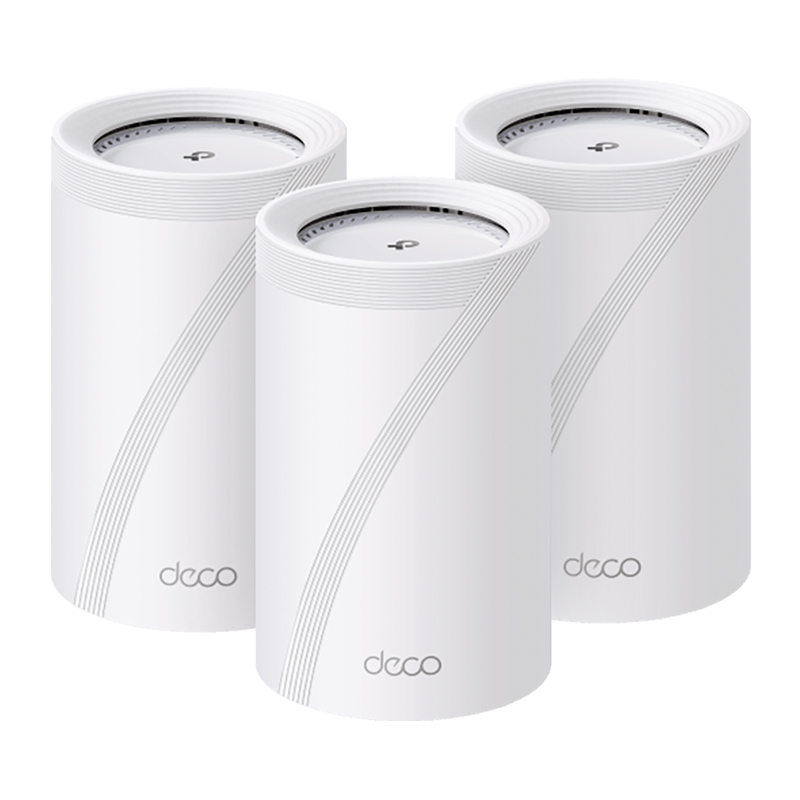

Package Content | Deco BE68 (3-pack) 3 Deco BE68 units 1 RJ45 Ethernet cable 3 Power adapters Quick Installation Guide |
OTHERS |
|
Certifications | CE, FCC, RoHS |
Environment | Operating Temperature: 0°C~40°C (32 °F~104 °F) Storage Temperature: -40°C~60°C (-40 °F~140 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
