Standards and Protocols

Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

AX3000

5 GHz: 2402 Mbps (802.11ax)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Range

1-3 Bedroom Houses (1-pack)

TP-Link Mesh Technology

Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

4× LTE/5G internal antennas + 2× Wi-Fi internal antennas

+ 2× external antenna interface

Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity

High

Dual-Band

Distribute devices to different bands for optimal performance

MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

OFDMA

Simultaneously communicates with multiple WiFi 6 clients

4 Streams

More than enough bandwidth for connected devices

Working Modes 5G/4G Router, Router, Access Point

SECURITY

Network Security

SPI Firewall

Access Control

HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network

1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

WiFi Encryption

WPA-Personal

WPA2-Personal

WPA3-Personal

HARDWARE

Ports and Connections

1× 2.5 Gigabit port + 2× 1 Gigabit ports

(WAN/LAN auto-sensing)

Compatibility

5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78

4G FDD-LTE: B1/B3/B5/B7/B8/B20/B28

4G TDD-LTE: B38/B40/B41/B42/B43

3G: B1/B5/B8

SOFTWARE

Protocols

IPv4

IPv6

Service Kit

HomeShield

WAN Types

Dynamic IP

Static IP

PPPoE

L2TP

PPTP

Quality of Service

HomeShield QoS

QoS by Device

Cloud Service

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding

Port Forwarding

UPnP

IPTV

IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP

Address Reservation

DHCP Client List

Server

DDNS

TP-Link

Management Features

Deco App

TEST DATA

WiFi Transmission Power

CE:

≤20 dBm (2.4 GHz),

≤23 dBm (5 GHz)

PHYSICAL

Dimensions (W×D×H)

8.3 × 5.1 × 4.8 in

(210.5 × 130 × 123mm)

OTHERS

Certification

RoHS, CE, RCM

Package Content

1-pack

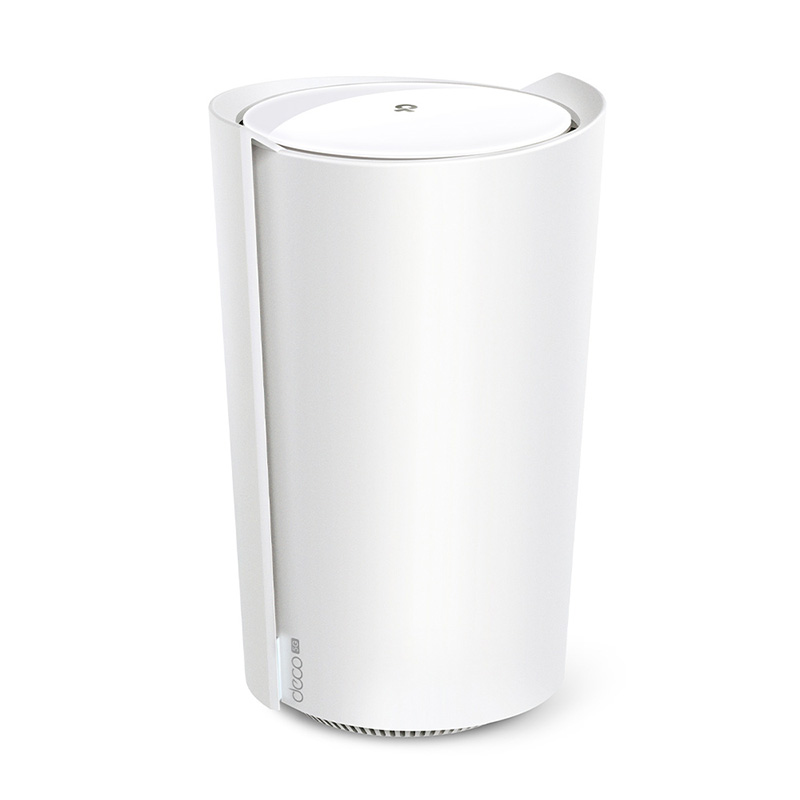

1 Deco X50-5G unit

1 RJ45 Ethernet Cable

1 Power Adapter

Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~60°C (-40°F~140°F)

Operating Humidity: 10%~90%RH

Storage Humidity: 5%~90%RH
