Interface

1× 2.5 Gbps Ethernet Port

Button

Reset

Power Supply

• 802.3at PoE

• 12V/1.5A DC

Note：DC Power adapter is not included. DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length.

Weight

0.47 kg (1.04 lb)

Dimensions ( W x D x H )

6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)

Antenna

• 2.4 GHz: 2 × 4 dBi

• 5 GHz: 3 × 6 dBi

Bluetooth

1 × 4 dBi (peak gain), internal antenna

Mounting

• Ceiling/Wall/Junction Box Mounting (Kits included)

• T-Bar Mounting (Kits included)

Max. Power Consumption

• 15.6 W (PoE)

• 14.1 W (DC)

MANAGEMENT FEATURES

Omada App

Yes (Omada App V5.0 and above)

Centralized Management

• Omada Central (Cloud-Based)

• Omada Hardware Controller

• Omada Software Controller

Cloud Access

Yes. Require the use of an Omada Controller.

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Yes

SSH

Yes

Web-based Management

Yes

WIRELESS FEATURES

Coverage

2,000   ft² (185 m²)*

*Coverage value is calculated based on laboratory testing. Actual coverage is not   guaranteed and will vary as a result of client limitations and environmental factors.

Concurrent Clients

510+**

**The actual capacity depends on the wireless environment and client traffic and is   generally less than the maximum number of client connections.

Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax/be

Frequency

2.4 GHz and 5 GHz

Signal Rate

688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)

Wireless Functions

• MLO*

• 4K-QAM*

• Seamless Roaming

• 160 MHz Bandwidth*

• Mesh**

• OFDMA*

• Load Balance

• Band Steering

• Beamforming

• Airtime Fairness

• Multiple SSIDS:16(8 on each band)

• Wireless Schedule

• Reboot Schedule

• QoS(WMM)

• Rate Limit

• Static IP/Dynamic IP

• Radius Accounting

• MAC Authentication

*Use of Wi-Fi 7 (802.11be),  and features including Multi-Link Operation (MLO), 160 MHz Bandwidth, 4K-QAM, Multi-RUs, and OFDMA requires clients to also support the corresponding features.

**These features require the use of an Omada controller.

Wireless Security

• Captive Portal Authentication*

• Access Control

• MAC Filter

• Wireless Isolation Between Clients

• VLAN

• Rogue AP Detection

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

*These features require the use of an Omada controller.

Transmission Power

7-20 dBm (2.4 GHz, EIRP)

9-24 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP)

9-30 dBm (5 GHz, U-NII-2C, EIRP)

OTHERS

Certification

FCC/CE/VCCI/JRF/ICES

Package Content

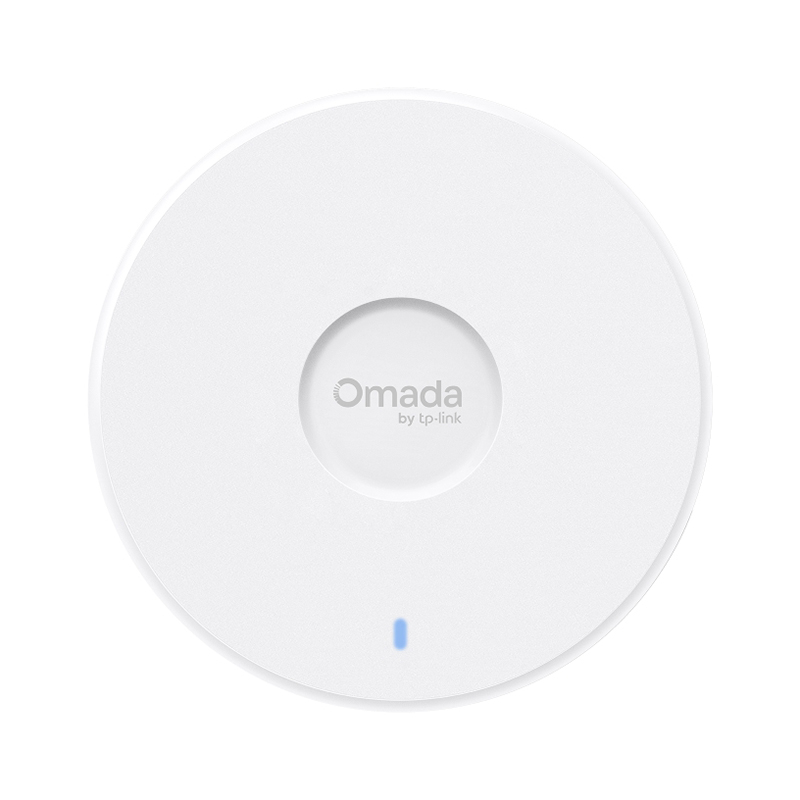

• EAP727

• Installation Guide

• Mounting Kit

Environment

• Operating Temperature: 0℃ to +40℃ (32℉ to +104℉)

• Storage Temperature : -40℃ to +70℃ (-40℉ to +158℉)

• Operating Humidity: 10% to 90% (non-condensing)

• Storage Humidity: 5% to 90% (non-condensing)

• Storage Altitude: up to + 2000 m (6561 feet)

• Operating Altitude: up to + 2000 m (6561 feet)
