Standards and Protocols

IEEE 802.11ax 6 GHz,

IEEE 802.11ax/ac/n/a 5 GHz,

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

AXE5400

6 GHz: 2402 Mbps (802.11ax)

5 GHz: 2402 Mbps (802.11ax)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Range

2-3 Bedroom Houses

6× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM

Improves transmission power to strengthen signal coverage

WiFi Capacity

Very High

Tri-Band

Allocate devices to different bands for optimal performance

OFDMA

Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

DFS

Access an extra band to reduce congestion

6 Streams

Connect your devices to more bandwidth

Working Modes

Router Mode

Access Point Mode

SECURITY

Network Security

SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network

1× 6 GHz Guest Network,

1× 5 GHz Guest Network,

1× 2.4 GHz Guest Network

VPN Server

OpenVPN Server

PPTP VPN Server

L2TP VPN Server

VPN Client

Open VPN Client

PPTP VPN Client

L2TP VPN Client

WiFi Encryption WPA,

WPA2,

WPA3,

WPA/WPA2-Enterprise (802.1x)

HARDWARE

Processor

1.7 GHz Quad-Core CPU

Ethernet Ports

1× Gigabit WAN Port

4× Gigabit LAN Ports

USB Support

1× USB 3.0 Port

Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32

Supported Functions:

Apple Time Machine

FTP Server

Media Server

Samba Server

Buttons

Wi-Fi On/Off Button

Power On/Off Button

LED On/Off Button

WPS Button

Reset Button

Power

12 V ⎓ 2.5   A

SOFTWARE

Protocols

IPv4

IPv6

Service Kits

HomeShield

OneMesh™

OneMesh™ Supported

Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Parental Controls

HomeShield Parental Controls

Custom Profiles

Professional Content Filter Library

Family Time

Bedtime

Off Time

Time Rewards

Family Online Time Ranking

Pause the Internet

Weekly and Monthly Reports

WAN Types

Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service

QoS by Device

Cloud Service

Auto Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

Port Triggering

DMZ

UPnP

Virtual Server

IPTV

IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP

Address Reservation

DHCP Client List

Server

DDNS

TP-Link

NO-IP

DynDNS

Management Features

Tether App

Webpage

OTHER

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications

FCC, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Operating Humidity: 10%~90% non-condensing

TEST DATA

WiFi Transmission Power

FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤22dBm (6 GHz)

CE: ≤17dBm (2.4 GHz), ≤27dBm (5 GHz), ≤20dBm (6 GHz)

WiFi Reception Sensitivity

2.4 GHz:

11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm

11ax HE40 MCS0:-92dBm, 11ax HE40 MCS11:-62dBm

5 GHz:

11ax HE20 MCS0:-94dBm, 11ax HE20 MCS11:-63dBm

11ax HE40 MCS0:-91dBm, 11ax HE40 MCS11:-60dBm

11ax HE80 MCS0:-88dBm, 11ax HE80 MCS11:-57dBm

11ax HE160 MCS0:-85dBm, 11ax HE160 MCS11:-54dBm

6 GHz:

11ax HE20 MCS0:-93dBm, 11ax HE20 MCS11:-62dBm

11ax HE40 MCS0:-90dBm, 11ax HE40 MCS11:-59dBm

11ax HE80 MCS0:-87dBm, 11ax HE80 MCS11:-56dBm

11ax HE160 MCS0:-84dBm, 11ax HE160 MCS11:-53dBm

PHYSICAL

Dimensions (W×D×H)

10.7 × 5.8 × 1.9 in

(272.5 × 147.2 × 49.2 mm)

Package Content

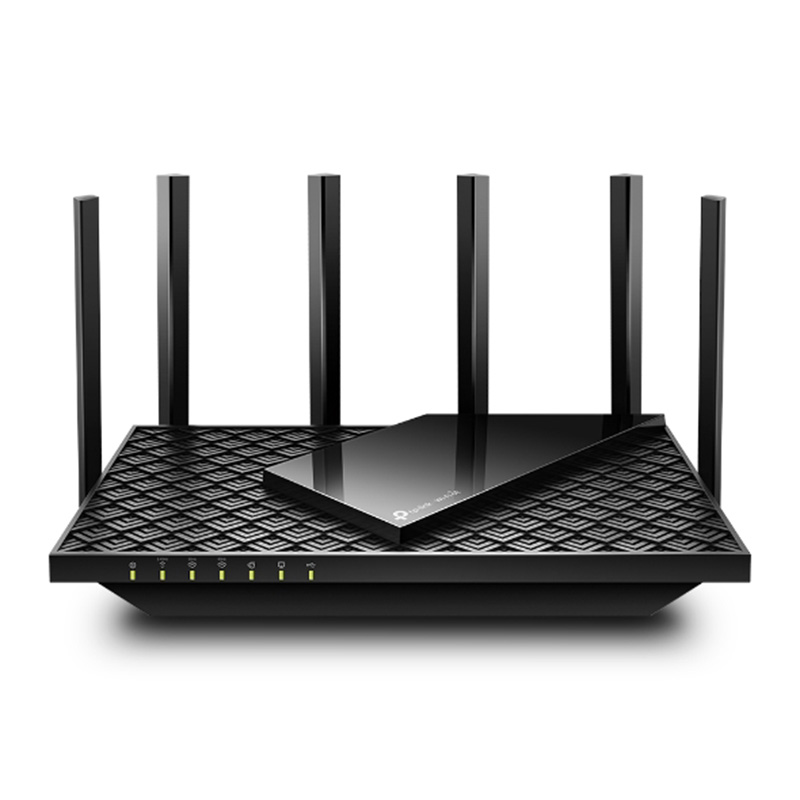

Wi-Fi Router Archer AXE75

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

OTHERS

Notes

Maximum wireless signal rates are the physical rates derived from IEEE Standard   802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.Use of Wi-Fi 6 (802.11ax), Wi-Fi 6E, and features including OFDMA, 1024-QAM, and HE160 require clients to also support the corresponding features. Seven 160MHz channels may not be all available in the 6 GHz band in some regions/countries due to regulatory restrictions.
△Saving clients' battery power requires clients to also support the 802.11ax Wi-Fi standard. Actual power reduction may vary as a result of network conditions, client   limitations, and environmental factors.
*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.
**Use of WPA3 requires clients to also support the corresponding feature.
*** This router may not support all the mandatory features as ratified in IEEE 802.11ax specification.
****Further software upgrades for feature availability may be required.
