4G |
|
Network Type | 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: HSPA+/HSPA/UMTS:B1/B5/B8 (2100/850/900 MHz) |
Speed | Download Speed 150 Mbps Upload Speed 50 Mbps |
SIM Type | 1× Nano SIM Card |
HARDWARE |
|
Interface | 1× 10/100 Mbps WAN/LAN Port (PoE In) 1× Nano SIM Card Slot 1 × DC Port |
Buttons | 1× Reset Button |
Power | 12V/1A 24V/0.5A Passive PoE 44-57V/0.35A 802.3af/at |
Dimensions (W x D x H) | 8.9 x 3.9 x 2.2 in (226.6 x 100x 54.7mm) |
Antennas | 2 × Detachable LTE Antennas |
WIRELESS FEATURES |
|
Wireless Standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz |
Reception Sensitivity | 5 GHz: 11a 54M: -77 dBm 11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm 11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm 11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm 2.4 GHz: 11g 54M: -74.5 dBm 11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm 11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm |
Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
SOFTWARE FEATURES |
|
Quality of Service | WMM, QoS |
Security | DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding |
Operating Modes | 3G/4G Router, Wireless Router |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
Management Features | Access Control, Local Management, Remote Management, Reboot Schedule |
DHCP | Server, DHCP Client List, Address Reservation |
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS | TP-Link DDNS, DynDns, NO-IP |
VPN Pass-Through | PPTP, L2TP, IPSec |
Access Control | Parental Controls, Local Management Control, Host List, Access Control |
Protocols | IPv4, IPv6 |
Guest Network | 2.4 GHz guest network x 1, 5 GHz guest network x 1 |
VPN Server | PPTP VPN, IPSec VPN, OpenVPN |
OTHERS |
|

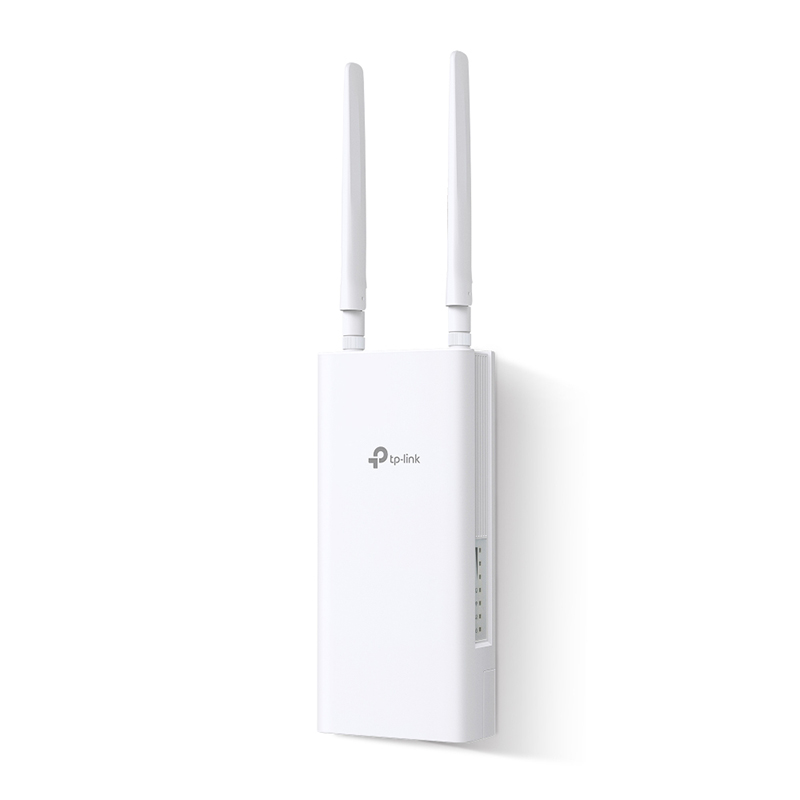

Package Content | 1× AC1200 Wireless Dual Band 4G LTE Outdoor Router Archer MR402-Outdoor 1× 10-meter RJ45 Ethernet Cable 1× PoE Adapter 1× AC Power Cord 1× Quick Installation Guide Window/Pole/Wall Mounting Kits |
Requirements | • Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser *You are recommended to use the latest version • Nano SIM Card |
Certifications | CE, RoHS |
Environment | Operating Temperature: -30°C~60°C (-22°F~140°F) Storage Temperature: -40°C~70°C (-40 °F~158 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
