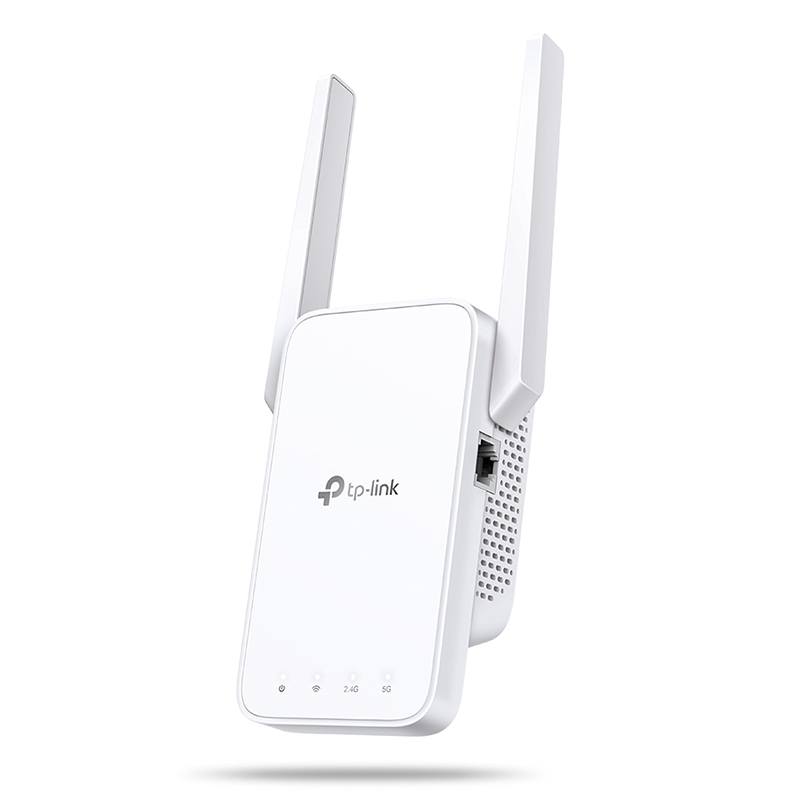

TP-Link AC1200 Mesh Wi-Fi Range Extender (RE315)

Dual‑band Wi‑Fi Range Extender RE315: 2.4 GHz 300 Mbps + 5 GHz 867 Mbps, 2 external antennas, 1 × 10/100 Mbps Ethernet, WPS & Reset buttons, AP/Extender modes, WPA/WPA2 security, web & app management.

TP-Link AC1200 Mesh Wi-Fi Range Extender (RE315)
  • Wireless-Access-Points-WAP-TP-Link-AC1200-Mesh-Wi-Fi-Range-Extender-RE315-6
  • Wireless-Access-Points-WAP-TP-Link-AC1200-Mesh-Wi-Fi-Range-Extender-RE315-2
  • Wireless-Access-Points-WAP-TP-Link-AC1200-Mesh-Wi-Fi-Range-Extender-RE315-3
  • Wireless-Access-Points-WAP-TP-Link-AC1200-Mesh-Wi-Fi-Range-Extender-RE315-4
$74.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Wireless-Access-Points-WAP-TP-Link-AC1200-Mesh-Wi-Fi-Range-Extender-RE315-1



SPECIFICATIONS:

HARDWARE FEATURES


Interface

1 x 10/100Mbps Ethernet Port (RJ45)

Button

WPS Button, Reset Button

Input Power

100-240V~50/60Hz

Max. Power Consumption

9.5W(max power consumption)

Dimensions ( W x D x H )

3.5×1.4×4.9 in. (89×35.0×124.1 mm)

Antenna

2 External Antennas

WIRELESS FEATURES


Wireless Standards

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency

2.4GHz and 5GHz

Signal Rate

300Mbps at 2.4GHz, 867Mbps at 5GHz

Working Modes

Range Extender/Access Point

Reception Sensitivity

5 GHz:

11a 6Mbps: -94dBm

11a 54Mbps: -77dBm

11ac HT20 MCS0: -94dBm

11ac HT20 MCS8: -71dBm

11ac HT40 MCS0: -92dBm

11ac HT40 MCS9: -66dBm

11ac HT80 MCS0: -87dBm

11ac HT80 MCS9: -62dBm



2.4 GHz:

11g 54Mbps: -78dBm

11n HT20 MCS7: -76dBm

11n HT40 MCS7: -74dBm

Wireless Functions

Enable/Disable Wireless Radio

DFS (the latest firmware and hardware version is required)

Access Control

LED Control

Power Schedule

Wi-Fi Coverage

Wireless Security

64/128-bit WEP, WPA/WPA2-PSK/WPA2-PSK2 encryptions

Transmission Power

2.4 GHz ≤20dBm, 5 GHz ≤30dBm

OTHER


Network Services Enabled by Default

Web Server

Manage and configure device through web (HTTP/HTTPS)

• Port: 80/443   Protocol: TCP



DHCP Server

IP address assignment (DHCP)

• Port: 67   Protocol: UDP



App management

Manage and configure device through app

• Port: 20001   Protocol: TCP

• Port: 20002   Protocol: UDP

OTHERS


Certification

CE, RoHS

Package Content

Wi-Fi Range Extender RE315

Quick Installation Guide

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vistaâ„¢ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing




  • Product Name:
    TP-Link AC1200 Mesh Wi-Fi Range Extender (RE315)
  • Model Number:
    RE315
  • Brand:
  • Warranty Period:
    3 Year
