Interface

• 5×10/100/1000Mbps RJ45 Ports

• AUTO Negotiation

• AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

External Power Supply

External Power Adapter(Output: 48VDC / 1.25A)

Packet Forwarding Rate

7.44 Mpps

PoE Ports (RJ45)

• Standard: 802.3 af/at compliant

• PoE Ports: Ports 1–4

• Power Supply: 65 W

Mac Address Table

2K

Jumbo Frame

V5: 16 KB

V6: 9 KB

Switching Capacity

10 Gbps

Dimensions ( W x D x H )

3.9×3.9×1.0 in (99.8×98×25 mm)

Max. Power Consumption

V5:

• 3.44 W (220/50 Hz. no PD connected)

• 74.49 W (220/50 Hz. with 65 W PD connected)

V6:

• 3.44 W (220/50 Hz. no PD connected)

• 74.88 W (220/50 Hz. with 65 W PD connected)

Max. Heat Dissipation

• 11.73 BTU/h (no PD connected)

• 254.01 BTU/h (with 65 W PD connected)

SOFTWARE FEATURES

Advanced Features

• Compatible With IEEE 802.3af/at Compliant PDs

• Mac Address Auto-Learning And Auto-Aging

• IEEE 802.3x Flow Control

• 802.1p/DSCP QoS

• IGMP Snooping

• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data   transmission)

• PoE Auto Recovery (Ports 1-4)

Transmission Method

Store-And-Forward

OTHERS

Certification

FCC, CE, RoHS

Package Content

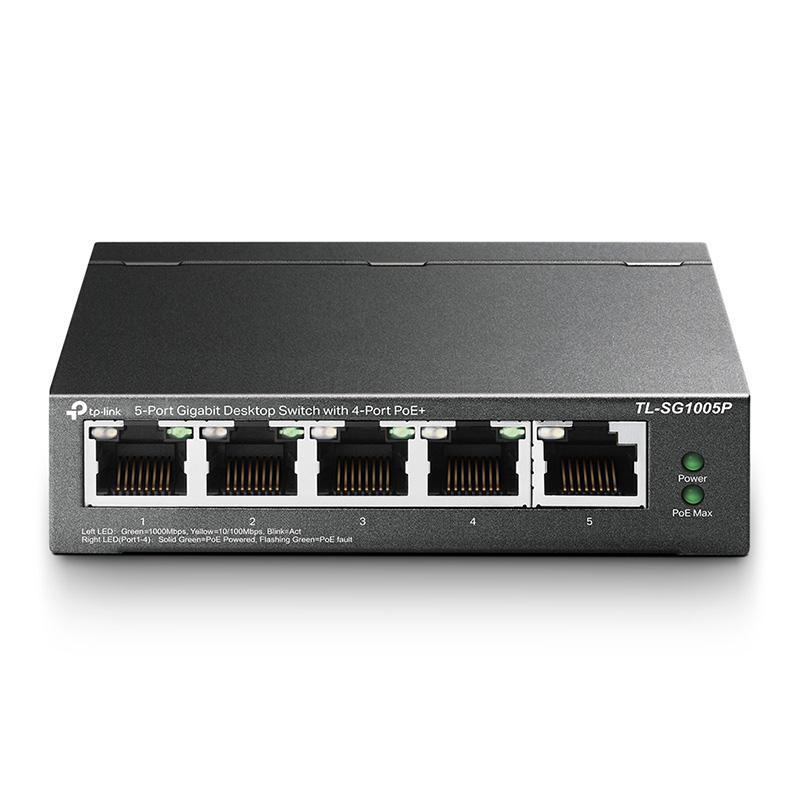

• TL-SG1005P

• Power Adapter

• Installation Guide

• Power Cord

• Rubber Feet

Environment

• Operating Temperature: -5–40 ℃ (23–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
