Interface

1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port, 1 Nano SIM Card Slot

Button

WPS/Reset Button

External Power Supply(EU)

9V/0.85A

Dimensions ( W x D x H )

6.06×4.49×1.42 in ( 154×114×36 mm)

Antenna

2 Detachable External 4G LTE Antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11b/g/n

Frequency

2.4 GHz

Signal Rate

300 Mbps

Reception Sensitivity

11g 54M: -74 dBm

11n HT20: -71 dBm

11n HT40: -68 dBm

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics

WAN Failover

Yes

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Transmission Power

< 20 dBm (2.4 GHz)

Network Type

4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz)

TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)

3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES

Security

IPv4 SPI Firewall, IP and MAC Address Binding

Operating Modes

3G/4G Router, Wireless Router

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management Features

Local Management, Remote Management

DHCP

Server, DHCP Client List, Address Reservation

Port Forwarding

ALG, Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

DynDns, NO-IP

Protocols

IPv4, IPv6

Guest Network

2.4 GHz Guest Network

Administration

Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

OTHER

Network Services Enabled by Default

Web Server

Manage   and configure device through web (HTTP/HTTPS)

• Port: 80/443   Protocol: TCP

DHCP Server

IP address assignment (DHCP)

• Port: 67   Protocol: UDP

DNS

• Port: 53   Protocol: TCP

App management

Manage and configure device through app

• Port: 22   Protocol: TCP

• Port: 20002   Protocol: TCP

CWMP

CPE WAN Management Protocol

• Port: 7547   Protocol: TCP

OTHERS

Certification

CE, RoHS

Package Content

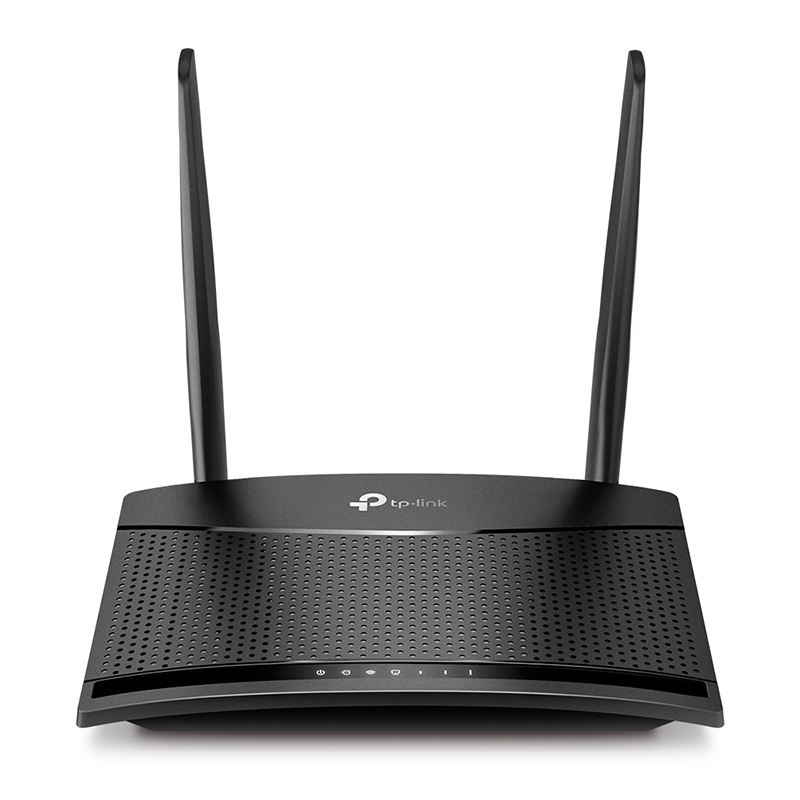

300 Mbps Wireless N 4G LTE TL-MR100

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

Requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled   browser

Nano SIM Card

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
