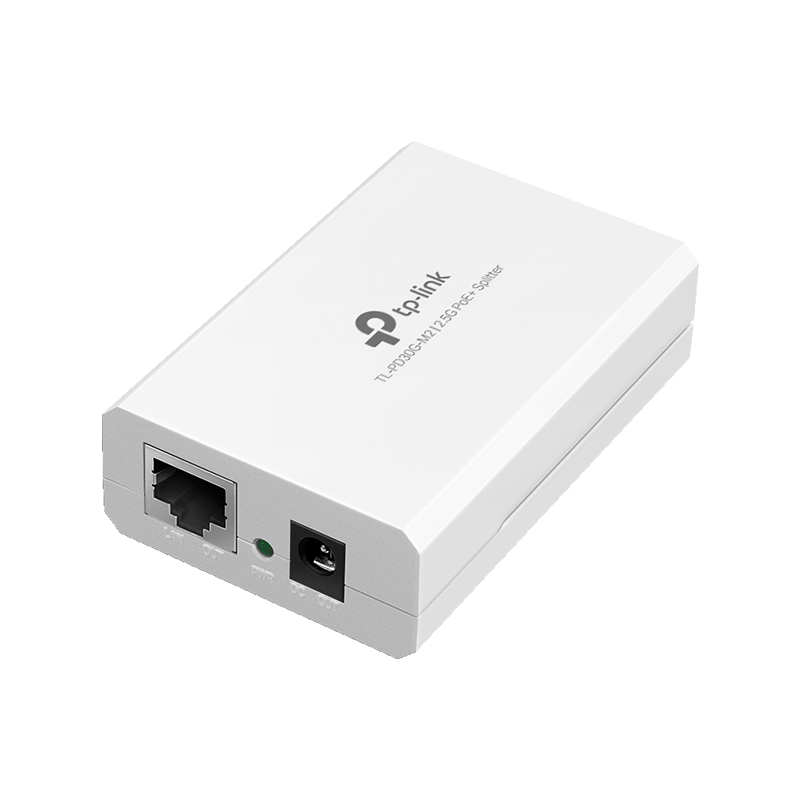

TP-Link 2.5G PoE+ Splitter (TL-PD30G-M2)

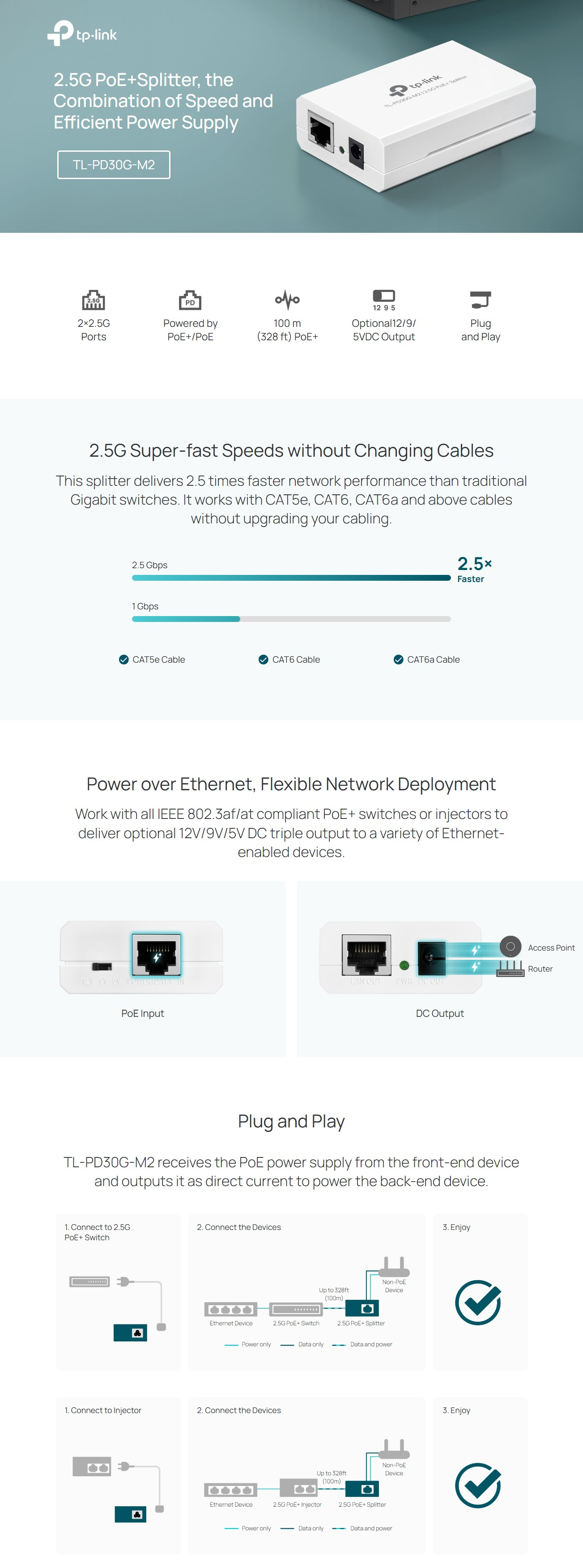

TL‑PD30G‑M2 PoE injector offers 1 × 10/100/1000/2.5 Gbps Power+Data IN, 1 × LAN OUT, and selectable 12 V/9 V/5 V 2 A DC output. IEEE 802.3af/at compliant, delivers power up to 100 m, LED status, FCC/CE/RoHS certified.

TP-Link 2.5G PoE+ Splitter (TL-PD30G-M2)
  • Networking-Accessories-TP-Link-2-5G-PoE-Splitter-TL-PD30G-M2-3
$24.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Networking-Accessories-TP-Link-2-5G-PoE-Splitter-TL-PD30G-M2-1



SPECIFICATIONS:

HARDWARE FEATURES


Interface

1 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 POWER+DATA IN Port

1 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 LAN OUT Port

1 12V / 9V / 5V DC OUT Power Output Port

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5e, 6 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

2.5GBASE-T: UTP category 5e, 6 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Power Supply

12VDC 2A, 9VDC 2A, 5VDC 2A

Basic Function

Compatible with IEEE 802.3af/at compliant PSEs

Delivers power up to 100 meters

Optional 12VDC, 9VDC or 5VDC power supply

LED

ON: Connected to PSE correctly

Off: No PSE is connected

Dimensions ( W x D x H )

3.2*2.1*0.9 in (80.8*54*24 mm)

SOFTWARE FEATURES


Basic Function

Compatible with IEEE 802.3af/at compliant PSEs

Delivers power up to 100 meters

Optional 12VDC, 9VDC or 5VDC power supply

OTHERS


Certification

FCC, CE, RoHS

Package Content

TL-PD30G-M2

Power Cord

Installation Guide

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Environment

Operating Temperature: -5°C~45°C (23°F~113°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90%RH non-condensing

Storage Humidity: 5%~90%RH non-condensing




  • Product Name:
    TP-Link 2.5G PoE+ Splitter (TL-PD30G-M2)
  • Model Number:
    TL-PD30G-M2
  • Brand:
  • Warranty Period:
    3 Year
