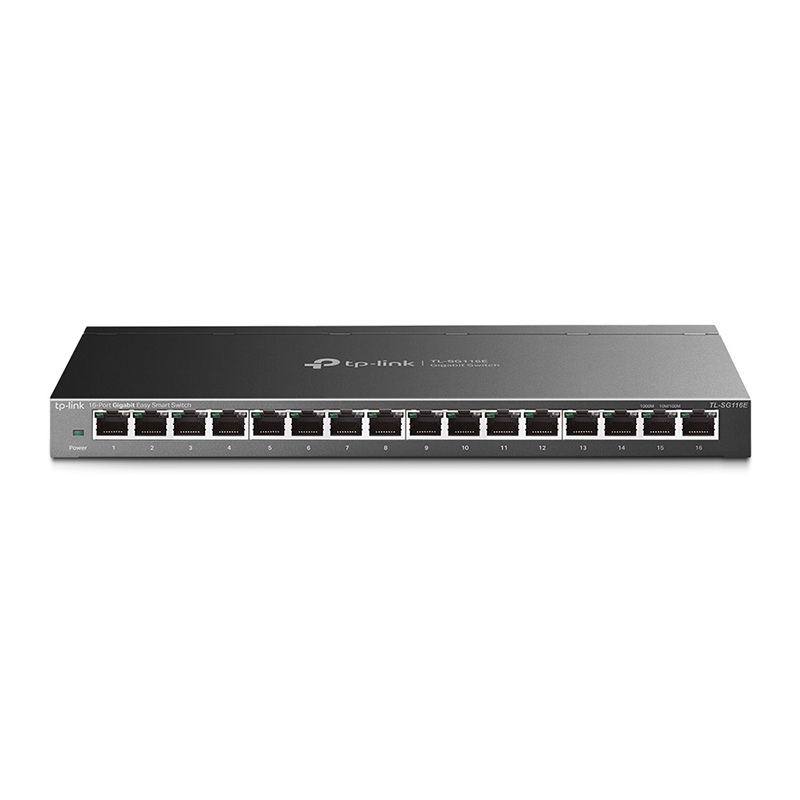

TP-Link 16-Port Gigabit Unmanaged Pro Switch - UN/2.40 (SG116E)

16‑port Gigabit Ethernet fanless switch, 32 Gbps capacity, 23.81 Mpps, 4.1 Mb buffer, 9 KB jumbo frames, QoS (port/802.1p/DSCP, 4 queues, rate‑limit, storm control), IGMP snooping, link aggregation, port mirroring, cable diagnostics, 32 VLANs, FCC/CE/RoHS.

TP-Link 16-Port Gigabit Unmanaged Pro Switch - UN/2.40 (SG116E)
  • Switches-TP-Link-16-Port-Gigabit-Unmanaged-Pro-Switch-UN-2-40-SG116E-8
  • Switches-TP-Link-16-Port-Gigabit-Unmanaged-Pro-Switch-UN-2-40-SG116E-4
  • Switches-TP-Link-16-Port-Gigabit-Unmanaged-Pro-Switch-UN-2-40-SG116E-2
  • Switches-TP-Link-16-Port-Gigabit-Unmanaged-Pro-Switch-UN-2-40-SG116E-3
  • Switches-TP-Link-16-Port-Gigabit-Unmanaged-Pro-Switch-UN-2-40-SG116E-5
  • Switches-TP-Link-16-Port-Gigabit-Unmanaged-Pro-Switch-UN-2-40-SG116E-6
$99.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Switches-TP-Link-16-Port-Gigabit-Unmanaged-Pro-Switch-UN-2-40-SG116E-1




SPECIFICATIONS:

HARDWARE FEATURES


Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface

16 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

Power Supply

External Power Adapter(Output: 12VDC/1.0A)

Dimensions ( W x D x H )

11.3 × 4.4 × 1.0 in. (286 × 111.7 × 25.4 mm)

Max. Power Consumption

9.19W(220V/50Hz)

Max. Heat Dissipation

31.36BTU/h

PERFORMANCE


Packet Buffer Memory

4.1Mb

Jumbo Frame

9KB

Switching Capacity

32Gbps

Packet Forwarding Rate

23.81Mpps

MAC Address Table

8K

SOFTWARE FEATURES


Quality of Service

Support Port-based/802.1p/DSCP priority

Support 4 priority queues

Rate Limit

Storm Control

L2 Features

IGMP Snooping V1/V2/V3

Static Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

VLAN

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN

Transmission Method

Store-And-Forward

OTHERS


Certification

FCC, CE, RoHS

Package Content

TL-SG116E

Power Cord

Installation Guide

Rubber Feet

System Requirements

Microsoft® Windows® for running Utility

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing




  • Product Name:
    TP-Link 16-Port Gigabit Unmanaged Pro Switch - UN/2.40 (SG116E)
  • Model Number:
    SG116E
  • Brand:
  • Warranty Period:
    5 Year
