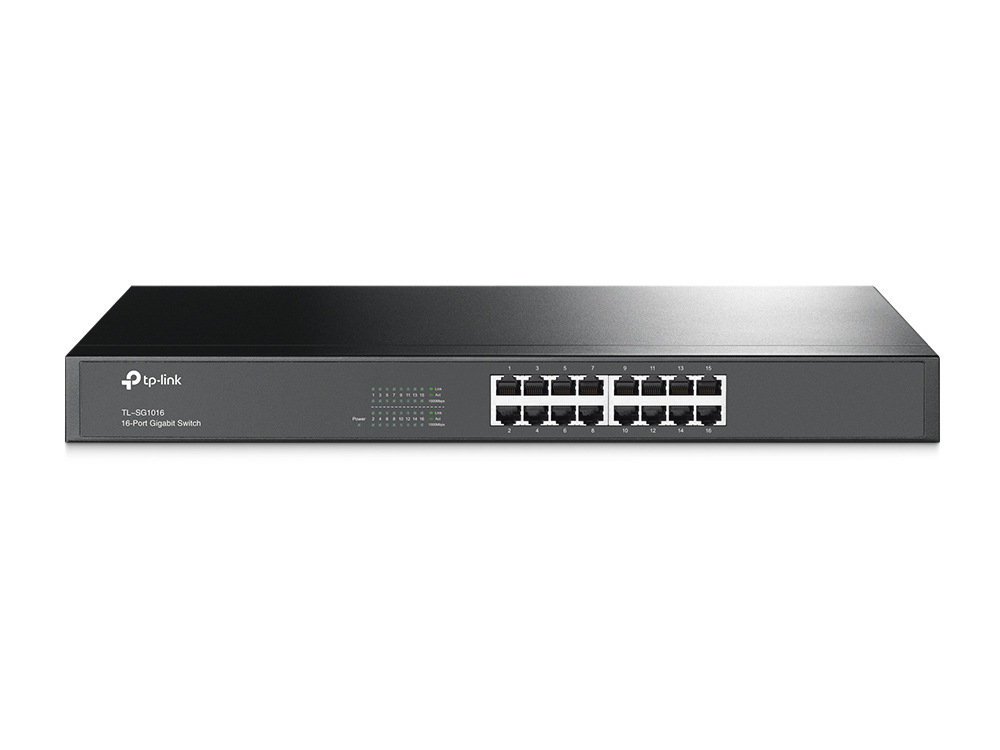

TP-Link 16 Port Gigabit Rack Mountable Switch (TL-SG1016)

16‑port Gigabit unmanaged switch, auto MDI/MDIX, fanless, rack‑mountable steel case, 32β€―Gbps switching, 23.8β€―Mpps, 8K MAC table, 10β€―KB jumbo frames, green energy‑saving design, 3‑year warranty.

TP-Link 16 Port Gigabit Rack Mountable Switch (TL-SG1016)
  • 27107_thumb_P_1563246101252
  • 27107_thumb_P_1563246125900
  • 27107_thumb_P_1563246125981
$99.00 Question Mark
Was: $119.0  WAS Tips    Save $20.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post In Stock
    QLD Pickup
    • Chermside New 2-3 Hours
    • Southport Next Business Day
    • Hillcrest Icon 3 2-3 Hours
    • Brendale 3-4 Hours
    NSW Pickup & Post
    • Post In Stock
    • Villawood Robot Super StoreIcon 3 In Stock
    • West Ryde 2-3 Hours
    • Ultimo 3-4 Hours
    • Auburn 2-3 hours
    • Annandale 3-4 Hours
    • Crows Nest New 3-5 Hours
    • Carlingford New 3-5 Hours
    • Hurstville New 3-5 Hours
    • Mosman New 3-5 Hours
    • Parramatta New 3-5 Hours
    • Goulburn New 1-2 Days
    VIC Pickup & Post
    • Post In Stock
    • Mulgrave Robot Super StoreIcon 3 In Stock
    • Mitcham 1-2 Hours
    • Essendon 3-4 Hours
    • Dandenong South Icon 3 In Stock
    ACT Pickup
    • Fyshwick In Stock
    SA Pickup & Post
    • Post In Stock
    • Croydon Robot Super StoreIcon 3 In Stock
    • Holden Hill 1-3 Hours
    • Adelaide CBD Icon 3 1-3 Hours
    WA Pickup & Post
    • Post In Stock
    • Belmont Robot Super StoreIcon 3 In Stock
    • Balcatta 2-3 Hrs Mon-Fri
    TAS Post
    • Post In Stock
    • Glenorchy

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

TP-Link TL-SG1016 16 Port Gigabit Rack Mountable Switch (Brackets Optional)


The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.


  • 16 10/100/1000Mbps RJ45 ports

  • Innovative energy-efficient technology saves power consumption

  • Supports MAC address self-learning and auto MDI/MDIX

  • Standard 19-inch rack-mountable steel case

TP-Link 16 Port Gigabit Rack Mountable Switch (TL-SG1016)

Specifications


HARDWARE FEATURES

STANDARDS AND PROTOCOLS

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE   802.3x

INTERFACE

16 10/100/1000Mbps RJ45 Ports (Auto   Negotiation/Auto MDI/MDIX)

NETWORK MEDIA

10BASE-T: UTP category 3, 4, 5 cable (maximum   100m)
  100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

FAN QUANTITY

Fanless

POWER SUPPLY

100-240VAC, 50/60Hz

DIMENSIONS ( W X D X H )

17.3*7.1*1.7 in. (440*180*44 mm)

MOUNTING

Rack Mountable

MAX POWER CONSUMPTION

9.26W(220V/50Hz)

MAX HEAT DISSIPATION

31.60BTU/h

PERFORMANCE

SWITCHING CAPACITY

32Gbps

PACKET FORWARDING RATE

23.8Mpps

MAC ADDRESS TABLE

8K

JUMBO FRAME

10KB

QOS

802.1p/DSCP QoS*

  *Only for V12 and later version

GREEN TECHNOLOGY

Yes

TRANSFER METHOD

Store-and-Forward

OTHERS

CERTIFICATION

FCC, CE, RoHS

PACKAGE CONTENTS

16-Port Gigabit Rackmount Switch
  Power Cord
  Installation Guide
  Rackmount Kits
  Rubber Feet

ENVIRONMENT

Operating Temperature: 0℃~40℃   (32℉~104℉);
  Storage Temperature: -40℃~70℃   (-40℉~158℉);
  Operating Humidity: 10%~90% non-condensing;
  Storage Humidity: 5%~90% non-condensing

WARRANTY

Limited 3-Year Warranty

  For further information on our warranty policy please visit:   http://www.tp-link.com.au/support/rma




  • Product Name:
    TP-Link 16 Port Gigabit Rack Mountable Switch (TL-SG1016)
  • Model Number:
    TL-SG1016
  • Brand:
    TP-Link TP-Link
  • Warranty Period:
    3 Year
