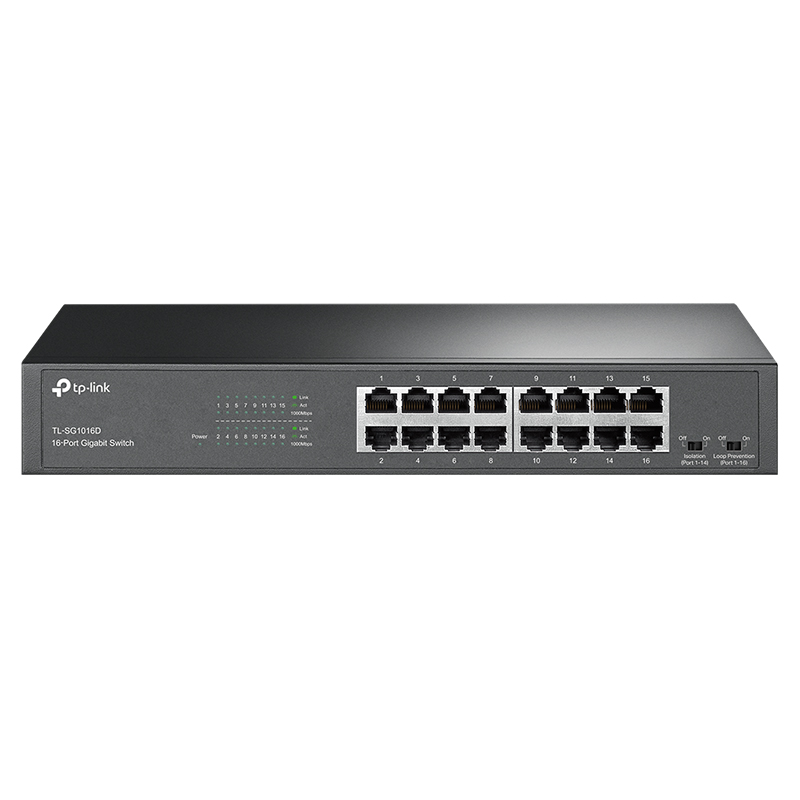

TP-Link 16 Port 10/100/1000 Gigabit Rack Mountable Switch - UN/13.0 (TL-SG1016D UN/13.0)

TP-Link 16 Port 10/100/1000 Gigabit Rack Mountable Switch - UN/13.0 (TL-SG1016D UN/13.0)
  • Switches-TP-Link-16-Port-10-100-1000-Gigabit-Rack-Mountable-Switch-UN-13-0-TL-SG1016D-UN-13-0-3
  • Switches-TP-Link-16-Port-10-100-1000-Gigabit-Rack-Mountable-Switch-UN-13-0-TL-SG1016D-UN-13-0-1
$92.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

TP-Link 16 Port 10/100/1000 Gigabit Rack Mountable Switch
The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption, making it an eco-friendly solution for your business network.


TP-LINK Green Technology

This new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.


High Performance

All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.


Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.


Traffic Separation

Isolation Mode easily divides traffic for specific ports with one click to avoid snooping, tampering and isolation broadcast storm for higher security.


Loop Prevention

Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping.




SPECIFICATIONS:

PERFORMANCE


Advanced Features

Isolation Mode: Ports 1-14

Loop Prevention: Ports 1-16

Jumbo Frame

10KB

Green Technology

Yes

Transmission Method

Store-and-Forward

Switching Capacity

32Gbps

Packet Forwarding Rate

23.8Mpps

MAC Address Table

8K

HARDWARE FEATURES


Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Interface

16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity

Fanless

Physical Security Lock

No

Power Supply

100-240VAC, 50/60Hz

Dimensions ( W x D x H )

11.6 × 5.5 × 1.7 in. (294 × 140 × 44 mm)

Max. Power Consumption

10.68 W (220 V/50 Hz)

Max. Heat Dissipation

36.31 BTU/h

OTHERS


Certification

FCC, CE, RoHs

Package Content

16-Port Gigabit Desktop/Rackmount Switch

Power Cord

Installation Guide

Rackmount Kits

Rubber Feet

Environment

Operating Temperature: 0~40 (32~104);

Storage Temperature: -40~70 (-40~158);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing




  • Product Name:
    TP-Link 16 Port 10/100/1000 Gigabit Rack Mountable Switch - UN/13.0 (TL-SG1016D UN/13.0)
  • Model Number:
    TL-SG1016D UN/13.0
  • Brand:
  • Warranty Period:
    5 Year
