Image Sensor

1/3” CMOS Sensor

Lens

Focal Length: 3.16 mm

Aperture: F1.6

Field of View: 116.7° (Diagonal), 99.7°(Horizontal), 53.8°(Vertical)

Night Vision

850 nm IR LED (98 ft / 29.9 m), color night vision

Interface & Button

1× DC Port

1× Ethernet Port, PoE

1× RESET Button

1× MicroSD Card Slot (Up to 512GB)

1× Nano-SIM Card Slot

Pan/Tilt Range

Pan Mechanical Range: 340° (360° Pan Coverage)

Tilt Mechanical Range: 85°(139° Tilt Coverage)

VIDEO & AUDIO

Maximum Resolution

1920 × 1080 px

Frame Rate

15/20/25/30 fps

Video Compression

H.264

Live View

Yes

Audio Input & Output

Built-in Microphone and Speaker

Audio Communication

Two-Way Audio with Noise Cancellation

Siren Volume

99 dB  (Level measured at   4-inch/10-cm distance)

STORAGE

Local Storage

MicroSD Card Slot on Camera (Up to 512 GB)

Cloud Storage

Tapo Care Cloud Storage Services (Subscription required)

DETECTION And NOTIFICATIONS

AI Detection

Motion Detection

Person Detection

Pet Detection

Vehicle Detection

Tamper Detection

Line-Crossing Detection

Meow Detection

Bark Detection

Glass-Breaking Detection

Activity Zones

Yes

Output Notification

System Notification

System Notification with Snapshot (Tapo Care Services)

NETWORK

Network Connectivity

4G LTE/LAN Cable

RTSP

Yes

ONVIF

YES (Only Available in Ethernet Mode)

4G

Frequency

LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B38/40/41

POWER

Power Source

12V DC Power Adapter

PoE: 802.3 af/at

Input Voltage

100-240 V, 50/60 Hz

Output Voltage

DC Power:12V, 1A

GENERAL

Smart Integration

Google Assistant, Amazon Alexa

Weather Resistance

IP66

System Requirements

Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher

Mounting Options

Ceiling-Mounted

Wall-Mounted

Pole-Mounted (Pole-Mounting loops required but not included)　

Operating Temperature

-30℃~60℃

Storage Temperature

-40℃~60℃

Operating Humidity

10%~90% RH, Non-condensing

Storage Humidity

0~90% RH, Non-condensing

Dimensions ( W x D x H )

Camera Dimensions: 5.15× 3.31×4.57 in (130. 8× 84.0 × 116.1 mm)

Camera Dimensions with included antennas and bracket:

5.5 × 4.03 × 9.22 in (139.8 × 102.3 × 234.2 mm)

Package Content

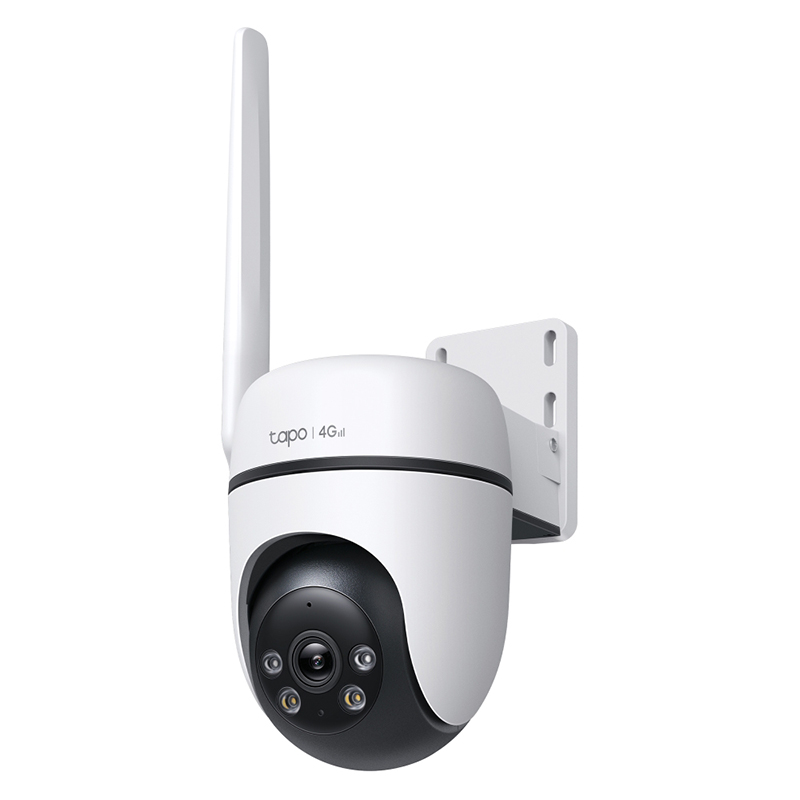

Tapo C501GW Camera

Detachable Antenna

DC Power Adapter

Mounting Template Sticker

Mounting Bracket

Mounting Anchors

Bracket Screws

Mounting Screws

Waterproof Seal

Waterproof Cable Attachments

Quick Start Guide

Certifications

CE,NTRA,RCM,VCCI,NCC,BSMI,ROHS
