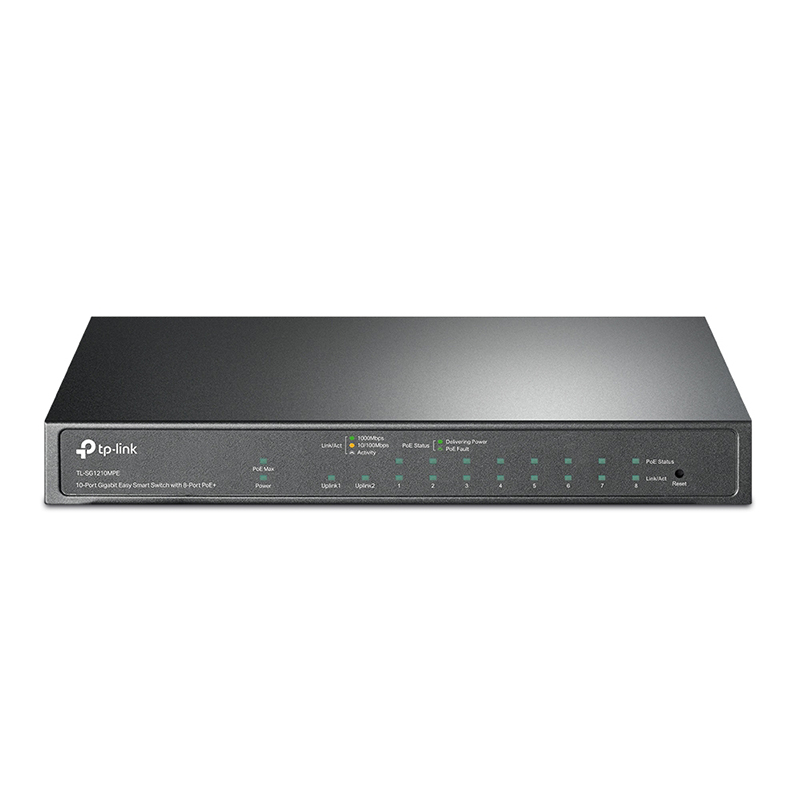

TP-Link 10 Port Gigabit Easy Smart Switch with 8 Port PoE+ - UN/3.40 (TL-SG1210MPE UN/3.40)

TP-Link 10 Port Gigabit Easy Smart Switch with 8 Port PoE+ - UN/3.40 (TL-SG1210MPE UN/3.40)
  • Switches-TP-Link-10-Port-Gigabit-Easy-Smart-Switch-with-8-Port-PoE-UN-3-40-TL-SG1210MPE-UN-3-40-10
  • Switches-and-Sockets-TP-Link-10-Port-Gigabit-Easy-Smart-Switch-with-8-Port-PoE-UN-3-40-TL-SG1210MPE-UN-3-40-3
  • Switches-and-Sockets-TP-Link-10-Port-Gigabit-Easy-Smart-Switch-with-8-Port-PoE-UN-3-40-TL-SG1210MPE-UN-3-40-5
  • Switches-and-Sockets-TP-Link-10-Port-Gigabit-Easy-Smart-Switch-with-8-Port-PoE-UN-3-40-TL-SG1210MPE-UN-3-40-4
  • Switches-and-Sockets-TP-Link-10-Port-Gigabit-Easy-Smart-Switch-with-8-Port-PoE-UN-3-40-TL-SG1210MPE-UN-3-40-7
  • Switches-and-Sockets-TP-Link-10-Port-Gigabit-Easy-Smart-Switch-with-8-Port-PoE-UN-3-40-TL-SG1210MPE-UN-3-40-8
  • Switches-and-Sockets-TP-Link-10-Port-Gigabit-Easy-Smart-Switch-with-8-Port-PoE-UN-3-40-TL-SG1210MPE-UN-3-40-6
$177.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Switches-and-Sockets-TP-Link-10-Port-Gigabit-Easy-Smart-Switch-with-8-Port-PoE-UN-3-40-TL-SG1210MPE-UN-3-40-1
Switches-and-Sockets-TP-Link-10-Port-Gigabit-Easy-Smart-Switch-with-8-Port-PoE-UN-3-40-TL-SG1210MPE-UN-3-40-2



SPECIFICATIONS:

HARDWARE FEATURES


Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,

IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z

Interface

9× 10/100/1000 Mbps RJ45 Ports

1× 1000 Mbps Combo SFP/RJ45 Port

AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

Power Supply

External Power Adapter (Output: 53.5 VDC/2.43 A)

PoE Ports (RJ45)

Standard: 802.3 af/at compliant

PoE Ports: Port 1- Port 8

PoE Power Budget: 123 W

Dimensions ( W x D x H )

8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

Max. Power Consumption

7.66 W (220V / 50Hz with no PD connected)

141.54 W (220V / 50Hz with 123 W PD connected)

Max. Heat Dissipation

26.12 BTU/h (220V / 50Hz with no PD connected)

482.65 BTU/h (220V / 50Hz with 123 W PD connected)

PERFORMANCE


Jumbo Frame

16 KB

Switching Capacity

20 Gbps

Packet Forwarding Rate

14.88 Mpps

MAC Address Table

4 K

SOFTWARE FEATURES


Quality of Service

Support Port-Based/802.1p/DSCP priority

Support 4 priority queues

Rate Limit

Storm Control

L2 Features

IGMP Snooping V1/V2/V3

Static Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

VLAN

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN

PoE

Extend Mode**

PoE Auto Recovery

Management Features

Web-based GUI

Easy Smart Configuration Utility

Transmission Method

Store-And-Forward

OTHERS


Certification

FCC, CE, RoHS

Package Content

TL-SG1210MPE

Power Adapter

Installation Guide

Rubber Feet

System Requirements

Microsoft® Windows® for running Utility

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90%RH non-condensing

Storage Humidity: 5%~95%RH non-condensing




  • Product Name:
    TP-Link 10 Port Gigabit Easy Smart Switch with 8 Port PoE+ - UN/3.40 (TL-SG1210MPE UN/3.40)
  • Model Number:
    TL-SG1210MPE UN/3.40
  • Brand:
  • Warranty Period:
    5 Year
